Post your spark plug photos here

Reply




Old 04-19-05, 08:49 PM
  #1
~17 MPG
Thread Starter
iTrader: (1)

scotty305's Avatar

Join Date: Jan 2004
Location: Bend, OR
Posts: 2,681
Thanked 8 Times in 6 Posts
Post your spark plug photos here

If you've taken photos of your spark plugs after removal, please share them here. Here are some of mine to start:




Engine mileage: 50k , no modifications.
BUR7EQP leading, BUR9EQP trailing. These plugs were used for at least 5000 miles:






Engine mileage: 53.5k , minor modifications (DP)
BR8EIX leading, BR9EIX trailing. After 3500 miles:






Engine mileage: 56.7k , minor mods (DP)
BUR7EQ leading, BUR9EQ trailing. After 3200 miles:


-s-
Attached Thumbnails Post your spark plug photos here-removed-2004-09-22.jpg   Post your spark plug photos here-removed-2004-12-15.jpg
scotty305 is offline
Reply With Quote
Old 04-19-05, 08:54 PM
  #2
The Man
10 Year Member

RTS3GEN's Avatar

Join Date: Aug 2001
Location: Lee's Summit Mo.
Posts: 702
Thanks: 0
Thanked 0 Times in 0 Posts
wow dude, you've got too much time on your hands to document your plug life/performance. I run NGk race 105's and 115s at the track. Use a spark plug cleaner and some brake cleaner about every 1500miles. mine end up lookinng like the first thumbnail of the irridiums!
Art
RTS3GEN is offline
Reply With Quote
Old 04-19-05, 08:58 PM
  #3
2/4 wheel cornering fiend
10 Year Member

Kento's Avatar

Join Date: Nov 2002
Location: Pasadena, CA
Posts: 3,091
Thanks: 0
Thanked 0 Times in 0 Posts
Boy, that's some serious rounding of the electrode edges after only 3200 miles in the bottom photo...
Kento is offline
Reply With Quote
Old 04-19-05, 09:44 PM
  #4
www.silverbulletrx7.com
10 Year Member

Join Date: Feb 2001
Location: Gaithersburg, Md
Posts: 936
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by RTS3GEN
wow dude, you've got too much time on your hands to document your plug life/performance. I run NGk race 105's and 115s at the track. Use a spark plug cleaner and some brake cleaner about every 1500miles. mine end up lookinng like the first thumbnail of the irridiums!
Art
If you think he has too much time on his hands you should take a look at my website. I've been documenting my plug life for years. I have plenty of pictures.
dis1 is offline
Reply With Quote
Old 04-19-05, 09:45 PM
  #5
~17 MPG
Thread Starter
iTrader: (1)

scotty305's Avatar

Join Date: Jan 2004
Location: Bend, OR
Posts: 2,681
Thanked 8 Times in 6 Posts
Yes it is. Here's a photo of the same plugs, before they were installed:




I replaced them with another set of the NGK Iridiums, because of the way the electrodes held up.



I've had them in for 4k miles so far, and the idle is fine. I think I'll keep them for at least 5k. I'd like to try the new RX-8 plugs, but not at $20 per plug.
Attached Thumbnails Post your spark plug photos here-br7eix_bur7eq_comparison.jpg   Post your spark plug photos here-br9eix_3500_miles.jpg
scotty305 is offline
Reply With Quote
Old 04-19-05, 11:08 PM
  #6
Wankel Shmankel
5 Year Member

Join Date: Mar 2005
Location: Oahu (Hawaii)
Posts: 627
Thanks: 0
Thanked 0 Times in 0 Posts
What are feelings regarding the stock vs nonstock plugs?

I always thought it was "recommended" to use plat BUR7EQ leading, BUR9EQ trailing or 9s all around.

Are the br9eix the so-called racing plugs?
POS7 is offline
Reply With Quote
Old 04-20-05, 09:13 AM
  #7
Senior Member
10 Year Member

gcthree's Avatar

Join Date: Mar 2001
Location: Garden City, New York, USA
Posts: 279
Thanks: 0
Thanked 0 Times in 0 Posts
The iridiums, although expensive, are the way to go. Smooths-out the idle, always run clean.
gcthree is offline
Reply With Quote
Old 04-20-05, 10:50 AM
  #8
EFR IWG 8374
10 Year Member

JTurtonRX_7's Avatar

Join Date: Aug 2003
Location: C. Springs
Posts: 638
Thanks: 0
Thanked 0 Times in 0 Posts
These were in for some where from 7-8k miles.

Front Trailing - Front Leading - Rear Leading - Rear Trailing

Name:  sparkplugs016.jpg
Views: 392
Size:  63.4 KB
Name:  sparkplugs015.jpg
Views: 394
Size:  57.2 KB
JTurtonRX_7 is offline
Reply With Quote
Old 04-20-05, 02:34 PM
  #9
aka KingDrunk
5 Year Member

SNracing's Avatar

Join Date: Apr 2003
Location: Atlanta, GA
Posts: 738
Thanks: 0
Thanked 0 Times in 0 Posts
how often do you guys change your plugs?
SNracing is offline
Reply With Quote
Old 04-20-05, 02:42 PM
  #10
~17 MPG
Thread Starter
iTrader: (1)

scotty305's Avatar

Join Date: Jan 2004
Location: Bend, OR
Posts: 2,681
Thanked 8 Times in 6 Posts
dis1 , your site is what inspired me to do this. A forum thread is easier to update.


JTurtonRX_7, how was your idle? Did you notice any change in mileage or performance?

-s-
scotty305 is offline
Reply With Quote
Old 04-20-05, 03:09 PM
  #11
EFR IWG 8374
10 Year Member

JTurtonRX_7's Avatar

Join Date: Aug 2003
Location: C. Springs
Posts: 638
Thanks: 0
Thanked 0 Times in 0 Posts
Ive been doing a ton of stuff to get the idle right so I have no base line for determining if plugs changed anything.

I change my plugs every other oil change, those I posted went like 3 oil changes Oops.

Can anyone tell me anything by how my plugs look?
JTurtonRX_7 is offline
Reply With Quote
Old 04-20-05, 03:42 PM
  #12
resU deretsigeR
5 Year Member

TwinTurbo_SE7EN's Avatar

Join Date: Dec 2004
Location: TN
Posts: 675
Thanks: 0
Thanked 0 Times in 0 Posts
heh, dont have any pics, but mine dont even get a chance to get any build up on them...my new motor has 3500 miles on it and I lost count efter 10 sets.
TwinTurbo_SE7EN is offline
Reply With Quote
Old 04-20-05, 03:56 PM
  #13
Senior Member
10 Year Member

cblake3's Avatar

Join Date: Sep 2001
Location: Plainfield, IL
Posts: 425
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by POS7
What are feelings regarding the stock vs nonstock plugs?

I always thought it was "recommended" to use plat BUR7EQ leading, BUR9EQ trailing or 9s all around.

Are the br9eix the so-called racing plugs?
I second what this guy said. Is it OK to use Iridiums as opposed to the stock BUR7EQ/BUR9EQ?

Anyone have any bad experience using no-stock plugs? I am concerned because of the difference in design. The Iridiums look like conventional plugs, not the kind I have been using in my 7 since day 1.
cblake3 is offline
Reply With Quote
Old 04-20-05, 04:31 PM
  #14
~17 MPG
Thread Starter
iTrader: (1)

scotty305's Avatar

Join Date: Jan 2004
Location: Bend, OR
Posts: 2,681
Thanked 8 Times in 6 Posts
I've heard that the 'flat-face' design of stock plugs was to prevent against flooding in the FC. If that was their primary purpose, then it's redundant and unnecessary. My car has had the "regular-style" plugs for thousands of miles, hot-starts, cold-starts, and hasn't given me any trouble at all.

The BR*EIX electrode obviously holds up better than the BUR*EQ one, whether that's due to the difference in electrode design or material, the end result is that you will have less misfiring as the plugs age. The RX-8 uses a different plug design, it is closer to the BR*EIX plugs than to the OEM 86-95 BUR*EQ plugs. RX-8 plug info here: https://www.rx7club.com/3rd-generation-specific-1993-2002-16/use-rx-8-iridium-plugs-fd-391496/


NOTE: the BR*EIX plugs are not designed for a rotary, so you will need not be able to install them without a thin-walled socket. I don't think this has been mentioned yet. You can buy one (from most rotary tuners who fabricate things, such as http://www.mazdatrix.com/toolmisc.htm ), or grind your own.

-s-
scotty305 is offline
Reply With Quote
Old 04-21-05, 11:27 AM
  #15
bow leggin'
iTrader: (25)

Scrub's Avatar

Join Date: Jul 2002
Location: Delaware
Posts: 6,058
Thanked 1 Time in 1 Post
What happened to the last 2 pages of the Rx-8 plug discussion?
Scrub is offline
Reply With Quote
Old 04-21-05, 11:45 AM
  #16
VIP - Very Irish Person
10 Year Member

tookwik's Avatar

Join Date: Jan 2002
Location: NC State
Posts: 1,458
Thanks: 0
Thanked 0 Times in 0 Posts

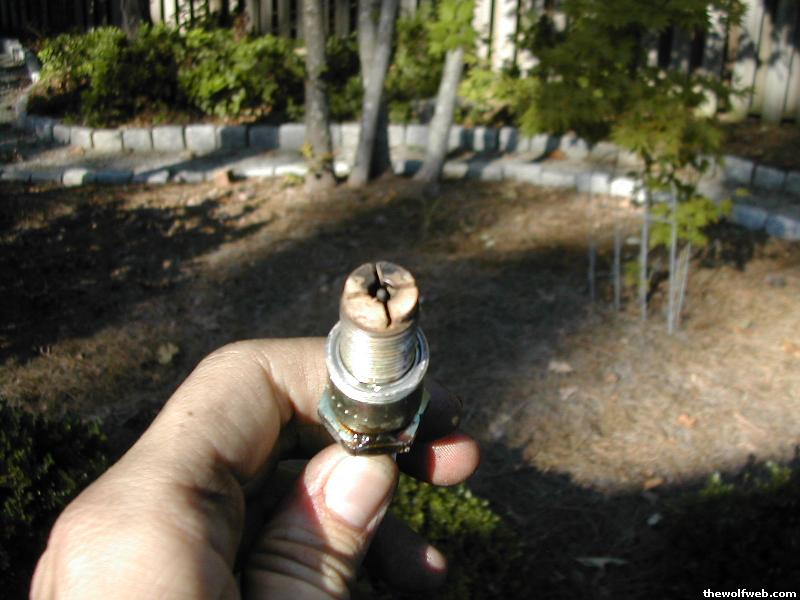

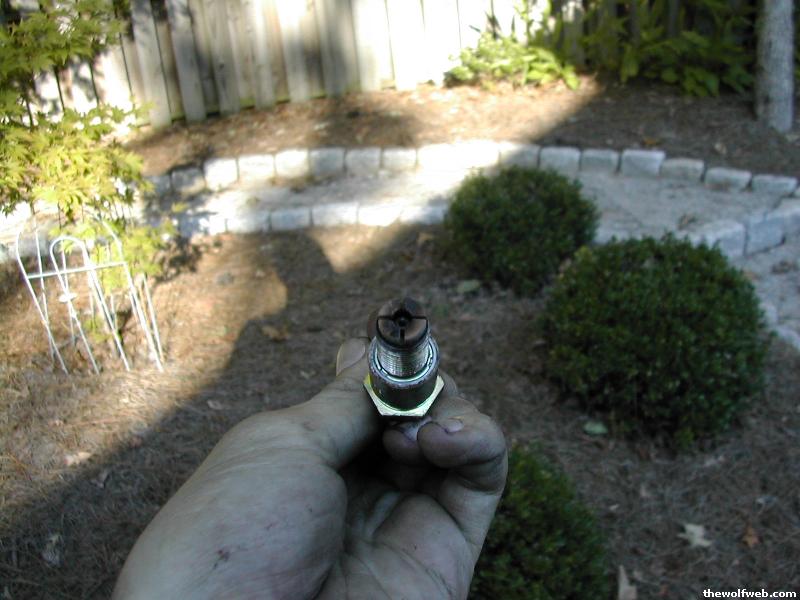

I don't remember which one is which here but one is trailing and one was leading. They were the stock plugs and had been ran for atleast 15k miles. They were on the car when i bought it. One of them was so old that the rod in the middle slid out!

BTW - tell me if the pics don't work


tookwik is offline
Reply With Quote
Old 04-21-05, 04:42 PM
  #17
Call me gramps!

WaLieN's Avatar

Join Date: Jul 2003
Location: Temecula, CA
Posts: 2,334
Thanked 0 Times in 0 Posts
Originally Posted by tookwik
I don't remember which one is which here but one is trailing and one was leading. They were the stock plugs and had been ran for atleast 15k miles. They were on the car when i bought it. One of them was so old that the rod in the middle slid out!

BTW - tell me if the pics don't work


They don't work.
WaLieN is offline
Reply With Quote
Old 09-13-05, 04:17 PM
  #18
~17 MPG
Thread Starter
iTrader: (1)

scotty305's Avatar

Join Date: Jan 2004
Location: Bend, OR
Posts: 2,681
Thanked 8 Times in 6 Posts
I've been using Autolite plugs for the past 1300 miles or so, here are some photos. The equivalent NGK heat ranges should be 8 leading and 10 trailing. These plugs might be a little too cold for a stock motor, but the car idles fine.



The car had been sitting for about a week, and the front leading plug was wet with fuel. Can anyone tell me what would cause this? Leaky injector?





The electrodes seem to be wearing pretty quickly; an iridium electrode would be nice. I reinstalled these plugs, and am hoping to keep them for another 1000 miles or until the idle quality declines.


-s-
Attached Thumbnails Post your spark plug photos here-autolites_1300_miles_2005-08-19.jpg   Post your spark plug photos here-electrodes_1300_miles_2005-08-19.jpg

Last edited by scotty305; 09-13-05 at 04:19 PM.
scotty305 is offline
Reply With Quote
Old 09-27-06, 06:03 PM
  #19
Full Member
5 Year Member

ghost-rider's Avatar

Join Date: Aug 2006
Location: Vancouver, Canada
Posts: 207
Thanks: 0
Thanked 0 Times in 0 Posts
To bring the thread back from the dead...

Can spark plugs cause the car to backfire almost like a gun shot and then stall the car?

How do people insert pictures here?

Last edited by ghost-rider; 09-27-06 at 06:06 PM.
ghost-rider is offline
Reply With Quote
Old 02-12-07, 12:54 PM
  #20
goz
Senior Member
5 Year Member

goz's Avatar

Join Date: Aug 2006
Location: next door
Posts: 340
Thanks: 0
Thanked 0 Times in 0 Posts
i can only get hold of bur9eqp cant get bur7eqp tryed six or seven different places...can i run two bur9eqp...thanks
goz is offline
Reply With Quote
Old 02-13-07, 12:28 AM
  #21
Full Member
5 Year Member

Join Date: Apr 2004
Location: Hawaii
Posts: 64
Thanks: 0
Thanked 0 Times in 0 Posts
how often do u guys change ur plugs??
st8uphiphop is offline
Reply With Quote
Old 10-14-07, 05:15 PM
  #22
Pistons Suck
5 Year Member
iTrader: (2)

OzzManG149's Avatar

Join Date: Jul 2006
Location: Oklahoma
Posts: 470
Thanks: 0
Thanked 0 Times in 0 Posts
maye time to get some trailing plugs. These have about 1500 iles on them.
OzzManG149 is offline
Reply With Quote
Old 10-15-07, 12:20 PM
  #23
Sheriff´s FD

Lawman_AUT's Avatar

Join Date: Sep 2007
Location: austria
Posts: 123
Thanks: 0
Thanked 0 Times in 0 Posts
Wow, your plugs looking terrible.
Mine looked like tookwiks plugs, i also had the same plugs, BUT some previous owner installed NGK BUR9EQP in trailing and leading, so no BUR7EQP has been installed.

My car wont start now, there´s a lot of fuel in the chambers. I will change plugs and cables now, lets see if something changes.

My car is stock, only aftermarket BLITZ exhaust.
And yes, how often do you change your plugs???? Every oilchange seems VERY often for me...

mfg
Andi
Lawman_AUT is offline
Reply With Quote
Old 12-04-11, 04:46 PM
  #24
Full Member

Metan's Avatar

Join Date: Apr 2010
Location: Czech republic
Posts: 153
Thanks: 0
Thanked 0 Times in 0 Posts
changing mine today, all bur9eqp and all the same look, after 7200mile
this is from back housing
Metan is offline
Reply With Quote
Old 12-04-11, 10:07 PM
  #25
Rx-hippie
10 Year Member
iTrader: (1)

trainwreck517's Avatar

Join Date: Sep 2003
Location: Torrance CA
Posts: 2,076
Thanks: 0
Thanked 0 Times in 0 Posts
BUR9EQ all the way around. Picture of two the leading, ~900 miles on the plug (most of it track time).



Still running a bit rich (10.8s ~ 11.0s a/f) under boost.
trainwreck517 is offline
Reply With Quote
