I want to front mount my intercooler but want to see some of the ways u guys have the piping for it,so I have an idea where and how would be the best ways to do it.



I wouldnt mind seeing some pics of some blitz fmic setups, imho blitz is the best looking fmic out there.



NewbernD has a great write-up of the Blitz install process on his website:


More of his install pics here



here is mine



here is mine..... still working on the piping

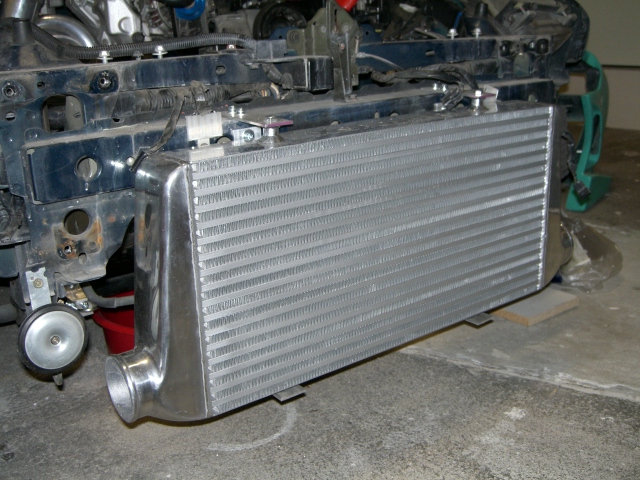

Greddy 3 Row, 4in. Thick

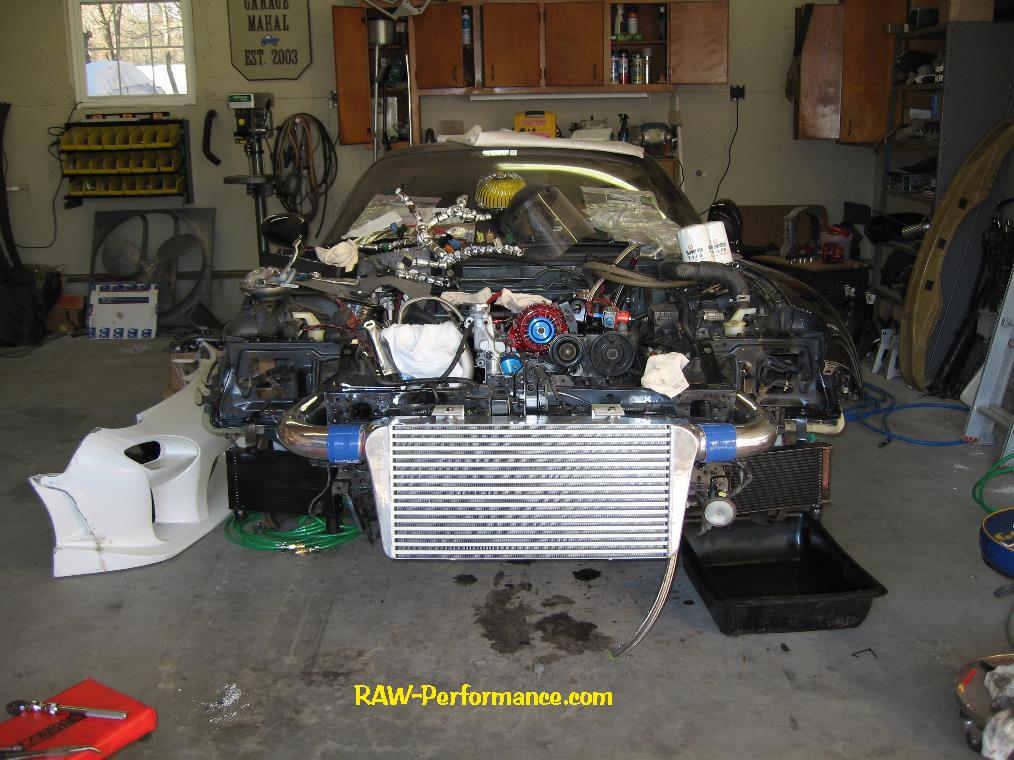

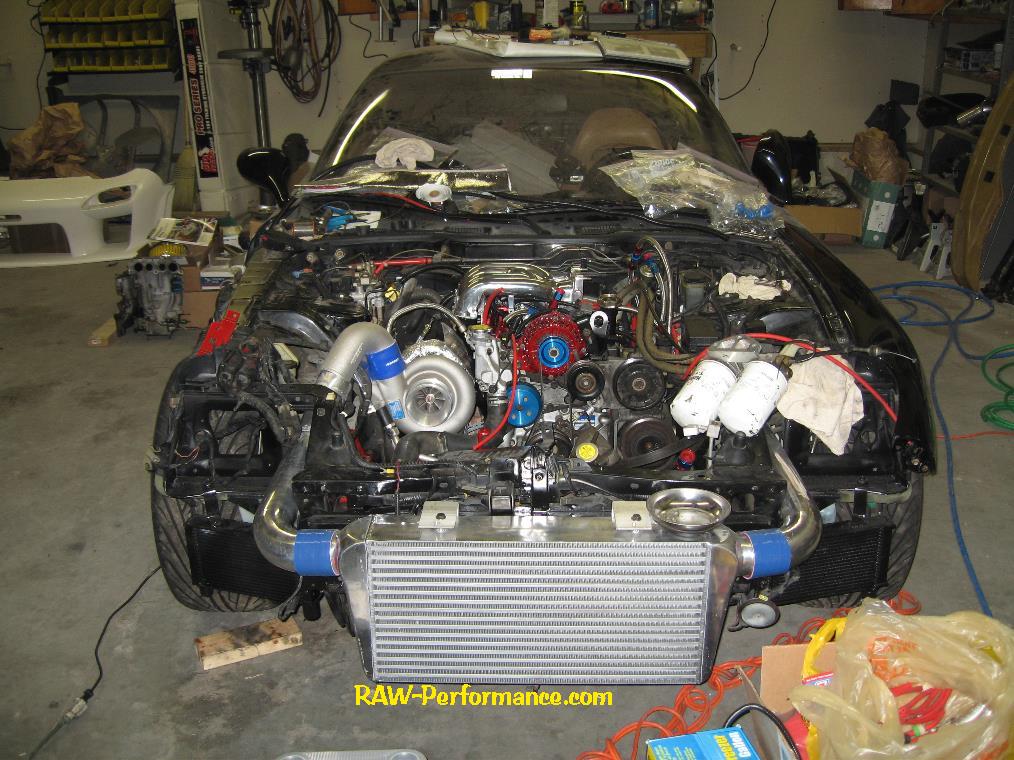

Hers mine with a Greddy T78





Greedy front mount with twins

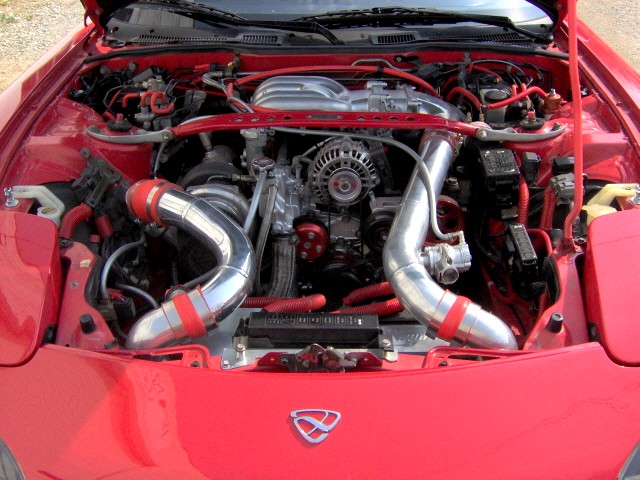

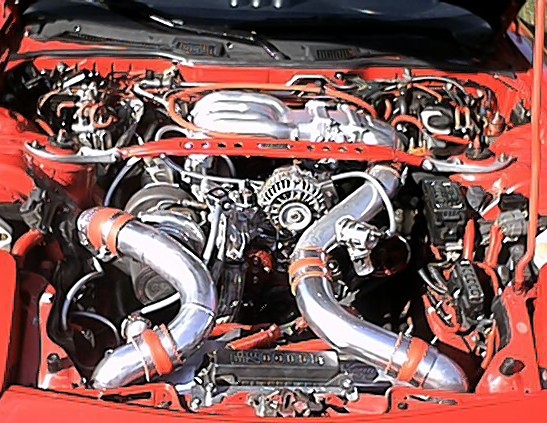

Here are some pics of my Blitz FMIC, as you can see in the second pic I fabricated new piping to eliminate some of the piping. The first pic is with the Blitz and Greddy pipes on the TB side.



Spearco core, custom endtanks, custom piping, and radiator ducting



KaoticFdR1 , all that work and your using screw clamps and ebay couplers? I hope those pipes at least have flanging.



that blue fd is hot!



holy lord thats amazing



apexi weirdo-fin



My old car.



.



Wow!! there are alot of great fmic's out there I feel like mine is just as good as stock now.



lol thats the Kit i got from Jason at rx7store.net
Its a Greddy 3 row...Ebay Couplers?...Greddy piping, those are the clamps the kit came with the t-clamps are on there way to my house...have you ever seen a greddy 3 row kit?

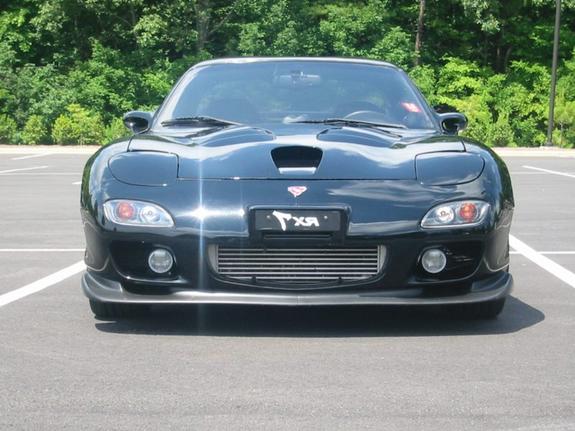

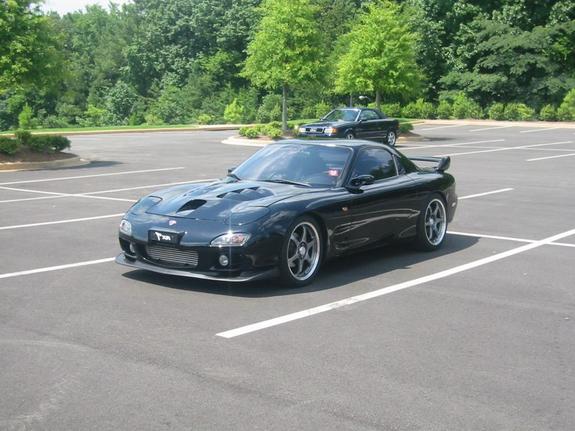

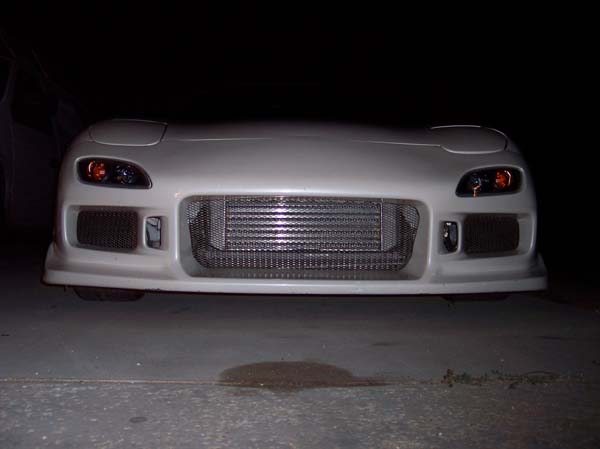

Here are some pics of my old set up..

99 front, Greddy FMIC, 99 fog..





And this is my favorite pic, my car and a local T2



Yes i know i shouldnt block the FMIC but its either that or one of the oil coolers. And in the state of NJ, you have to have a front tag or else you get a ticket.



pffft, screw that, i've never gotten a second look in my fd with no front plate. i keep it in the windshield. except that one time at a roadside inspection....the state trooper was cool about it though...



Get the stock plate bracket from Mazda, it puts the plate above the opening so that airflow isn't blocked.



here are some more pics for your enjoyment....



I'm in love. Quick question though, how did you open up the front bumper like that? I've only seen people do it using some sort of spacer, never stand-alone like in your picture.

-Neal
