Pictures of Pineapple Airpump elimination pulley?
#3
gross polluter
iTrader: (2)
I would guess its a somewhat larger water pump pulley like the Greddy because the stock pulley is prone to slipping with the air pump eliminated. Almost everybody has the Greddy, should be easy to find pics of that.
I searched the pineapple site and cannot find a pulley, are you sure it isnt just the Greddy?
I searched the pineapple site and cannot find a pulley, are you sure it isnt just the Greddy?
#4
Tom,
Pineapple made/makes a replacement idler pulley to take the place of the airpump pulley when it's removed during emissions delete. It maintains full belt contact with the stock waterpump pulley, eliminating slippage without having to oversize. If I have to, I'll get an oversized greddy or rx7store WP pulley, but given that my car doesn't see extended high RPMs (just autoX) and is mostly street driven, I would prefer not to.
Smitter...thanks for nothing cupcake. You don't have many friends...do you.
Pineapple made/makes a replacement idler pulley to take the place of the airpump pulley when it's removed during emissions delete. It maintains full belt contact with the stock waterpump pulley, eliminating slippage without having to oversize. If I have to, I'll get an oversized greddy or rx7store WP pulley, but given that my car doesn't see extended high RPMs (just autoX) and is mostly street driven, I would prefer not to.
Smitter...thanks for nothing cupcake. You don't have many friends...do you.
#5
sleeper
iTrader: (6)
jim,

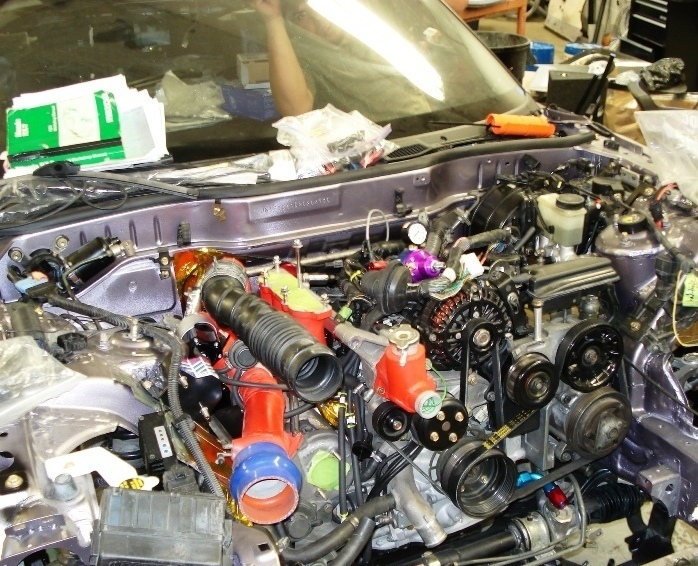

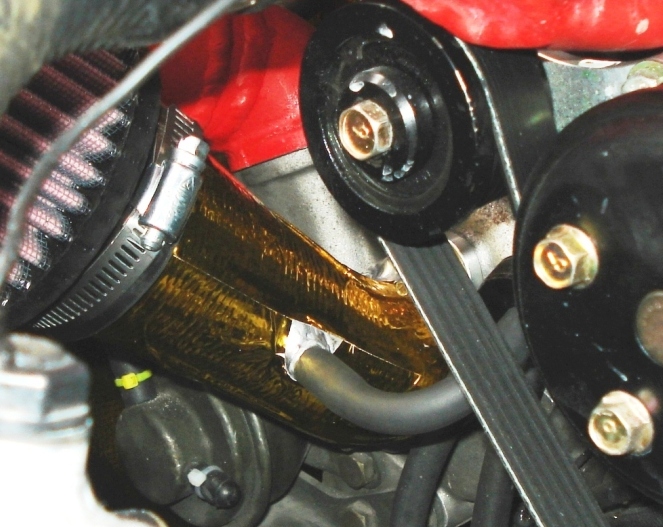

its not the best angle but i believe this is what you are looking for...its called the yoohoo belt. you are right, the greddy belt for airpump elimination is not the best thing to get for street driven cars. most people do not know this, or frankly care. this yoohoo belt is just a 3L220 belt. Which is 3/8 thick, and 22.0 inches long
its not the best angle but i believe this is what you are looking for...its called the yoohoo belt. you are right, the greddy belt for airpump elimination is not the best thing to get for street driven cars. most people do not know this, or frankly care. this yoohoo belt is just a 3L220 belt. Which is 3/8 thick, and 22.0 inches long
#6
sleeper
iTrader: (6)
[QUOTE=Sgtblue;7678040]Tom,
Pineapple made/makes a replacement idler pulley to take the place of the airpump pulley when it's removed during emissions delete. It maintains full belt contact with the stock waterpump pulley, eliminating slippage without having to oversize. [QUOTE]
i was reading somewhere that they did not engineer the belt themselves...a guy from pineapple racing took a belt from a table saw and experimented with it. happened to maintain much better tension, and only cost around 20$. so they made the same size pully and slaped there name on it. i havnt found there price for it yet though. so if its true the pineapple pully can be had for 20$ from a hardware store
Pineapple made/makes a replacement idler pulley to take the place of the airpump pulley when it's removed during emissions delete. It maintains full belt contact with the stock waterpump pulley, eliminating slippage without having to oversize. [QUOTE]
i was reading somewhere that they did not engineer the belt themselves...a guy from pineapple racing took a belt from a table saw and experimented with it. happened to maintain much better tension, and only cost around 20$. so they made the same size pully and slaped there name on it. i havnt found there price for it yet though. so if its true the pineapple pully can be had for 20$ from a hardware store
#7
Rotary Enthusiast
iTrader: (1)
Join Date: Feb 2004
Location: UK
Posts: 899
Likes: 0
Received 0 Likes
on
0 Posts
Hi mate i remember that pulley set up,,,heres the link but the pictures are no longer hosted,,,try contacting the host member he migt still have them.
https://www.rx7club.com/forum/showthread.php?t=411980
https://www.rx7club.com/forum/showthread.php?t=411980
Trending Topics
#10
jim,
its not the best angle but i believe this is what you are looking for...its called the yoohoo belt. you are right, the greddy belt for airpump elimination is not the best thing to get for street driven cars. most people do not know this, or frankly care. this yoohoo belt is just a 3L220 belt. Which is 3/8 thick, and 22.0 inches long
its not the best angle but i believe this is what you are looking for...its called the yoohoo belt. you are right, the greddy belt for airpump elimination is not the best thing to get for street driven cars. most people do not know this, or frankly care. this yoohoo belt is just a 3L220 belt. Which is 3/8 thick, and 22.0 inches long
I emailed Rob at Pineapple, and given the circumstances, he responded pretty quick to tell me that he hopes to have the machinist make up a few of the idler pulleys kits, hopefully next month. I'm keeping my fingers crossed.
Last edited by Sgtblue; 12-30-07 at 07:28 PM.
#11
What's your point ?
Join Date: Feb 2001
Location: Gainesville, Fla.
Posts: 3,573
Likes: 0
Received 0 Likes
on
0 Posts
Some people want a little more surface contact area on the belt than what you have by just putting a shorter belt on a stock water pump pulley, while the under drive pulley helps it's marginal at best.
#13
94 Single Turbo FD
Join Date: May 2006
Location: Calgary, Alberta, Canada
Posts: 1,418
Likes: 0
Received 0 Likes
on
0 Posts
i simply asked wtf.........like what the **** is that?
let me rephase it for all the church goers on the forum...
"I have never seen this item u speak of. do tell me more about it.
i thought a gentlemen like yourself would maybe consider removing the airpump and fetching a shorter belt"
is that better reverend?
ease up a little muffin & praise the lord
Last edited by Smitter; 12-30-07 at 09:34 PM.
#14
Archdandy
iTrader: (1)
Join Date: Mar 2006
Location: Predominantly educated metropolitan area
Posts: 550
Likes: 0
Received 3 Likes
on
2 Posts
The pineapple air pump pulley was a great idea that didnt get proper coverage here on the forum. The greddy, rx7 store, gotham, and ebay pulley kits arent really that great in my opinion. The reason is firstly they are race inspired parts that under drive your water pump and alternator. This is fine if your car sees 8k all day long because it wont wear those parts out as fast. However for street cars, your alternator at idle isnt charging at full capacity, and your waterpump isnt spinning as fast. Both are questionable to me. Then there is the issue of how there is almost the smallest amount of belt contact possible on your waterpump with those kits. That is a bad thing for high rpms. With cars that have those kits on them you can just about turn the water pump by hand with the belt tight. The pulley that is on the waterpump on those kits also has ridges on it that wear your belts out faster. Another bad thing. Rob at pineapple no longer produces those pulley kits as of the last time i asked him about it. He said he had a hard time selling them because of the greddy pulley kits and such. Perhaps we should start an interest in them to get him to do another run. I would be interested in one. I have a gotham pulley kit and dont want to run it on my new rebuild as i was unimpressed due to the reasons stated above. Oh and for those who say to just tighten the belt more. It makes water pumps wear out super fast.
--Hank
--Hank
#16
What's your point ?
Join Date: Feb 2001
Location: Gainesville, Fla.
Posts: 3,573
Likes: 0
Received 0 Likes
on
0 Posts
Bracing on both sides of the bracket was one of my concerns over a pulley being sold by another forum member. It seems like there would be some deflection/misalignment without both.
I didn't know you made them for others. You don't happen to have one sitting on the shelf do you?
I didn't know you made them for others. You don't happen to have one sitting on the shelf do you?
#17

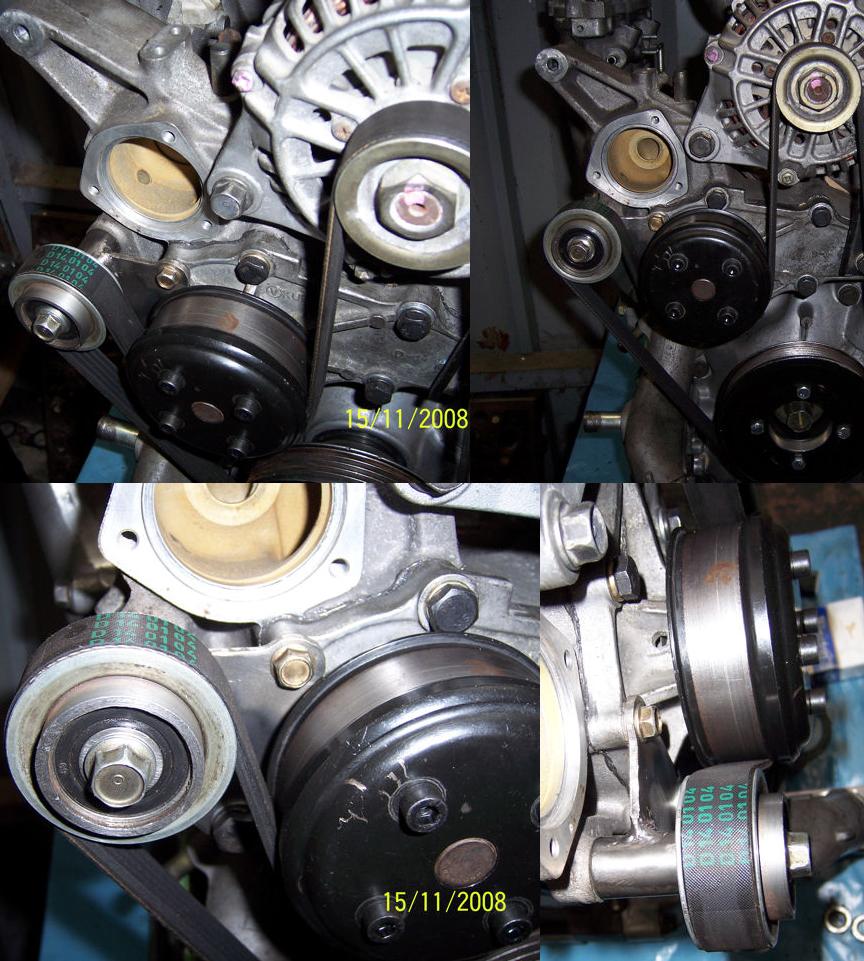

I didn't pay much attention when I uploaded those pictures, but that was the setup configuration, and i have since braced it on both sides and will post a completed picture later. I had a bracket scrapped from a piece of equipment at work that I used to fabricate the one you see.
#19
I have the Pineapple Pulley kit, I picked it up used off the forums. It is a very very nice piece. I talked to someone at Pineapple and they said the price of the kit was more to do with the bearing in the pulley, and low CNC machining volume that made them so expensive. I remember him also saying that with enough interest they would possibly be persuaded to making them again
#25
T O R Q U E!
iTrader: (24)
I made a quick commentary on it (/w pics) in this thread: https://www.rx7club.com/3rd-generation-specific-1993-2002-16/fd-pineapple-racing-idler-pulley-install-notes-warning-798406/
