The "perfect 10-8-10 boost pattern" is a myth!
12-15-10, 10:00 AM
#1
The "perfect 10-8-10 boost pattern" is a myth!
Ok let me preface by saying that we don't 100% understand every bit of the design of the sequential turbos' design. I have been studying it carefully because that kind of thing interests me. Recently I made a thread which uncovered new information about the way the primary and secondary turbos behave during the turbo transition. https://www.rx7club.com/3rd-generation-specific-1993-2002-16/mazda-fds-compressor-surge-factory-933909/ A while back I also put together a long explanation of the sequential turbo system which I now realize is in need of revision.
There are still a few FD's out there that are running properly and are barely modified. Some of these owners have posted on here worrying about their boost hitting 12psi in the mid rpm range. I have in the past told them not to worry about it and in light of this information I will continue to say so. Now, the idea that a healthy stock series 6 FD boosts with a 10-8-10 pattern has been around since before my time and I'm not entirely sure where it came from. I've been questioning this lately though based on documentation we have from Mazda.
According to Tashima et. al, "Sequential Twin Turbocharged Rotary Engine of the Latest Rx-7" 1994, a stock Series 6 REW hits nearly 12psi in Mazda's own testing. So here is a proper boost curve for a series 13B-REW according to Mazda engineers:

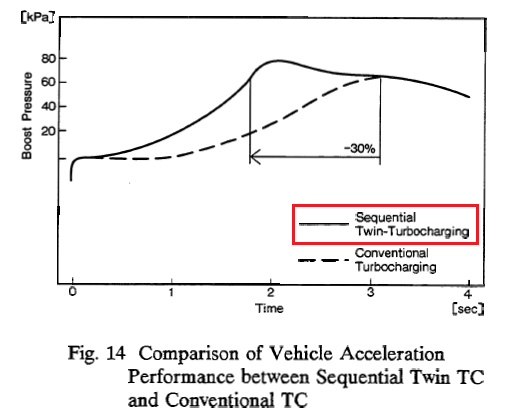

The solid line shows a boost pressure pattern on the production series 6 REW with sequential twin turbos. We don't know the exact test conditions, but in the graph the peak boost reaches or even exceeds 80 kPA (11.5psi). The hashed line shows the boost pattern on a prototype engine with a single turbo, probably a modification of the twin scroll/divided design used in Series 5 FC3S turbo engines. So for those of you wondering why they didn't use a single turbo (given the design/budget constraints on the engine), there's your answer.

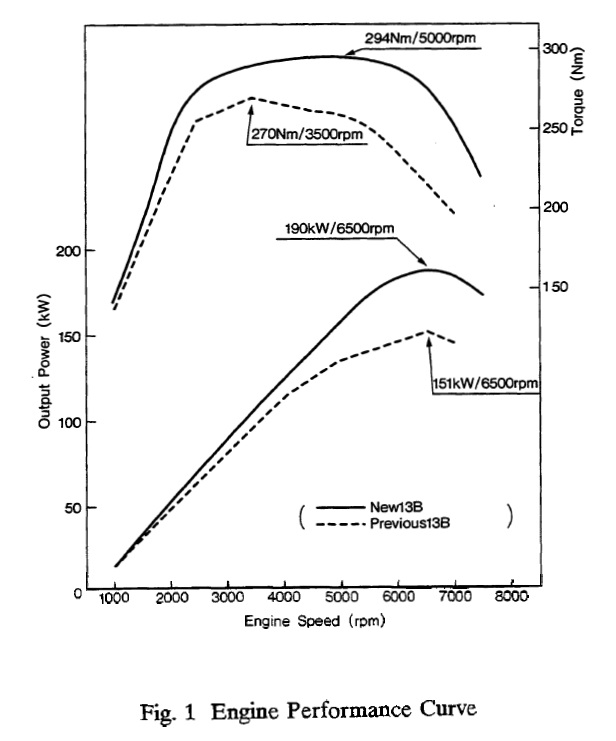

This control logic allowed Mazda to achieve the following power and torque curve:
solid line is production series 6 REW with sequential twin turbos, hashed line is series 5 turbo engine with divided twin scroll single turbo
There are still a few FD's out there that are running properly and are barely modified. Some of these owners have posted on here worrying about their boost hitting 12psi in the mid rpm range. I have in the past told them not to worry about it and in light of this information I will continue to say so. Now, the idea that a healthy stock series 6 FD boosts with a 10-8-10 pattern has been around since before my time and I'm not entirely sure where it came from. I've been questioning this lately though based on documentation we have from Mazda.
According to Tashima et. al, "Sequential Twin Turbocharged Rotary Engine of the Latest Rx-7" 1994, a stock Series 6 REW hits nearly 12psi in Mazda's own testing. So here is a proper boost curve for a series 13B-REW according to Mazda engineers:
The solid line shows a boost pressure pattern on the production series 6 REW with sequential twin turbos. We don't know the exact test conditions, but in the graph the peak boost reaches or even exceeds 80 kPA (11.5psi). The hashed line shows the boost pattern on a prototype engine with a single turbo, probably a modification of the twin scroll/divided design used in Series 5 FC3S turbo engines. So for those of you wondering why they didn't use a single turbo (given the design/budget constraints on the engine), there's your answer.
This control logic allowed Mazda to achieve the following power and torque curve:
solid line is production series 6 REW with sequential twin turbos, hashed line is series 5 turbo engine with divided twin scroll single turbo
12-15-10, 10:01 AM
#2
Here's another major piece of evidence showing that 10-8-10 is not always the only "correct" boost pattern:
This is a chart from the workshop manual which among other things shows the overboost fuel cut logic. The chart could be interpreted in a number of ways, but one thing is indisputable--the engine is allowed to exceed 182.5 kPA absolute pressure (12psi). Now if your car boosts 10-8-10, that necessarily doesn't mean there's something wrong with it. I won't pretend to understand every little thing about the control logic for the sequential twins--it's more complex than anyone realized. We know that the control logic can vary with gear, throttle, and rpm:
But if your stock mildly modified engine hits 12psi and tapers downward, that doesn't automatically mean there's anything wrong with it either. It may be working just fine.
This is a chart from the workshop manual which among other things shows the overboost fuel cut logic. The chart could be interpreted in a number of ways, but one thing is indisputable--the engine is allowed to exceed 182.5 kPA absolute pressure (12psi). Now if your car boosts 10-8-10, that necessarily doesn't mean there's something wrong with it. I won't pretend to understand every little thing about the control logic for the sequential twins--it's more complex than anyone realized. We know that the control logic can vary with gear, throttle, and rpm:
But if your stock mildly modified engine hits 12psi and tapers downward, that doesn't automatically mean there's anything wrong with it either. It may be working just fine.
12-15-10, 01:46 PM
#6
2900 RPM - 10 psi
4500 RPM - 8 psi
4550 RPM -10 psi
*but* in a 100% stock car (and I mean 100% no DP or anything)
6500 RPM - 8 psi until redline
Now I'm working off memory from what I read and from my own setup (10 years ago) so don't hold me to the exact RPM.
