rovers

iTrader: (2)

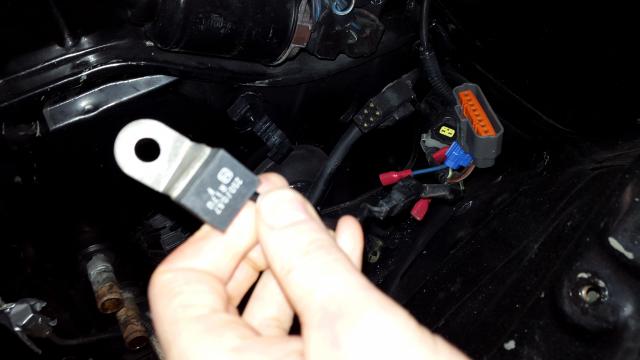

Hi guys, What is this part called and what does it do?
Located next to the igniter.

tt7hvn

iTrader: (5)

In the parts manuals it's referred to as the condenser. But basically, it's a resistor.

It's used for proper operation of the tachometer.

K-Tune

iTrader: (26)

It's possibly for RF noise suppression. Mine is missing, and i dont plan to replace it.

j9fd3s

iTrader: (3)

it is a condenser, it is meant to damp any RF or voltage spikes

rovers

iTrader: (2)

Thanks guys. Im removing the igniter so this will go to.

RENESISFD

iTrader: (13)

IIRC the main purpose of that part is to suppress RF noise that would be transmitted through the radio.

rovers

iTrader: (2)

Then its totaly useless to me.. Who needs radio when u got a halfbridge with titaniumexhaust

tt7hvn

iTrader: (5)

I wouldn't throw it away until you're positive you don't need it.

I posted that is was for tach signal because I found a thread about this same thing and Banzai Racing said it was for that.

Sooooo, who knows? Trail and error.

rovers

iTrader: (2)

Well I shall try and see.

wstrohm

"Condenser" = capacitor, not resistor.

tt7hvn

iTrader: (5)

kind of interesting that either a capacitor, or a resistor for that matter, would only have 1 wire going to it.

Unless it's providing whatever capacity it is being used, to ground.

RENESISFD

iTrader: (13)

^ The tab that secures it to the chassis is the ground.

tt7hvn

iTrader: (5)

^ Exactly. So it's providing whatever function, to ground.

j9fd3s

iTrader: (3)

that is how it damps the voltage spikes
