Hi all, I was wondering if you could help me out. I'm trying to install the OEM dual oil coolers and I've searched but couldn't find the answer.

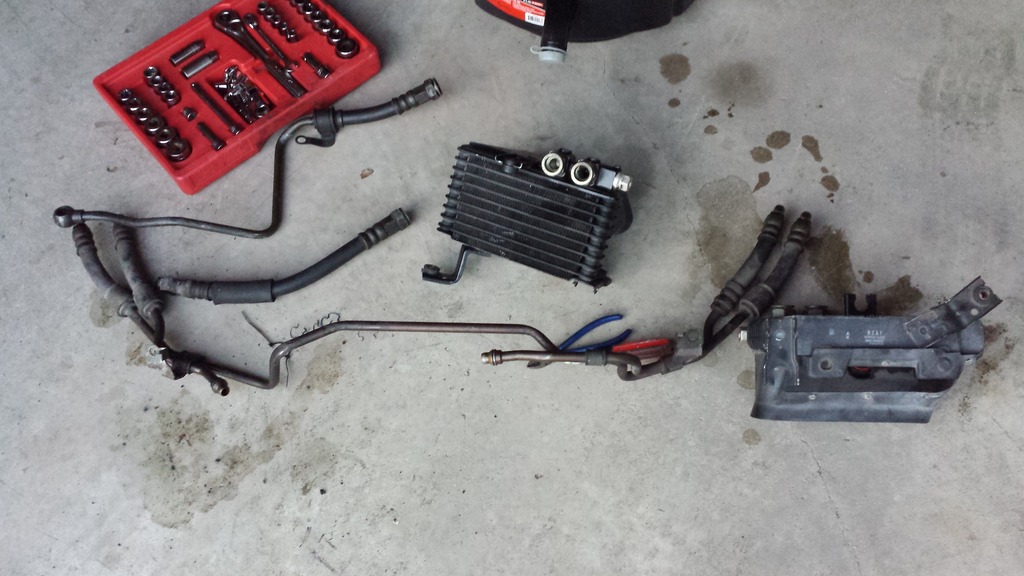

Is all that I received so I assume I need new gaskets. Looking at
Which part numbers will I need? 99582-2200 and 14-6041? And what quantity? Also, the little retainer clips seen here
Do I just slip the male end into the female end and put the spring clip in the grooves to hold the lines in place?
Thanks everyone!
Is all that I received so I assume I need new gaskets. Looking at
Which part numbers will I need? 99582-2200 and 14-6041? And what quantity? Also, the little retainer clips seen here
Do I just slip the male end into the female end and put the spring clip in the grooves to hold the lines in place?
Thanks everyone!
#2
Full Member
iTrader: (1)
That is exactly right with the clips. It slides into the slot on the female end. What you will need is the rubber washers for the fittings that go from the lines into the oil coolers and new crush washers for the banjo bolts that go into the motor. When I installed mine I actually retained the oem line that went to the back of the motor cause it's the same for both single and dual. You just unclip the fittings with a pick tool or small flathead and put the dual one on.
You don't want to reuse those crush washers for the banjo bolts or you will have leaks. If you do what I did for the rear motor line you would only need to do the banjo bolt that goes into the front cover.
You don't want to reuse those crush washers for the banjo bolts or you will have leaks. If you do what I did for the rear motor line you would only need to do the banjo bolt that goes into the front cover.
#3
Full Member
iTrader: (1)
99582-1800 x 2 (or x 4 if you are replacing the factory line 14-7201 in the illustration with the one from the dual setup. But its the same exact line you already have so its easier just to unclip the single oil cooler line and snap in the dual oil cooler line.)
Last edited by RobertC; 05-01-15 at 08:34 PM.
#4
Full Member
iTrader: (1)
Strike that. You do not need the 14-702 part numbers (rubber washers for the oil coolers to the lines) if there are no leaks when you get it installed from that point, you are good! Just the copper crush washer for the banjo bolts and it looks like you have everything, you will need 6 spring clips if you have all that, you are good to go and you could always reuse the clips off your old setup to help you save a little
#5
Point of interest. . .If you don't know the history and condition of the coolers you are installing, you might want to have them rebuilt prior to installation. I think American Cooler Service in Texas still does these. They did mine back in 2007 and made them like new.
#7
Full Member
iTrader: (1)
Yes. There are no washers or o rings that I remember on the male/female line fittings. The only places where there are orings or washers are at the contact between the fittings on the oil coolers themselves (those fittings haven't been removed so you're good there). And the banjo bolts.
I learned the hard way to always replace the washers on those when you take it off or anything. Otherwise you will have problems with leaking.
I learned the hard way to always replace the washers on those when you take it off or anything. Otherwise you will have problems with leaking.
