number 3 fan relay

does anyone have a picture of the number 3 fan relay , looking at the relays from the left front fender looking at them mounted which one is it in the mounting bracket? this should be the relay the block switch turns on
Reply
Old Sep 14, 2009 | 08:58 PM
  #2
twisted7's Avatar
Jake
Tenured Member 15 Years
iTrader: (3)

Joined: Aug 2005
Posts: 982
Likes: 0
From: Columbus
cant you just look at the wiring diagram and see the color wire coming from relay 3? I would help you out but i got rid of mine.
Reply
Old Sep 14, 2009 | 09:42 PM
  #3
BlueMx5's Avatar
Thread Starter
Full Member
Tenured Member: 15 Years
iTrader: (4)

Joined: Feb 2007
Posts: 193
Likes: 1
From: South NJ
wirind diagram colors do not match?
Reply
Old Sep 15, 2009 | 12:32 AM
  #4
arghx's Avatar
rotorhead
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Aug 2004
Posts: 16,205
Likes: 461
From: cold

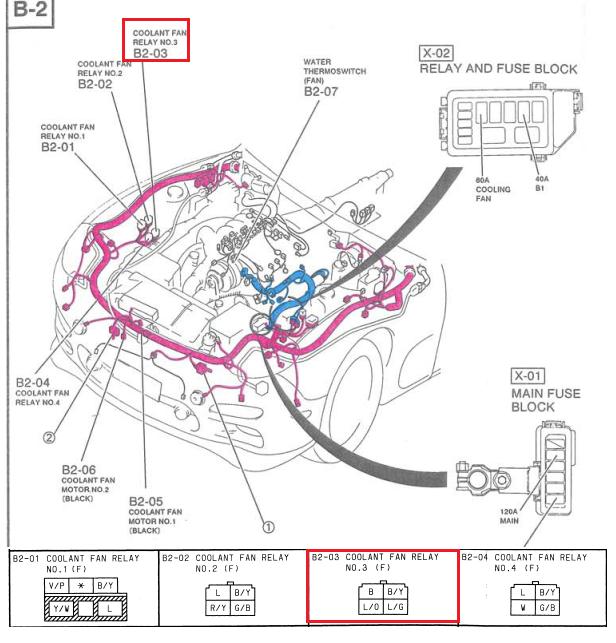

the wiring diagrams clearly show which relay is where:



you need to read the diagrams thoroughly before you ask a question like this
Attached Thumbnails number 3 fan relay-fd_fan_relays.jpg
Reply
Old Sep 15, 2009 | 04:31 AM
  #5
BlueMx5's Avatar
Thread Starter
Full Member
Tenured Member: 15 Years
iTrader: (4)

Joined: Feb 2007
Posts: 193
Likes: 1
From: South NJ
Thank You . where did you get this wiring diagram its great
Reply
Old Sep 15, 2009 | 04:40 AM
  #6
grimple1's Avatar
Turd Ferguson
Tenured Member 05 Years
iTrader: (1)

Joined: Jul 2006
Posts: 2,047
Likes: 2
From: Sherman Oaks, California
that's the wiring diagram service manual....


http://www.wrex-racing.com/web/fd/info.htm#Docs



https://www.rx7club.com/3rd-gen-archives-73/tech-manual-directory-614824/
