new torque brace....
12-25-03, 04:03 PM
#1
Doritos on a toothpick
Thread Starter
new torque brace....
here is the new torque brace i recently built....let me know what u guys think....
Last edited by BoostCrzy; 12-25-03 at 04:05 PM.
12-25-03, 04:16 PM
#3
Doritos on a toothpick
Thread Starter
very solid shifting under load.....vibrations are better than a solid brace.....my previous brace was solid tube...this time i decided to incorporate the shock....fully adjustable(shock dampner and rod length)...softens the vibrations considerably while retaining the rigidity needed to restrain motor movement....
12-25-03, 09:53 PM
#7
PV = nRT
Join Date: Jan 2003
Location: New Zealand (was California)
Posts: 2,250
Likes: 0
Received 0 Likes
on
0 Posts
911GT2,

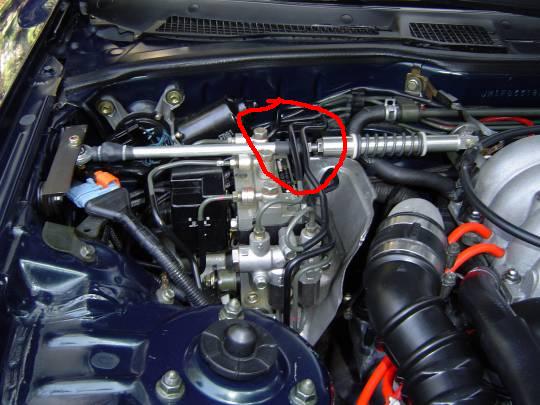

Those are on every car. He just mounted his lower than normal so they pass under the lines (probably bent them upwards) rather than above.
Make sure that spring is very stiff. If you have any significant displacement under load then there is no point in having the brace.
Those are on every car. He just mounted his lower than normal so they pass under the lines (probably bent them upwards) rather than above.
Make sure that spring is very stiff. If you have any significant displacement under load then there is no point in having the brace.
Trending Topics
12-25-03, 10:00 PM
#8
The Power of 1.3
Join Date: Aug 2001
Location: Shrewsbury, Massachusetts
Posts: 2,837
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by clayne
911GT2,
Those are on every car. He just mounted his lower than normal so they pass under the lines (probably bent them upwards) rather than above.
911GT2,
Those are on every car. He just mounted his lower than normal so they pass under the lines (probably bent them upwards) rather than above.
12-25-03, 10:22 PM
#10
Blow up or win
Looks good. I built one similar a while back with a gas spring - it really worked well.
The only problem was that it was masking the real problem: a broken OEM driver's side mount and a worn passenger side mount.
What cracks me up is that an entire cottage industry has been born because of poorly designed mounts - that have been dramatically improved by Mazda - and are readily available for $370.00 shipped from Malloy.
I gotta say it sure is alot easier slapping on a "torque brace" - whatever - than installing new motor mounts, which IS a monster job.
I think you'll find if you take the effort to install some new, updated OEM motor mounts you'll find that crisp shifting return, and you won't have to worry about transient vibration stressing other components and your upper intake manifold engine hanger bracket - which was designed for vertical - not horizontal - loading.
If you're running high HP you need urethane mounts.
The only problem was that it was masking the real problem: a broken OEM driver's side mount and a worn passenger side mount.
What cracks me up is that an entire cottage industry has been born because of poorly designed mounts - that have been dramatically improved by Mazda - and are readily available for $370.00 shipped from Malloy.
I gotta say it sure is alot easier slapping on a "torque brace" - whatever - than installing new motor mounts, which IS a monster job.
I think you'll find if you take the effort to install some new, updated OEM motor mounts you'll find that crisp shifting return, and you won't have to worry about transient vibration stressing other components and your upper intake manifold engine hanger bracket - which was designed for vertical - not horizontal - loading.
If you're running high HP you need urethane mounts.
12-25-03, 10:24 PM
#11
The Power of 1.3
Join Date: Aug 2001
Location: Shrewsbury, Massachusetts
Posts: 2,837
Likes: 0
Received 0 Likes
on
0 Posts
Woah, did RonKMiller just suggest the pre-fabbed, readilty available fix over the ghetto, cheap, do it yourself fix?
Who the hell are you and what have you done with Ron!
Who the hell are you and what have you done with Ron!
12-25-03, 10:27 PM
#12
Blow up or win
Originally posted by 911GT2
Woah, did RonKMiller just suggest the pre-fabbed, readilty available fix over the ghetto, cheap, do it yourself fix?
Who the hell are you and what have you done with Ron!
Woah, did RonKMiller just suggest the pre-fabbed, readilty available fix over the ghetto, cheap, do it yourself fix?
Who the hell are you and what have you done with Ron!
12-26-03, 07:55 AM
#13
Lives on the Forum
Originally posted by clayne
911GT2,
Those are on every car. He just mounted his lower than normal so they pass under the lines (probably bent them upwards) rather than above.
911GT2,
Those are on every car. He just mounted his lower than normal so they pass under the lines (probably bent them upwards) rather than above.
12-26-03, 03:05 PM
#14
Doritos on a toothpick
Thread Starter
its a 93...and yes i did have to "slightly" bend the lines up...lol.....but its not bad....and the spring and shock are very tight....i am not currently planning on producing them yet...but if need be...i am prepared..lol..... the shock is out of an aircraft seat so getting them is kind of an issue....but i can buy them new....
.
