suganuma

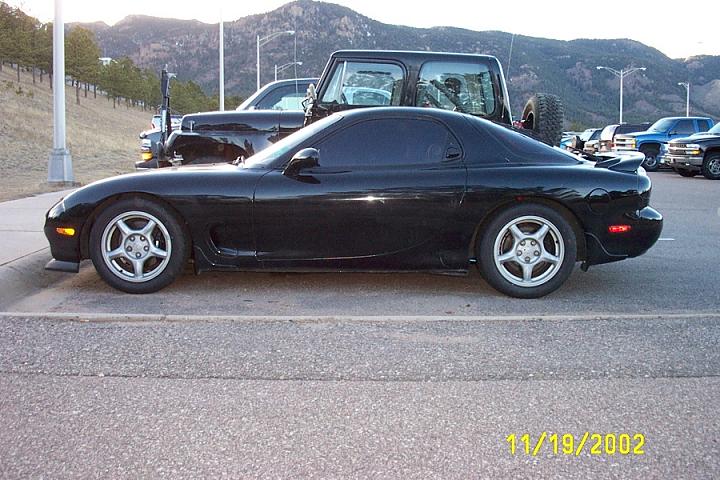

pay no attention to dirty car.....and yes, things are still not finalized/done at this point

http://photos.yahoo.com/bc/efini3x/l...d=112021149992

mazdaspeed00

iTrader: (6)

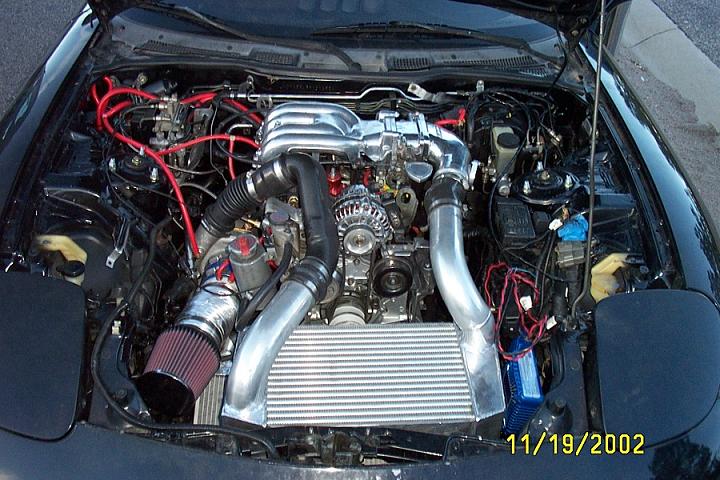

damn i like that v mount setup you got going there

ijneb

very cool- I dont see how your intercooler is functional horizontal without a vented hood of some sort.
Makes me want one that much more

black99

I too dig the v-mount setup, very nice. Always nice to see something different. Looks good.

suganuma

appears yahoo cant handle the traffic

http://www.shutterfly.com/osi.jsp?i=...21b30f2b3b84b3

can anyone shrink these down & post them into this thread instead????

wptrx7

is that rotary extremes v-mount in there?

luigi

vosko

iTrader: (4)

looks good !!

fastrotaries

I have an FC, but damn that thing is sweet.

lemond

Wish I can afford an FD.....

suganuma

like i said above, not done yet - i had to rip up the ducting i made for some changes to the intake to get the car up and running so i need to redo that too

intake temps are pretty low though already even with no ducting and stock hood

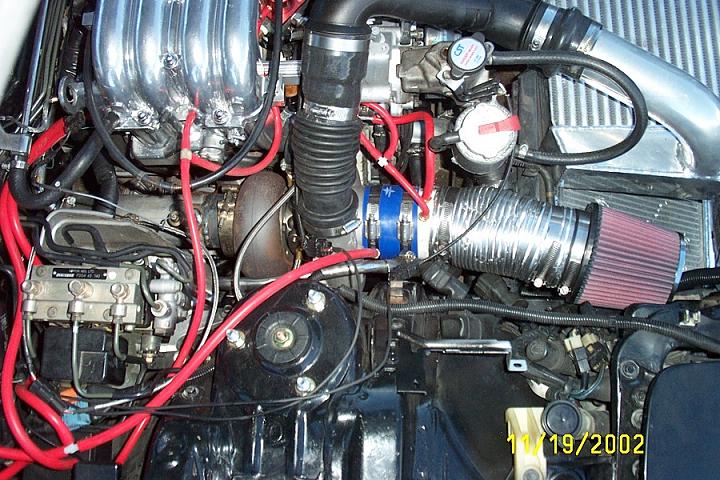

is that rotary extremes v-mount in there?

it is a prototype of chuck's kit. i changed and moved a few things to how i wanted them, but how he has it done it looks like itll work with pretty much any stock setup. weather is cold here so my intake #s are a bit ascewed....going back to tx soon so i can get tuned in and out of the snow.

@45 mph on 40-50*F day i saw 60*f intake temp
hotter day saw 80 or so, but the ducting will help a lot especially with the hackjob on the stock hood.

- Nic

Flyrx7

iTrader: (1)

Open your pics in MS paint, click the "image" pull down menu, go to "stretch/skew" and change the 'horizontal" and "vertical" values to about 30%, and save, this should get you to the file size you need to post your pics here. When are you going to get your last gauge? Don't forget to send me some pics then. Drop me a line too.

Regards,
Frank

7sweetie

hey nic, looks good, i now understand what the whole v mount horizontal ic thing is now, pretty cool

so when are you getting new seats, and wheres that body kit? regardless looks nice, hope you get it running soon

suganuma

??

its been running for a week or 2 now....just not tuned in very well

and...no money for other stuff that is working ok right now
