hey, I need some engine bay pictures from stock/near stock FD's - and pictures of what everything looks like under the front bumper.

I'm trying to put my car back together and it was partly disassembled when I got it (and all bent up as well) so I'm not really sure where alot of stuff is suppossed to go.

also, the main body harness - does that go under the "lip" in the top of teh chassis along the engire front, or ontop? It looks to me like it should be underneath (and go through the "hole" in the fenderwell on both sides) but I want to be sure before I put it together.

Terrh

iTrader: (7)

bump!

Terrh

iTrader: (7)

ttt

airborne

the harness does go under the lip. once upon a time there were plastic clips on the harness conduit that fit into holes on the lip to hold it there.

scotty305

iTrader: (2)

There's a decent photo of a stock engine bay in this thread: https://www.rx7club.com/3rd-generation-specific-1993-2002-16/cooling-system-flush-info-441967/

And the Factory Service Manual has tons of diagrams, exploded drawings and wire locations:
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/94-fsms-available-download-449950/

-s-

Terrh

iTrader: (7)

I went through the FSM pretty thoroughly (I have a '93 FSM in print here), it doesn't specifically mention where /exactly/ the main front (body) harness goes... that picture of the stock engine bay helps alot (for other things), but still doesn't picture that.

Thanks alot airborne too for confirming that.

there is quite a bit of crap to put together to make this thing work again, but at least that's all I have to do.

Another FD saved from death!

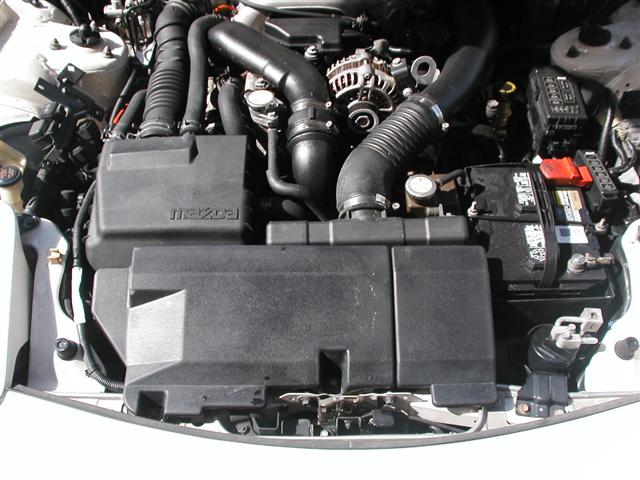

fdeeznutz

Does this help?

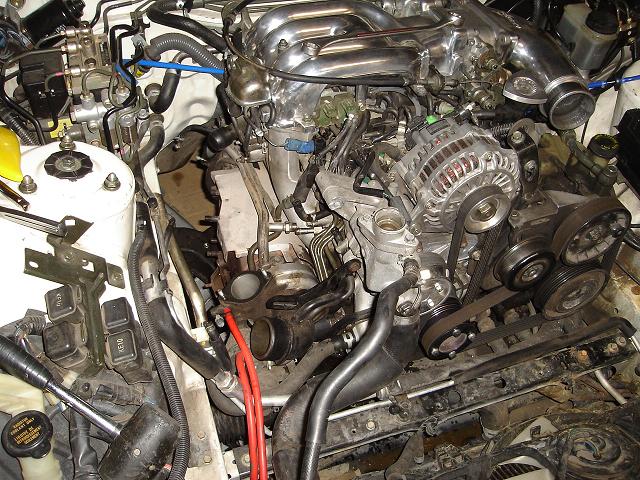

toyzzzz

try this one, unfortunately I don't have the behind the bumper pic.

Terrh

iTrader: (7)

yep, both of those help!


white FD's are hot.

Terrh

iTrader: (7)

I'll give this a final bump here just in case anyone else has one, it would really help!

RX 4 Speed

here ya go. And no, RED FD's are hotter
