Does anyone have a picture of the driver and passenger oil coolers next to each other where it is easy to identify them?

If so please post it....



the brackets on the oil coolers make it easy.. they both point "away" from the car..

ur chances of instlaling it backards are highly unlikely



You should be able to tell from this pic. Click through for a larger pic.
http://dave.newbern.org/gallery2/v/M...s/aan.jpg.html




And before anyone jumps on it, the coolers aren't still covered with paint. Body shop idiots did that. Real pain to clean.



^^^Overspray in the oil cooler cores, i woud ring that painters neck. Did u get Maaco to pain that?



Insulted that someone thinks I would take it to maaco.

It was the third time they painted it.. R1 VR is a difficult color to match since there is no clear coat. I was pissed but just glad to have the car back.

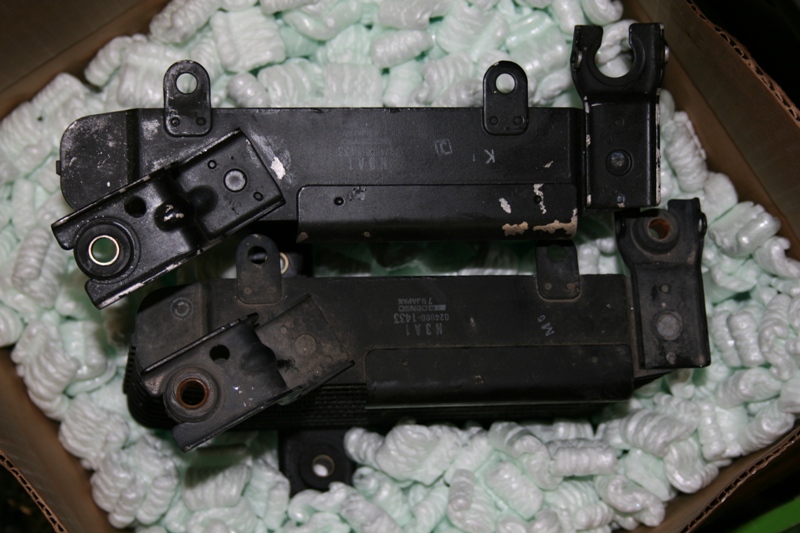

Thanks, That is exactly what I needed. I person I ordered my oil cooler from has sent me the driver side twice now. My driver side is good but now I can show him your pic if needed to make sure I get the correct one and no more of these in my pic.

Would anyone know what number is written on the top of the passenger side cooler?
The diver side number is shown in my pic



Sorry dude, didnt mean to insult u.

But what kinda autobody paints a car and shoots overspray into the oil coolers, thats pathetic.



i was just kidding.. my skin is thicker than that..

agreed



Chad... you can get on Mazda Motorsports(since I hear you have an account now) and pull the part number from the diagram. BTW, be careful... you'll spend alot of money on there Dan and I certainly have! What's the ETA of your car being finished? Can't wait to see it!



Well, we have seemed to misplace the primary injectors, the rear metal turbo pipe, and my old y-pipe so not too sure.
The motor is back in and waiting on the rear turbo metal pipe so I can get the harness to run around it and start to bolt on everything.
Seems like it will be sometime next year at this speed...........
Well hope to be done by the end of the month, well at least it running and back at my house.
