Need pics of ECU harness and plugs
08-04-05, 11:17 PM
#1
Low boost is 18psi *)
Thread Starter
Join Date: Jun 2005
Location: Champaign IL
Posts: 63
Likes: 0
Received 0 Likes
on
0 Posts
Need pics of ECU harness and plugs
Guys
I've been having some really wierd issues with this FD and I was looking at the ecu and its plugs and noticed 2 of the black plugs (that set above the ecu) are interchangeable. I swapped them and the car idled flawlessly, shifted into gear (while resting) with no bog in idle (its an auto). Everything was going great until I took it out to drive it. The car isnt shifting really, its really boggish, and I know its not using 1st gear. It wasnt doing this before i switched the black plugs, so I have no clue whats going on. Can someone please post a pic or two, or at least explain which harnesses go where on th damn ecu and black box
I've been having some really wierd issues with this FD and I was looking at the ecu and its plugs and noticed 2 of the black plugs (that set above the ecu) are interchangeable. I swapped them and the car idled flawlessly, shifted into gear (while resting) with no bog in idle (its an auto). Everything was going great until I took it out to drive it. The car isnt shifting really, its really boggish, and I know its not using 1st gear. It wasnt doing this before i switched the black plugs, so I have no clue whats going on. Can someone please post a pic or two, or at least explain which harnesses go where on th damn ecu and black box
08-05-05, 09:31 AM
#3
Low boost is 18psi *)
Thread Starter
Join Date: Jun 2005
Location: Champaign IL
Posts: 63
Likes: 0
Received 0 Likes
on
0 Posts

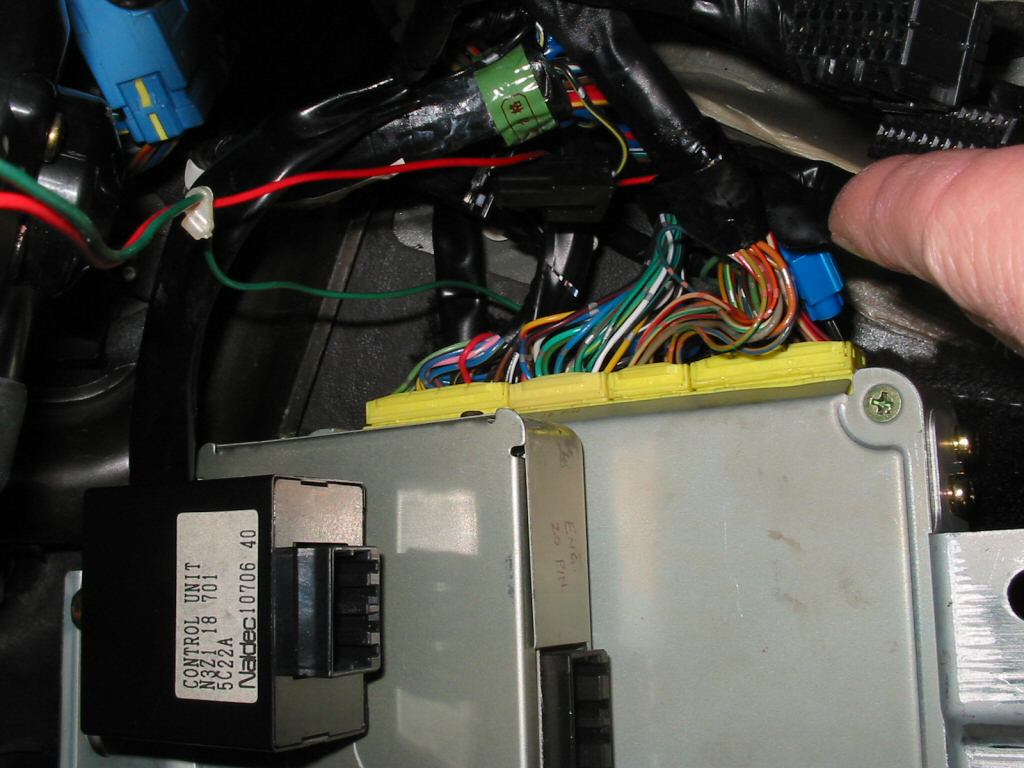

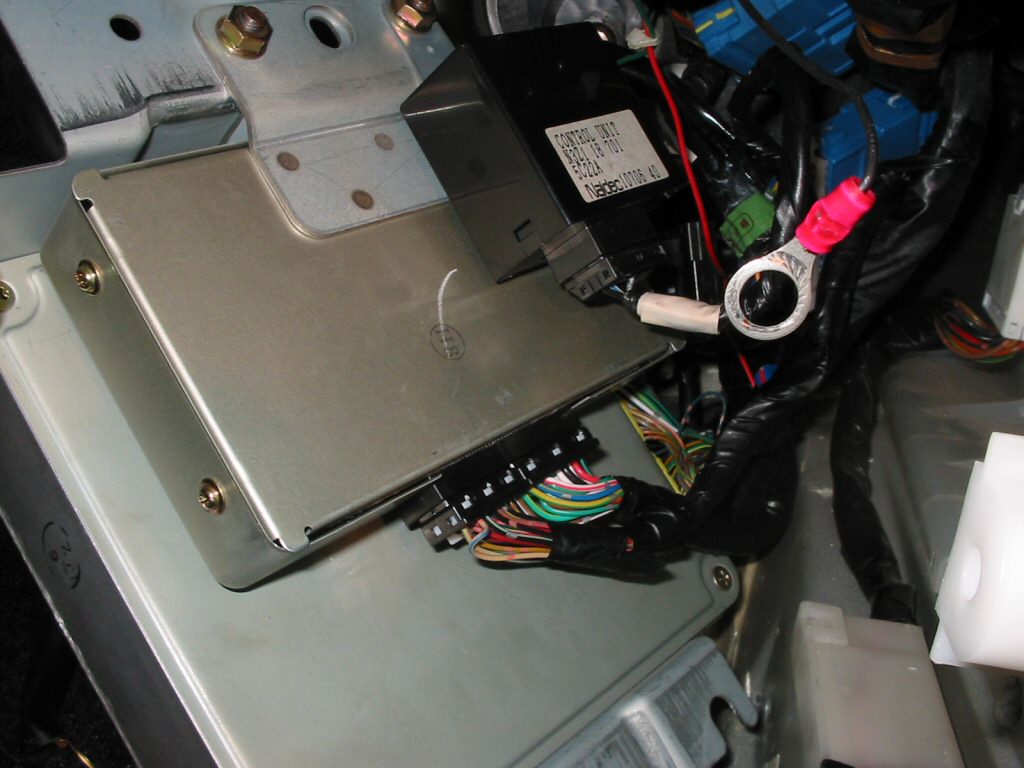

Awesome
Thats what I needed. Interestingly enough, the bottem left hand black plug, swapped with the topmost black plug.....the car ran amazingly better, it just wasnt shifting correctly. Any idea why?
Thats what I needed. Interestingly enough, the bottem left hand black plug, swapped with the topmost black plug.....the car ran amazingly better, it just wasnt shifting correctly. Any idea why?
08-05-05, 09:32 AM
#4
Low boost is 18psi *)
Thread Starter
Join Date: Jun 2005
Location: Champaign IL
Posts: 63
Likes: 0
Received 0 Likes
on
0 Posts
There is also a SINGLE black clip, hanging out behind teh ECU coming out of the harness. I cant find where it goes ANYWHERE. Is it supposed to just be hanging?
08-05-05, 10:16 AM
#5
Originally Posted by Booztd 3
There is also a SINGLE black clip, hanging out behind teh ECU coming out of the harness. I cant find where it goes ANYWHERE. Is it supposed to just be hanging?
Regarding your other post, I have no idea. Try switching it back to see if works (the tranny shifting properly). You may have a bad tranny computer, although I never heard of them going out before.
Sorry I couldn't be more help on that one, sounds like a little investegation is going to required
.Good luck!
08-05-05, 11:11 AM
#6
Low boost is 18psi *)
Thread Starter
Join Date: Jun 2005
Location: Champaign IL
Posts: 63
Likes: 0
Received 0 Likes
on
0 Posts
Haha
a little investigation? I've been battling this for almost 3 weeks now, following the install of an atkins block. I dont know what the deal is with the tranny. Even when it was shifting properly, it wasnt going into 4gr/OD. 65mph or so = 3500rpms
a little investigation? I've been battling this for almost 3 weeks now, following the install of an atkins block. I dont know what the deal is with the tranny. Even when it was shifting properly, it wasnt going into 4gr/OD. 65mph or so = 3500rpms
