need pic of hoses going to stock air box
#1
Rotary Freak
Thread Starter
Join Date: Aug 2002
Location: nyc+li, ny
Posts: 2,690
Likes: 0
Received 0 Likes
on
0 Posts
need pic of hoses going to stock air box
I am re-installing a stock airbox (had Blitz intake previously) and am trying to figure out what to do with the extra two holes in the stock airbox. I only find 4 rubber hoses to connect (turbo 1, turbo 2, air pump and bov).
Can someone please post a pic or something so that I can figure out what gets routed where. Thanks.
Can someone please post a pic or something so that I can figure out what gets routed where. Thanks.
#3
Senior Member

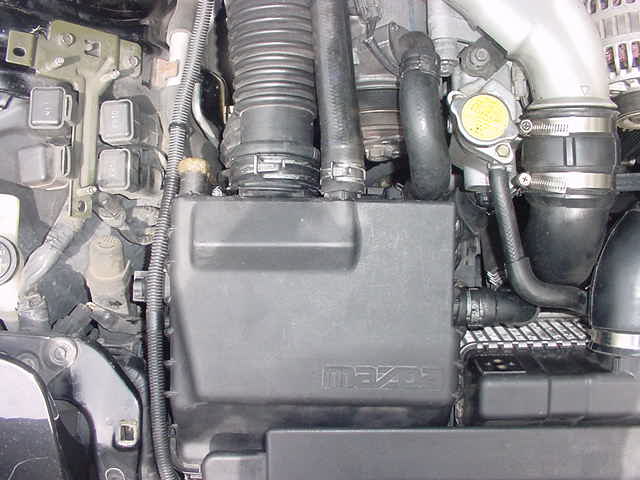

on the far right, thats the air dump hose. not sure what its technically called, but thats what i'll call it. the tube just curves under the air box and ends.
next to that is the air box hose, then the hose from the intake manifold, then turbo 1, turbo 2, and then the BOV on top, and CRV on bottom.
next to that is the air box hose, then the hose from the intake manifold, then turbo 1, turbo 2, and then the BOV on top, and CRV on bottom.
#6
Rotary Freak
Thread Starter
Join Date: Aug 2002
Location: nyc+li, ny
Posts: 2,690
Likes: 0
Received 0 Likes
on
0 Posts
racerfoo - so that hose on the right side just sits there open and unconnected? wierd. I guess its for exhausting air or equalizing air pressure or something... Thanks for the clear pic. That helps too. I will go home in a bit and see if I can't put it together now.
street king - I actually never tried the Blitz intake. It was on the car when I bought it with a blown engine. I actually haven't even driven the car yet It looks really sweet though. Very nicely made and everything bolts together solid compared to pics of some other intakes by various companies.
I figure since I'm not after all out HP that I would see how I like it with the stock box. Plus I need the funds to offset the motor build.
street king - I actually never tried the Blitz intake. It was on the car when I bought it with a blown engine. I actually haven't even driven the car yet It looks really sweet though. Very nicely made and everything bolts together solid compared to pics of some other intakes by various companies.
I figure since I'm not after all out HP that I would see how I like it with the stock box. Plus I need the funds to offset the motor build.
