Need a little help with hose routing

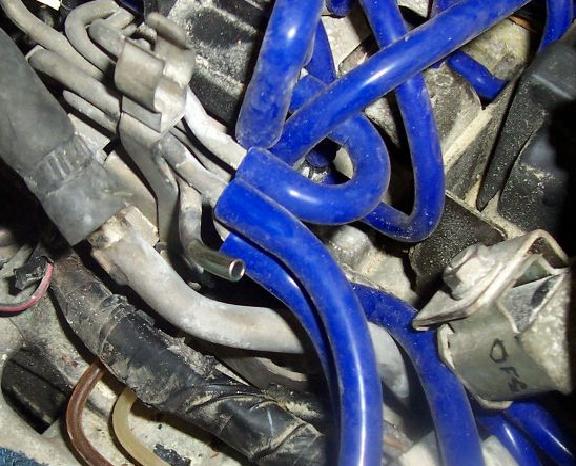

I am at the end of my repair session but I can't quite figure out from the diagram where this guy needs to go...

Attached Thumbnails

Need a little help with hose routing-ratsnest1.jpg

Reply Like

07-29-04, 06:49 PM

dgeesaman

Moderator

iTrader: (7)

Join Date: May 2002

Location: Fort Kickass

Posts: 12,302

Likes: 7

Received 16 Likes on 15 Posts

To the pressure chamber which gets put in on top of it. The hose is baby blue on the common color hose diagram.

Dave

Reply Like

07-29-04, 07:34 PM

Quadulus

Full Member

Thread Starter

Join Date: May 2004

Location: MN

Posts: 220

Likes: 0

Received 0 Likes on 0 Posts

OMFG i'm such a dumbass... I've been looking at this diagram and comparing it to what is currently sitting on the car. It may explain why I couldn't get it to run when I got it. The pressure chamber is currently hooked between the y pipe comin out of the turbos and the actuator turbo control. Good thing I'm changing hose.. thanks I appreciate it!
