Need Help with underdash
05-19-06, 06:22 PM
#2
Rotaryizms93
Thread Starter
Join Date: Feb 2006
Location: Long Beach
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts
bottom:
#1 is connected on the upper dash wiring from the dash
#2 is connected to the harness from firewall to the steering wheel leading to...
I have no idea where they would go.
top:
The other picture is in the left panel under the dash. I do not remember where they go cause i started from scratch (bare body). I'm doin a pretty good job re-building, so please help.
05-20-06, 01:47 PM
#6
Senior Member
iTrader: (1)
Join Date: Jun 2003
Location: Home
Posts: 280
Likes: 0
Received 0 Likes
on
0 Posts

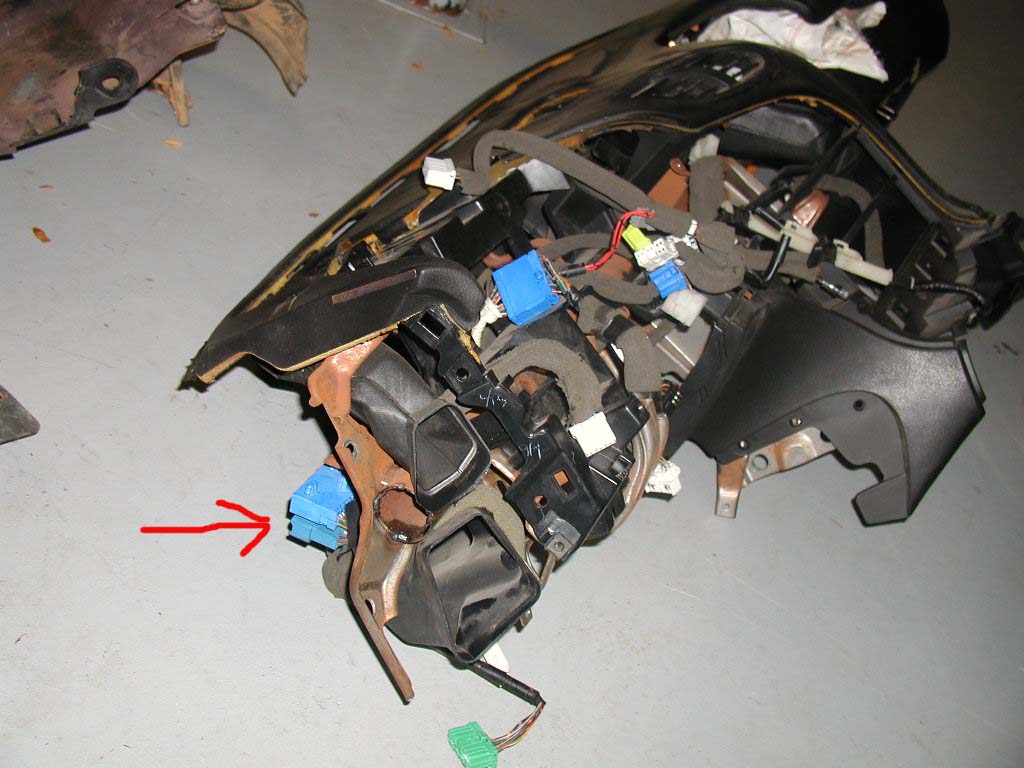

I believe the 2 blue connectors go where the red arrow is pointing. The white one looks like it would go to the clutch peddle there is a switch on the bracket . Hope this helps
Last edited by fedupfd3; 05-20-06 at 01:50 PM.
05-20-06, 03:01 PM
#7
Rotaryizms93
Thread Starter
Join Date: Feb 2006
Location: Long Beach
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by fedupfd3
I believe the 2 blue connectors go where the red arrow is pointing. The white one looks like it would go to the clutch peddle there is a switch on the bracket . Hope this helps
