jones94

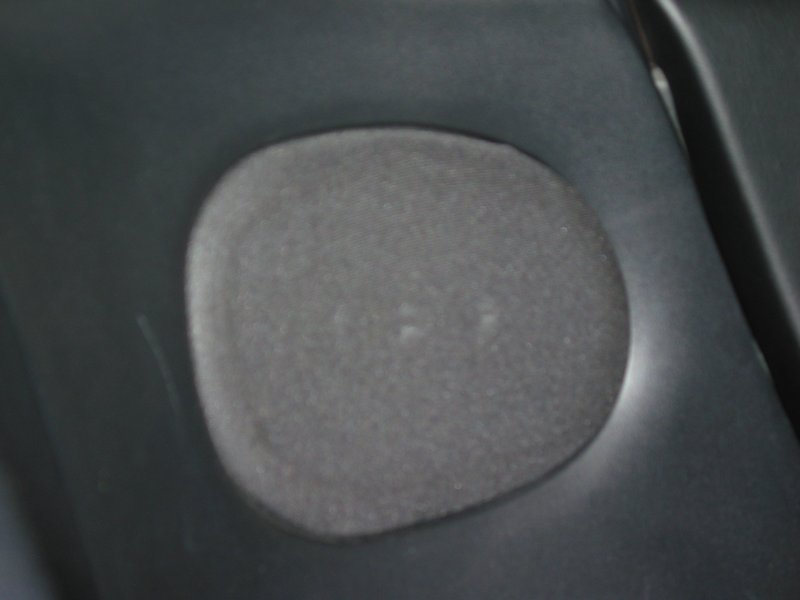

do the rx7's without the bose stereo have two speakers behind each seat(above the storage bins)? right now mine just has two useless pockets and i would like to put two speakers in there location especially if i could get stock non-bose grilles and possibly speaker mounting brackets.

MomoAlvarez3

yes

jones94

is there anywhere i can buy the grilles and brackets new, or is used the only way to find them anymore?
also what size are the stock speakers that fit in them?

freak07

I am pretty sure you have to get it made or make it your self. Its not to hard to do a fiber glass or wood set up you can pick up a book on. I think 5 1/4is what I have, but if your system is still bose you will have to use bose speakers or change out the whole system.

ddkkww888

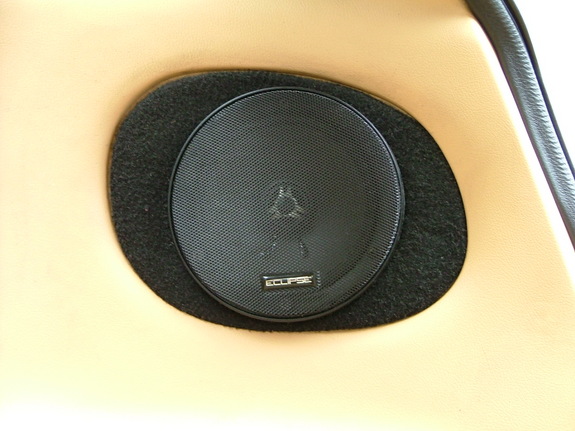

I revamped the Bose System, the rears can hold
up to 6 1/2" along the rear side panel.


Ice: Customized (2/2005):
JVC SHX850 Head unit 35 Watts RMS,
Infinity Kappa speakers, front (2way) 5¼”, rear (3way) 6½”

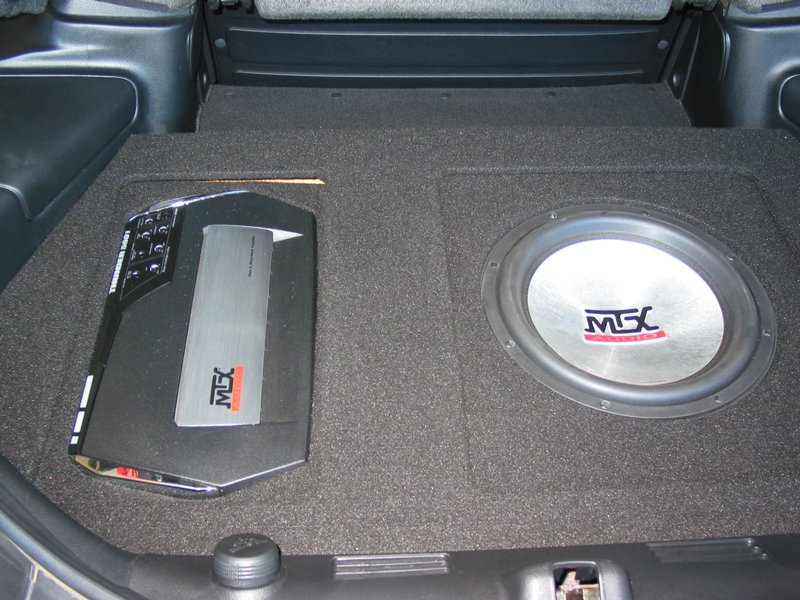

MTX TA5601 Mono Amp Class D 300 Watts RMS
MTX T7512-04 12” Subwoofer 400 Watts Peak

jones94

ddkk how did you get 5 1/4 to fit in the front?
did you make a different bracket to hold them?
i just went out and measured the front bose speakers and they are only 4"

ddkkww888

Hi Jones94,

This was custom work done by my audio shop.
Your correct the original front speakers are only 4".
I guess he had to use a bracket that would hold
the 5 1/4" speakers.

Good Luck,

freak07

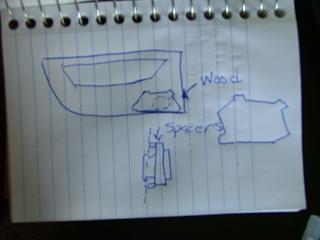

You just make a panel to fill in the space and cut out your hole for whatever size speaker. For this panel I used wood and if your speakers have big magnets you well have to use some spacers in between the door and the wood. Hope you like my blue print I could not find my crayons

jones94

isnt there anywhere where i can buy the rear speaker grilles for the non bose system, even if its from mazda?

XxMerlinxX

iTrader: (2)

IIRC, you can purchase them through Malloy Mazda.

freak07

It would most likely be cheaper to have it done by an audio shop.

jones94

thanks for the help guys...if they arent too pricey i will probably just buy oem ones, if not i will just stretch some speaker grille fabric over them.

ddkkww888

I suggest you bring your speakers to
an audio shop and buy the speaker
bracket it should be in stock.

Good Luck

iceman4357

iTrader: (2)

I did 6.25 in the doors, left the pockets and cut holes in the plastic separator between the seats and the trunk. I mounted 2 6.25's in that. Sounds great@!

CantGoStraight

The factory speakers behind the seat are 5X7's if you modify the factory bracket you can squeeze a 6X9 in there. The grills and brackets are very sought after items and if your quick and lucky enough can be found in the parts for sale section for 3rd. gens. the grills can be bought from the dealer and run around 25 to 30 bucks a piece not sure about the brackets. (check with Ray Crowe at Malloy Mazda)

jmadams74

Unless it's really trashed, the original Bose system is pretty nice and worth restoring to its original quality. I couldn't believe the sound after rebuilding the amps all around! (my speakers were fine). . .just a thought
