Name the connector
Trying to figure out where this little basturd belongs

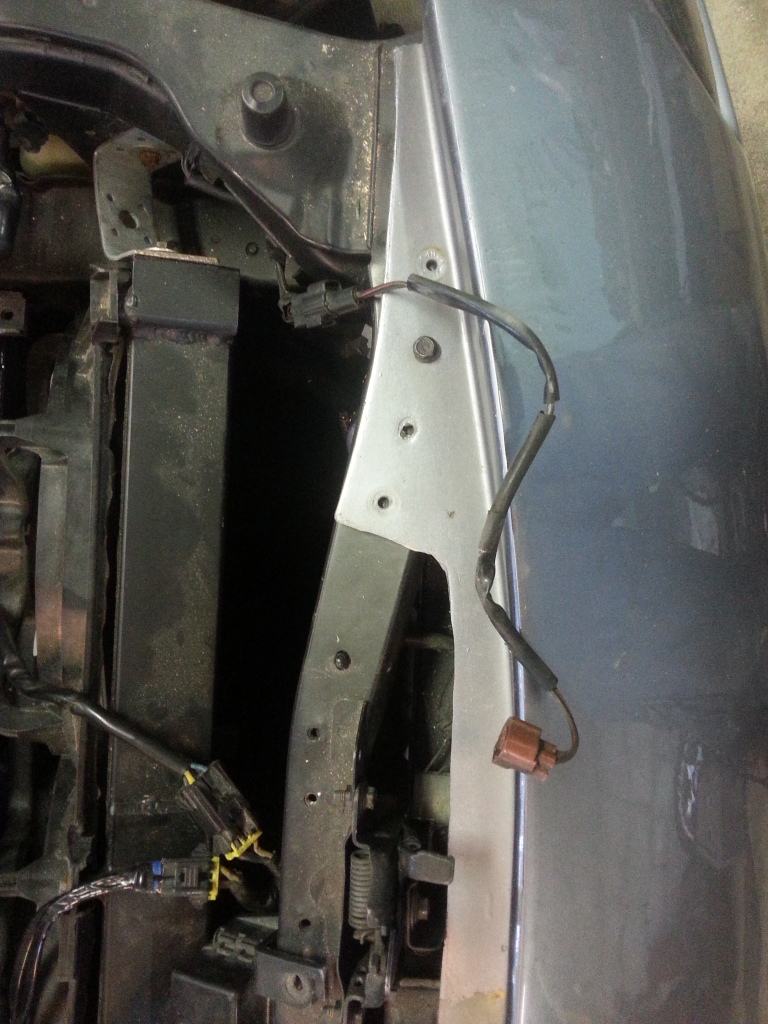

Comes out from the car harness, by the drivers side headlight:
also, had my car out, on wheels for the first time in 4,5 years.....! MAN what a feeling...!
Soon done now, tinkering up the fuel rails now, and loading map in a week..! cant wait!
Comes out from the car harness, by the drivers side headlight:
also, had my car out, on wheels for the first time in 4,5 years.....! MAN what a feeling...!
Soon done now, tinkering up the fuel rails now, and loading map in a week..! cant wait!
06-01-13, 12:10 PM
#2
Senior Member
iTrader: (1)
Join Date: May 2002
Location: Houston, TX
Posts: 705
Likes: 0
Received 0 Likes
on
0 Posts
The black connector looks like the one that goes to the refrigerant pressure switch under the battery. I suppose the orange-ish connector at the end of the pigtail is what plugs into the switch itself.....although I didn't think that was supposed to unplug from the switch.
06-01-13, 03:24 PM
#3
Dang i got to this too late. I dont remember where that goes exactly. I will check later today when im at the car. Also, anyone had any luck finding electrical connectors for the FD? Found a few at mouser electronics but there are so many different ones. Oh, and a wiring harness? Maybe its time to commit to a new wiring harness... but where? BTW the car is going to look sick
06-02-13, 09:57 AM
#6
Senior Member
Thread Starter
iTrader: (4)
Join Date: Apr 2011
Location: Bergen, Norway
Posts: 434
Likes: 0
Received 0 Likes
on
0 Posts
Hehehe, yes it is actually ;-)
Its the E.CCS 20B top of the line model, with ALL the goods in it... and topped off with a large IC, RE-A ecu and RE-A exhaust.. making prolly 380s hp? ;-)
On plates offc :-D
My cruiser.
Trending Topics
06-02-13, 06:44 PM
#8
Senior Member
Thread Starter
iTrader: (4)
Join Date: Apr 2011
Location: Bergen, Norway
Posts: 434
Likes: 0
Received 0 Likes
on
0 Posts
Its a 1990 E.CCS, cream leather interior, OEM touch screen, OEM GPS etc, love that thing!
No pic of the interior, but here is a commercial picture:
im planning to get the lip kit, and redo the old paint when i have the money
No pic of the interior, but here is a commercial picture:
im planning to get the lip kit, and redo the old paint when i have the money
