My newly ceramic coated engine bay parts
05-02-05, 07:42 AM
#1
My newly ceramic coated engine bay parts
Thought id share some pix of the parts i just got back from ceramic coating.
The colour is called Tiatanium and is good to 2000 degrees. Parts are also done on the inside to aid in the heat dissapation.
Most guys tend to polish engine parts but im going for a more black and gunmetal combo, looks great and is functional too!

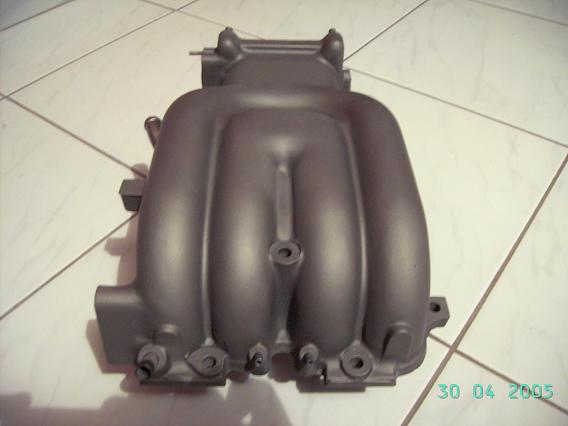

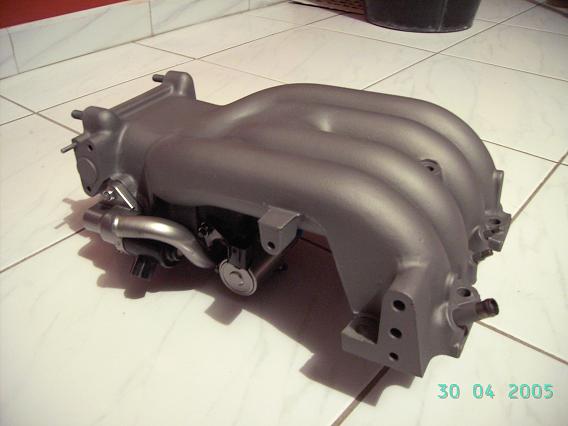

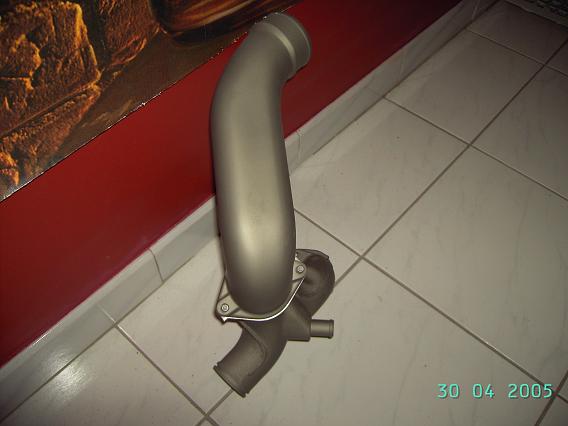

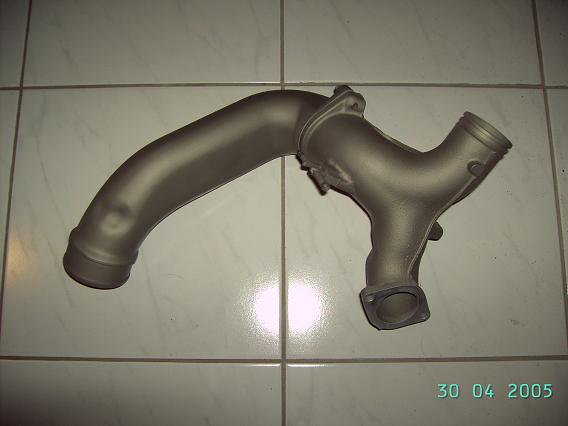

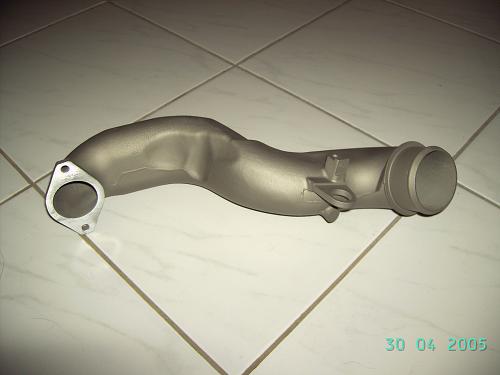

Parts inc are Efini Y pipe, UIM, and rear turbo pipe.
The colour is called Tiatanium and is good to 2000 degrees. Parts are also done on the inside to aid in the heat dissapation.
Most guys tend to polish engine parts but im going for a more black and gunmetal combo, looks great and is functional too!
Parts inc are Efini Y pipe, UIM, and rear turbo pipe.
05-02-05, 08:27 AM
#2
Originally Posted by Mazdabation
Thought id share some pix of the parts i just got back from ceramic coating.
The colour is called Tiatanium and is good to 2000 degrees. Parts are also done on the inside to aid in the heat dissapation.
Most guys tend to polish engine parts but im going for a more black and gunmetal combo, looks great and is functional too!
Parts inc are Efini Y pipe, UIM, and rear turbo pipe.
The colour is called Tiatanium and is good to 2000 degrees. Parts are also done on the inside to aid in the heat dissapation.
Most guys tend to polish engine parts but im going for a more black and gunmetal combo, looks great and is functional too!
Parts inc are Efini Y pipe, UIM, and rear turbo pipe.
05-02-05, 08:55 AM
#4
Originally Posted by Cgotto6
Lookin good. Just keep all the other parts in the engine compartment kinda a dull gray, or black color and it will look slick.
05-02-05, 11:43 AM
#6
Thats hot, dont get me wrong i like polished stuff, but i like the rugged semi-gloss look. Looks more mean IMO.
Too bad i dont got enough money to jet coat all that stuff, so i just bought a powder coating gun for $60 at Harbor freights, it wont be the same but it'll look nice.
Too bad i dont got enough money to jet coat all that stuff, so i just bought a powder coating gun for $60 at Harbor freights, it wont be the same but it'll look nice.
05-02-05, 12:05 PM
#7
Originally Posted by Mazdabation
Thought id share some pix of the parts i just got back from ceramic coating.
The colour is called Tiatanium and is good to 2000 degrees. Parts are also done on the inside to aid in the heat dissapation.
Most guys tend to polish engine parts but im going for a more black and gunmetal combo, looks great and is functional too!
Parts inc are Efini Y pipe, UIM, and rear turbo pipe.
The colour is called Tiatanium and is good to 2000 degrees. Parts are also done on the inside to aid in the heat dissapation.
Most guys tend to polish engine parts but im going for a more black and gunmetal combo, looks great and is functional too!
Parts inc are Efini Y pipe, UIM, and rear turbo pipe.
FYI adding any type of thermal barrier will not help heat dissapation from the parts, it will decrease the rate of heat energy absorbtion or dissapatation. If the manifold gets hot, it'll stay hot longer, less of the heat energy from the engine compartment will get into the intake air. It won't make a huge difference either way.
Trending Topics
05-02-05, 04:36 PM
#8
Originally Posted by turbojeff
Looks good.
FYI adding any type of thermal barrier will not help heat dissapation from the parts, it will decrease the rate of heat energy absorbtion or dissapatation. If the manifold gets hot, it'll stay hot longer, less of the heat energy from the engine compartment will get into the intake air. It won't make a huge difference either way.
FYI adding any type of thermal barrier will not help heat dissapation from the parts, it will decrease the rate of heat energy absorbtion or dissapatation. If the manifold gets hot, it'll stay hot longer, less of the heat energy from the engine compartment will get into the intake air. It won't make a huge difference either way.
For instance the downpipe, if ceramic coated yes it will hold the heat in as you say because the heat is on the inside, and the ceramic bounces it back in and doesnt allow it to dissapate out.
So the UIM would normally take the heat and absorb it. There is no hot air running through the UIM so its not trying to get out either. The ceramic will now bounce the heat away from the UIM aiding in keeping the charge running throught the UIM cooler.
So in other words the ceramic is not here to dissapate heat as the UIM doesnt create it to let it out. Just aids in reflecting it so you dont get heat soak as bad.
You mention yourself that "it will decrease the rate of heat energy absorbtion" so how will it not make "a huge difference" in how hot the uIM could get?
Last edited by Mazdabation; 05-02-05 at 04:39 PM.
.
.
05-02-05, 07:12 PM
#11
Originally Posted by Node
Awesome color of ceramic coating
Where did you have it done?
Where did you have it done?
http://www.hightechcoatings.com
I actually had him darken the colour by 50% because the titanium colour they have was a bit to light for my taste.
05-02-05, 07:18 PM
#12
Originally Posted by Node
Awesome color of ceramic coating
Where did you have it done?
Where did you have it done?
http://www.hightechcoatings.com
I actually had him darken the colour by 50% because the titanium colour they have was a bit to light for my taste.
Last edited by Mazdabation; 05-02-05 at 07:41 PM.
05-03-05, 02:39 AM
#19
Thermal barrier coatings are easy to understand. They don't like for heat to pass through them -- they slow the rate at which heat can move from one side of the coating (say, a manifold) to the other side of the coating (say, the air that surrounds the manifold). Apply that simple rule to any situation in which you may be considering their effects and that should help you figure out what happens. The harder part is figuring out the rate at which heat really flows through the boundary (the manifold / surrounding air boundary, for instance) that you are considering coating, and sometimes which side is really hotter. Heat flows -- the point of coatings and other thermal management techniques is to reduce the amount of heat that will flow from the hot stuff into the stuff you want to keep cool (or the other way around). Always think about flow when you are doing thermal management stuff -- where does heat come from, and what do you want to keep it in or out of?
With the UIM, consider that the heat of the air surrounding the UIM might be hotter than the UIM. And the cool air flow through it is pulling heat out of the UIM from the inside and taking it into the engine. And that is really the goal -- to reduce the intake temps. Keeping the manifold cool for the sake of keeping the manifold cool is pointless -- who cares what temp the manifold is? If you coat the UIM, less heat will flow from the air outside the UIM into the UIM, and then into the air that is flowing through the UIM. You reduce the amount of heat that flows from one place to another.
I had my LIM and UIM coated, too. However, I think two things make it not all that effective. One is that there just isn't a whole lot of heat flowing from the UIM into the air that is quickly rushing though it. So, even if you reduce it by half, the effect isn't very significant. The other issue is that I do think a fair amount of heat flows from the engine block to the LIM and then into the UIM, all through the gasket mating areas. It might even be that more heat flows into the manifolds this way than they absorb from the air that surounds them. The thermal barrier coating traps some heat in the manifolds if that is really the case. Note that "traps in" just means "releases at a slower rate" -- I don't mean that it literally locks the heat up in the manifold, never to escape -- remember, the coatings simply slow the rate at which heat can pass through the surface that you coated. I don't know that more heat comes from the gasket mating areas (and it might be that there isn't one answer to the question -- it could be "sometimes yes, sometimes no"), but it is food for thought.
-Max
With the UIM, consider that the heat of the air surrounding the UIM might be hotter than the UIM. And the cool air flow through it is pulling heat out of the UIM from the inside and taking it into the engine. And that is really the goal -- to reduce the intake temps. Keeping the manifold cool for the sake of keeping the manifold cool is pointless -- who cares what temp the manifold is? If you coat the UIM, less heat will flow from the air outside the UIM into the UIM, and then into the air that is flowing through the UIM. You reduce the amount of heat that flows from one place to another.
I had my LIM and UIM coated, too. However, I think two things make it not all that effective. One is that there just isn't a whole lot of heat flowing from the UIM into the air that is quickly rushing though it. So, even if you reduce it by half, the effect isn't very significant. The other issue is that I do think a fair amount of heat flows from the engine block to the LIM and then into the UIM, all through the gasket mating areas. It might even be that more heat flows into the manifolds this way than they absorb from the air that surounds them. The thermal barrier coating traps some heat in the manifolds if that is really the case. Note that "traps in" just means "releases at a slower rate" -- I don't mean that it literally locks the heat up in the manifold, never to escape -- remember, the coatings simply slow the rate at which heat can pass through the surface that you coated. I don't know that more heat comes from the gasket mating areas (and it might be that there isn't one answer to the question -- it could be "sometimes yes, sometimes no"), but it is food for thought.
-Max
05-03-05, 09:57 AM
#21
Originally Posted by fcfdfan
Inside the UIM?
On the UIM there is no heat to keep in but he does all parts this way, if you read his site it states that all parts are done on both sides. Maybe a waist for the UIM but who knows it may help in being an extra barrier from stopping heat from getting in your UIM.
Parts like the UIM are done with a lighter coat on the inside then the outside beacuse he doesnt want a piece comming off and being sucked into the motor. The coating is very strong and doesnt chip easy but its just a precaution factor.
***QUOTE*** from MAXCOOPER above
With the UIM, consider that the heat of the air surrounding the UIM might be hotter than the UIM. And the cool air flow through it is pulling heat out of the UIM from the inside and taking it into the engine. And that is really the goal -- to reduce the intake temps. Keeping the manifold cool for the sake of keeping the manifold cool is pointless -- who cares what temp the manifold is? If you coat the UIM, less heat will flow from the air outside the UIM into the UIM, and then into the air that is flowing through the UIM. You reduce the amount of heat that flows from one place to another.
Last edited by Mazdabation; 05-03-05 at 10:01 AM.
05-03-05, 10:10 AM
#22
Originally Posted by maxcooper
Thermal barrier coatings are easy to understand. They don't like for heat to pass through them -- they slow the rate at which heat can move from one side of the coating (say, a manifold) to the other side of the coating (say, the air that surrounds the manifold). Apply that simple rule to any situation in which you may be considering their effects and that should help you figure out what happens. The harder part is figuring out the rate at which heat really flows through the boundary (the manifold / surrounding air boundary, for instance) that you are considering coating, and sometimes which side is really hotter. Heat flows -- the point of coatings and other thermal management techniques is to reduce the amount of heat that will flow from the hot stuff into the stuff you want to keep cool (or the other way around). Always think about flow when you are doing thermal management stuff -- where does heat come from, and what do you want to keep it in or out of?
With the UIM, consider that the heat of the air surrounding the UIM might be hotter than the UIM. And the cool air flow through it is pulling heat out of the UIM from the inside and taking it into the engine. And that is really the goal -- to reduce the intake temps. Keeping the manifold cool for the sake of keeping the manifold cool is pointless -- who cares what temp the manifold is? If you coat the UIM, less heat will flow from the air outside the UIM into the UIM, and then into the air that is flowing through the UIM. You reduce the amount of heat that flows from one place to another.
I had my LIM and UIM coated, too. However, I think two things make it not all that effective. One is that there just isn't a whole lot of heat flowing from the UIM into the air that is quickly rushing though it. So, even if you reduce it by half, the effect isn't very significant. The other issue is that I do think a fair amount of heat flows from the engine block to the LIM and then into the UIM, all through the gasket mating areas. It might even be that more heat flows into the manifolds this way than they absorb from the air that surounds them. The thermal barrier coating traps some heat in the manifolds if that is really the case. Note that "traps in" just means "releases at a slower rate" -- I don't mean that it literally locks the heat up in the manifold, never to escape -- remember, the coatings simply slow the rate at which heat can pass through the surface that you coated. I don't know that more heat comes from the gasket mating areas (and it might be that there isn't one answer to the question -- it could be "sometimes yes, sometimes no"), but it is food for thought.
-Max
With the UIM, consider that the heat of the air surrounding the UIM might be hotter than the UIM. And the cool air flow through it is pulling heat out of the UIM from the inside and taking it into the engine. And that is really the goal -- to reduce the intake temps. Keeping the manifold cool for the sake of keeping the manifold cool is pointless -- who cares what temp the manifold is? If you coat the UIM, less heat will flow from the air outside the UIM into the UIM, and then into the air that is flowing through the UIM. You reduce the amount of heat that flows from one place to another.
I had my LIM and UIM coated, too. However, I think two things make it not all that effective. One is that there just isn't a whole lot of heat flowing from the UIM into the air that is quickly rushing though it. So, even if you reduce it by half, the effect isn't very significant. The other issue is that I do think a fair amount of heat flows from the engine block to the LIM and then into the UIM, all through the gasket mating areas. It might even be that more heat flows into the manifolds this way than they absorb from the air that surounds them. The thermal barrier coating traps some heat in the manifolds if that is really the case. Note that "traps in" just means "releases at a slower rate" -- I don't mean that it literally locks the heat up in the manifold, never to escape -- remember, the coatings simply slow the rate at which heat can pass through the surface that you coated. I don't know that more heat comes from the gasket mating areas (and it might be that there isn't one answer to the question -- it could be "sometimes yes, sometimes no"), but it is food for thought.
-Max
We all know how you could fry an egg on the top of your UIM after a few hours on the road, our engine bays are freakin hot! What i would like to do is measure the temp of the metal of my car compared to a stock one, see if the reading is any different. If it ends up being less then its doing something positive, if not then hey it looks good lol. I will make a post one day after i do this test.
05-03-05, 11:29 AM
#25
Obsessed
Join Date: Sep 2003
Location: Lenexa KS
Posts: 453
Likes: 0
Received 0 Likes
on
0 Posts
Unfortunately I think the point Max was trying to emphasize was missed.
The temperature of your motor will not change or could technically go up since you are not transferring heat out of or through those parts as efficiently as you were before. Note the difference is academic only since 99+% of the cooling is via radiator and oil coolers...
As Max said, you may see slightly lower intake temps due to less heat transfer into the intake charge. And if you are able to get air moving at all in your engine bay, the coating will help against baking your wiring and vacuum lines - again, due to slower heat transfer into the surrounding air.
The temperature of your motor will not change or could technically go up since you are not transferring heat out of or through those parts as efficiently as you were before. Note the difference is academic only since 99+% of the cooling is via radiator and oil coolers...
As Max said, you may see slightly lower intake temps due to less heat transfer into the intake charge. And if you are able to get air moving at all in your engine bay, the coating will help against baking your wiring and vacuum lines - again, due to slower heat transfer into the surrounding air.
Originally Posted by Mazdabation
The way I look at is heat is heat, and the less the better. I have no way of proving if it makes a signifgent difference in temperature of heat soak, but i can only assume its going to work in a possitive way. The cooler the charge entering the car the better, if ceramic coating aids in anyway of keeping it cooler(even a few degrees)the better in my eyes.
We all know how you could fry an egg on the top of your UIM after a few hours on the road, our engine bays are freakin hot! What i would like to do is measure the temp of the metal of my car compared to a stock one, see if the reading is any different. If it ends up being less then its doing something positive, if not then hey it looks good lol. I will make a post one day after i do this test.
We all know how you could fry an egg on the top of your UIM after a few hours on the road, our engine bays are freakin hot! What i would like to do is measure the temp of the metal of my car compared to a stock one, see if the reading is any different. If it ends up being less then its doing something positive, if not then hey it looks good lol. I will make a post one day after i do this test.
