My Gauges - opinions wanted

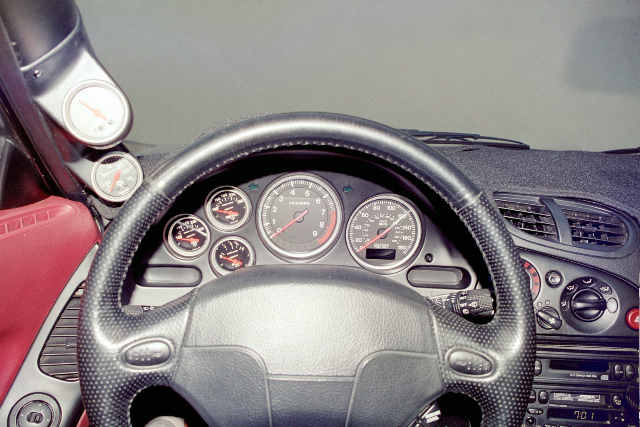

Alright, so I'm trying to nail down my gauge setup. I've got Autometer fuel, water temp, and oil pressure in the factory cluster, and autometer AFR and Boost in a center speaker pod. I also have an Autometer EGT and a dual gauge A pillar pod. The problem I have with the A pillar pod is I see it interfering with my left hand during cornering, and it really detracts from the smoothness of the interior. Should I
a) Add an Oil Temp or other gauge (suggestion) to fill out the A-pillar pod along with the EGT?
b) Ditch the EGT and the A pillar pod and keep the center speaker and stock cluster gauges only for the low-profile look?
I'm leaning towards option B...
a) Add an Oil Temp or other gauge (suggestion) to fill out the A-pillar pod along with the EGT?
b) Ditch the EGT and the A pillar pod and keep the center speaker and stock cluster gauges only for the low-profile look?
I'm leaning towards option B...
#6
The Laser Man
hahahahaha~~~ that was super quick... by the way how do you like the center guage pod??? do you think it flows well with the interior or does it look awkward???? I'm trying to decide if I should get the a-pillar or center speaker pods...
#7
I don't think the a/f gauge is as worthless as people make it out to be. If you know what to expect from it, it's quite useful, IMO. If you are using it to make sure you're running rich/safe, it is worthless.
Sonny
Sonny
Trending Topics
#8
DRIVE THE ROTARY SPORTS
iTrader: (5)
Join Date: May 2003
Location: CA (Bay Area)
Posts: 4,150
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Sonny
I don't think the a/f gauge is as worthless as people make it out to be. If you know what to expect from it, it's quite useful, IMO. If you are using it to make sure you're running rich/safe, it is worthless.
Sonny
Sonny
as far as the gauges are concerned im trying to decide on pods as well. id like to have 1)water temp 2) Boost 3) egt 4) fuel pressure . i think that's it.... 4 gauges... so i am also trying to decide how to mount them.... maybe a 3 gauge center speaker pod, and a steering colum pod? anyway, im wondering why people use the additional oil pressure gauge? i understand that the FD's water gauge is next to useless, but the oil press. gauge seems to be accurate (although small)
#9
Banned. I got OWNED!!!
Join Date: Jul 2002
Location: DC
Posts: 1,035
Likes: 0
Received 0 Likes
on
0 Posts
A/F gauges aren't totally useless..
I use mine as like a fuel injector gauge.
And it gives you an Idea of what your car is doing running.
although i do have a pfc that tells me my injector duties..
I use mine as like a fuel injector gauge.
And it gives you an Idea of what your car is doing running.
although i do have a pfc that tells me my injector duties..
#10
apex seal BBQ
Thread Starter
Join Date: Sep 2002
Location: AL
Posts: 867
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RotorMotor
then what is it good for? i was under the impression that, that's what its purpose was, and that without a wide band they are very much useless.
as far as the gauges are concerned im trying to decide on pods as well. id like to have 1)water temp 2) Boost 3) egt 4) fuel pressure . i think that's it.... 4 gauges... so i am also trying to decide how to mount them.... maybe a 3 gauge center speaker pod, and a steering colum pod? anyway, im wondering why people use the additional oil pressure gauge? i understand that the FD's water gauge is next to useless, but the oil press. gauge seems to be accurate (although small)
as far as the gauges are concerned im trying to decide on pods as well. id like to have 1)water temp 2) Boost 3) egt 4) fuel pressure . i think that's it.... 4 gauges... so i am also trying to decide how to mount them.... maybe a 3 gauge center speaker pod, and a steering colum pod? anyway, im wondering why people use the additional oil pressure gauge? i understand that the FD's water gauge is next to useless, but the oil press. gauge seems to be accurate (although small)

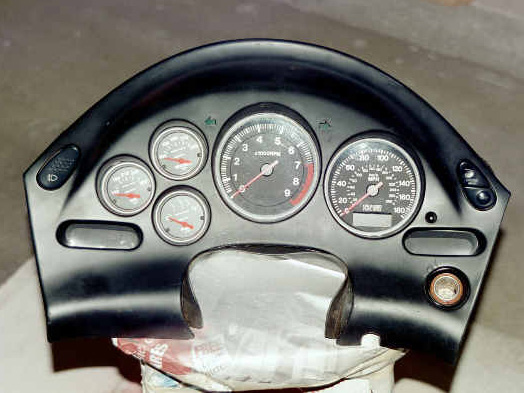

The oil pressure gauge isn't additional - I modified the cluster to accept autometer 2-1/16" gauges. I replaced the factory oil pressure and water temp with autometer sport-comp oil pressure and water temp - looks damn near stock, actually
I would highly recommend the two-gauge center pod - it looks like it belongs there. That was an argument against using the additional gauges - something about the a-pillar pod screams "modified".
#11
Originally Posted by RotorMotor
then what is it good for? i was under the impression that, that's what its purpose was, and that without a wide band they are very much useless.
The other thing that i find it useful for is monitoring when the ECU switches out of "closed loop". When it is running in "closed loop", you see the O2 readings sweep back and forth...an indication that ECU is doing its best to maintain max fuel economy. When it switches into "open loop", the O2 sensor input is essentially ignored and that is when you see the gauge peg over to the rich side and stay there. Fuel values are now being read out of a table...these are the tables that get modified when you buy a chipped ECU like the M2, Pettit, G-Force, etc. Open loop is also when you start burning a lot more gas. It runs the car rich to safely make power.
If you dig a little deeper, you will also see that the ECU treats each gear differently. If you rev it up in 3rd gear, the ECU will switch into open loop regardless of load because Mazda must have figured that generally, you do not cruise in 3rd gear. 3rd gear is a gear where you are very likely to mash the gas pedal and accelerate hard. However, it will not do the same in 5th gear. It will stay in closed loop as long as possible to maximize fuel efficiency. These are things you can learn from that factory O2 sensor that are great to know when programming a standalone. It's knowledge that I certainly hope to apply when I convert to a PFC.
Sonny
#16
DRIVE THE ROTARY SPORTS
iTrader: (5)
Join Date: May 2003
Location: CA (Bay Area)
Posts: 4,150
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by broken93
The oil pressure gauge isn't additional - I modified the cluster to accept autometer 2-1/16" gauges. I replaced the factory oil pressure and water temp with autometer sport-comp oil pressure and water temp - looks damn near stock, actually
#18
Ex fd *****
Originally Posted by RotorMotor
love to see some pics of it. how does the backlighting match up? im probably going with defi d-gauges for backlighting purposes (despite not having the buzzer/record feature that the other defi gauges offer)... why cant i have my cake and eat it too... come on defi
Last edited by maxpesce; 10-05-04 at 09:55 AM.
#19
Eats, Sleeps, Dreams Rotary
iTrader: (17)
How about getting a 3-gauge center speaker pod? Or a steering column pod, that's what I'm using for my boost gauge.
Do you have a write-up/how-to and installing the gauges in the stock cluster? What did you do with the low oil/coolant/gas lights and buzzer?
Do you have a write-up/how-to and installing the gauges in the stock cluster? What did you do with the low oil/coolant/gas lights and buzzer?
#20
apex seal BBQ
Thread Starter
Join Date: Sep 2002
Location: AL
Posts: 867
Likes: 0
Received 0 Likes
on
0 Posts
I've considered putting in LED's for the low coolant/gas stuff.

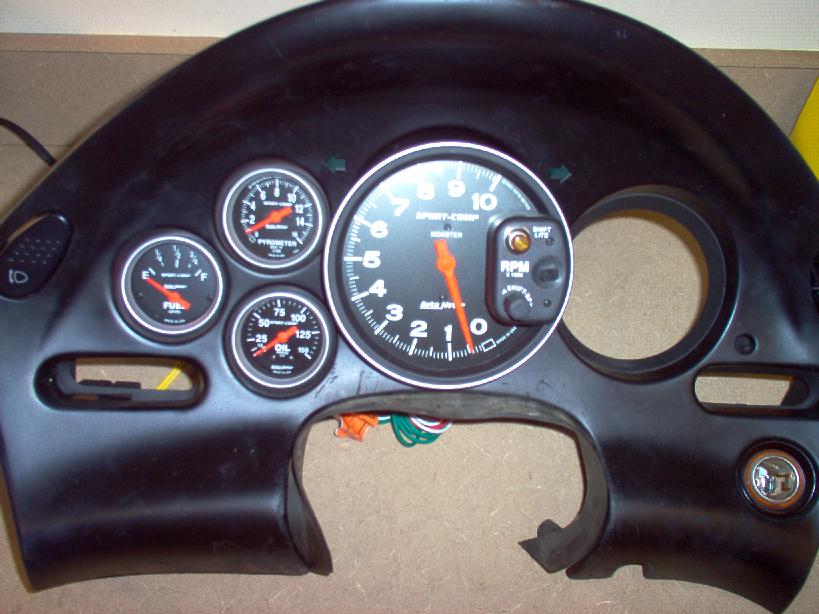

There are some write-ups already on the autometer stuff. I basically had the center black plastic surround bored to my specifications so that AM gauges slip right in, just like in a pod.
I'm still working on the wiring and dealing with the flexi-pcb in the back.
There are some write-ups already on the autometer stuff. I basically had the center black plastic surround bored to my specifications so that AM gauges slip right in, just like in a pod.
I'm still working on the wiring and dealing with the flexi-pcb in the back.
#21
Ex fd *****
Originally Posted by neit_jnf
How about getting a 3-gauge center speaker pod? Or a steering column pod, that's what I'm using for my boost gauge.
Do you have a write-up/how-to and installing the gauges in the stock cluster? What did you do with the low oil/coolant/gas lights and buzzer?
Do you have a write-up/how-to and installing the gauges in the stock cluster? What did you do with the low oil/coolant/gas lights and buzzer?
https://www.rx7club.com/forum/showth...hreadid=199139
The Low Oil light will be an LED mounted next to the Oil Press gauge on the A pillar and I am working on a display for the top of the steering column that will house warning lights for low coolant and low fuel - they will have backlit icons just like the stock warning lights.
