Looking for the best highflow cat.......
Searching isnt helping. I am looking to get a highflow cat. I have heard of all the boost spiking/creeping that happens with the stock twins when you remove that cat completely and put a mp.
With that said I was wondering if anyone knew the best flowing cat out their. I was looking at the petite one but its $$. Is their one that is proven to have the highest flow?
Hopefully someone has some experiance with this.
With that said I was wondering if anyone knew the best flowing cat out their. I was looking at the petite one but its $$. Is their one that is proven to have the highest flow?
Hopefully someone has some experiance with this.
#5
EliteHardcoreCannuckSquad
Join Date: Jul 2001
Location: London, England/Sesimbra, Portugal
Posts: 3,178
Likes: 0
Received 0 Likes
on
0 Posts
I didnt notice any boost spike/creep when I switched to a highflow cat (Ntech). I also didnt notice any change in performance. "Highflow" is just a name... dont read into it too much.
Last edited by RXcetera; 10-31-02 at 12:02 AM.
#6
Senior Member
Thread Starter
Join Date: May 2002
Location: NJ
Posts: 492
Likes: 0
Received 0 Likes
on
0 Posts
I was under the impression that taking out the main cat and add a MP you notice huge hp gains. The problem is that the stock wastegate cant handle the extra air flow. The outcome is boost spike or creep.
Now with a high flow you get more airflow its restrictive but not nearly as restrictive as the stock one. (Basically a mp with back pressure)
I have heard that a high flow cat gives more hp. Alot of people who have them end up going to a mp anyway thats actually why I posted this question.
I am looking to stay safe. I also dont want to get a mp an buy the added fuel upgrades and tuning if I have to take it all out.
Now with a high flow you get more airflow its restrictive but not nearly as restrictive as the stock one. (Basically a mp with back pressure)
I have heard that a high flow cat gives more hp. Alot of people who have them end up going to a mp anyway thats actually why I posted this question.
I am looking to stay safe. I also dont want to get a mp an buy the added fuel upgrades and tuning if I have to take it all out.
Trending Topics
#8
5yr member, joined 2001
cat back (CB) = muffler
We call them cat backs now, because "muffler" is a misnomer.
The downpipe goes between turbos and main cat (cat = catylitic converter). It replaces the restrictive and easily clogged pre-cat.
A midpipe replaces the main cat.
We call them cat backs now, because "muffler" is a misnomer.
The downpipe goes between turbos and main cat (cat = catylitic converter). It replaces the restrictive and easily clogged pre-cat.
A midpipe replaces the main cat.
#10
Senior Member
Join Date: Aug 2002
Location: cupertino
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts
mid pipe is basically a straight pipe which means theres no catalytic converter.
the cat is there to help pass emissions but kills your power like crazy.
the catback or exhaust is after the main cat.
people refer to it as main cat in the US because we have precats also. the precat is located before the main cat and the straight pipe replacement is known as the downpipe.
the cat is there to help pass emissions but kills your power like crazy.
the catback or exhaust is after the main cat.
people refer to it as main cat in the US because we have precats also. the precat is located before the main cat and the straight pipe replacement is known as the downpipe.
#11
Place your ad here...
I have a Bonez high flow, supposed to be one of the best out there. I purchased it from rotary performance (rx7.com). So far I completely love it. Its not really loud, no nasty gas fumes, and I have definately noticed a performance gain over the stock one.
Supposedly a midpipe will give you a larger gain in the upper RPM range, due to the fact that there is no resistance, and there is a higher volume of exhaust gas at higher RPMs. This thereby increases your peak horsepower.
The largest area of performance gain by adding a high flow is more in the low and middle range of the RPM. So basically, using a high flow will give you better low end power than using a mid-pipe, but a mid-pipe will give a lot more power up top.
Someone posted some dyno results that prove this theory a while ago. I'll see if I can dig those up for ya.
Rob
Supposedly a midpipe will give you a larger gain in the upper RPM range, due to the fact that there is no resistance, and there is a higher volume of exhaust gas at higher RPMs. This thereby increases your peak horsepower.
The largest area of performance gain by adding a high flow is more in the low and middle range of the RPM. So basically, using a high flow will give you better low end power than using a mid-pipe, but a mid-pipe will give a lot more power up top.
Someone posted some dyno results that prove this theory a while ago. I'll see if I can dig those up for ya.
Rob
#12
I can comment on three High flow systems
Pettit CAT
Random Tech
Bonez
We have had all three.
The Pettit CAT plates broke off and failed within 6 months. Replaced it with a pettit and it happened again.
Random Tech CAT clogged in one year.
The Bonez CAT has been on for 2 years now and no problem.
My buddy, Wael, dynoed his car with Bonez and midpipe.
Midpipe: about 30 more HP on top end compared to High flow CAT. BUT the CAT had provided more low end, mid HP and torque OVER the midpipe. CAT provides better street/everyday driving since more power is available. Midpipe Needed for Max HP.
CAT greatly decreases the ehaust noise.
I hope that helps.
Pettit CAT
Random Tech
Bonez
We have had all three.
The Pettit CAT plates broke off and failed within 6 months. Replaced it with a pettit and it happened again.
Random Tech CAT clogged in one year.
The Bonez CAT has been on for 2 years now and no problem.
My buddy, Wael, dynoed his car with Bonez and midpipe.
Midpipe: about 30 more HP on top end compared to High flow CAT. BUT the CAT had provided more low end, mid HP and torque OVER the midpipe. CAT provides better street/everyday driving since more power is available. Midpipe Needed for Max HP.
CAT greatly decreases the ehaust noise.
I hope that helps.
#13
call me Smokie Smokerson
Join Date: Aug 2002
Location: Southern California
Posts: 1,665
Likes: 0
Received 0 Likes
on
0 Posts
http://www.efini.net/hpcomparo.htm
when I saw that in my Rx-7 research, I was determined to get a Hi-flow. I bought someone's used ATR cat, thinking it would do a lot. Turns out the only difference that I can honestly notice is the rotten egg smell from not hooking up the air pump and louder exhaust. Add that to the joys of 16 psi boost spikes @4500 and $450 in boost controllers. My friends say that the car is at the point where anything under 30 hp or so they won't notice, so I'm pretty disappointed. I'm planning on visiting the dyno again sometime soon....
(to be ocntinued)
-jerry
btw, I only paid $230 shipped compared to a new bonez @$500+)
when I saw that in my Rx-7 research, I was determined to get a Hi-flow. I bought someone's used ATR cat, thinking it would do a lot. Turns out the only difference that I can honestly notice is the rotten egg smell from not hooking up the air pump and louder exhaust. Add that to the joys of 16 psi boost spikes @4500 and $450 in boost controllers. My friends say that the car is at the point where anything under 30 hp or so they won't notice, so I'm pretty disappointed. I'm planning on visiting the dyno again sometime soon....
(to be ocntinued)
-jerry
btw, I only paid $230 shipped compared to a new bonez @$500+)
#14
Place your ad here...
r0t0r-rooter - That is exactly the dyno plot I was talking about. Thanks for finding that, saves me the work of doing it.
Thats exactly why I like my high flow instead of using a midpipe. I'd rather have a little more power on the lower end. Much better for street driving in my opinion. Plus I'd rather not have to deal with boost creep and all that
aimedhigh - I obviously don't have the high flow experience that you've had, as I have only had a Bonez high flow on my FD. But you're not the first one I've heard saying similar things about pettit's HF. Thats kinda why I shyed away from them and went the Bonez route. It may be a little more expensive, but I felt that it was worth it.
Thats exactly why I like my high flow instead of using a midpipe. I'd rather have a little more power on the lower end. Much better for street driving in my opinion. Plus I'd rather not have to deal with boost creep and all that
aimedhigh - I obviously don't have the high flow experience that you've had, as I have only had a Bonez high flow on my FD. But you're not the first one I've heard saying similar things about pettit's HF. Thats kinda why I shyed away from them and went the Bonez route. It may be a little more expensive, but I felt that it was worth it.
#15
Full Member
Join Date: Apr 2002
Location: Northern CA
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
I second the Bonez High-Flow CAT as a very good CAT. I like the inner construction as it is made from ceramic blocks that apparently are more effective at disipating heat I did notice a performance improvement especially at the lower end RPM's, which has already been mentioned. Worth every penny IMHO.
#18
Full Member
Join Date: Apr 2002
Location: MA
Posts: 142
Likes: 0
Received 0 Likes
on
0 Posts

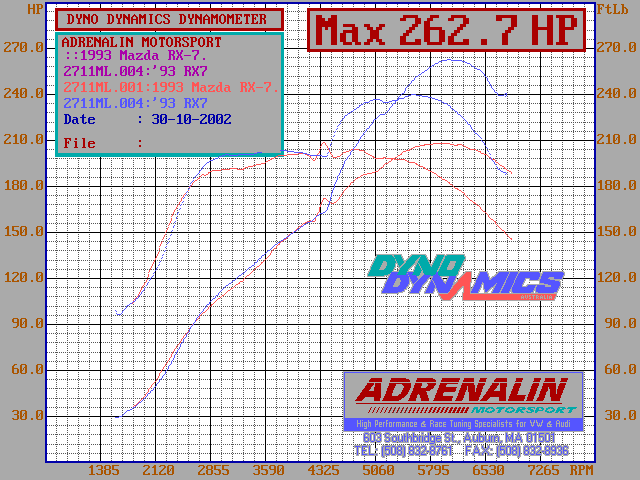

Saxyman990, Curious what you think about our dyno results pre (red lines) and post MP & DP (blue lines). There is bacically no improvement in hp until after the second tubo kicks in. Great for the strip and track time in the upper rpm range though.
https://www.rx7club.com/forum/attach...postid=1181103
https://www.rx7club.com/forum/attach...postid=1181103
#19
Speed Mach Go Go Go
iTrader: (2)
Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 2 Likes
on
2 Posts
Nice feedback "AimedHigh"! I would have expected the opposite results. Oh, no one has mentioned the Tri-Point Cat'?
If these all suck, we need some feedback on the JDM versions. For about $650 shipped to your door their is Border Racing and RE Amemiya's high flow cat's from jt-imports.
If these all suck, we need some feedback on the JDM versions. For about $650 shipped to your door their is Border Racing and RE Amemiya's high flow cat's from jt-imports.
Last edited by GoRacer; 10-31-02 at 05:53 PM.
#20
i'll put a thumbs up for the n-tech hi-flow. I had it, supposedly flows 96% of a midpipe. Car got noticeably louder and power increase was felt all across the board. FYI i also hookedup the airpump.
Danny
Danny
#21
Senior Member
Thread Starter
Join Date: May 2002
Location: NJ
Posts: 492
Likes: 0
Received 0 Likes
on
0 Posts
With the high flow was 330 and with a mp you gain an extra 34 hp. Damn thats alot of hp. How much hp are you actually gaining with a high flow. 5-10 hp for 500 bucks seems a little high, no?
#23
Rotary Freak
Originally posted by RX7Elmo
i'll put a thumbs up for the n-tech hi-flow. I had it, supposedly flows 96% of a midpipe. Car got noticeably louder and power increase was felt all across the board. FYI i also hookedup the airpump.
Danny
i'll put a thumbs up for the n-tech hi-flow. I had it, supposedly flows 96% of a midpipe. Car got noticeably louder and power increase was felt all across the board. FYI i also hookedup the airpump.
Danny
#24
Rotary Freak
Goodfellas is selling one:
http://www.thepartstrader.com/Single...=101&C2ID=1004
That's a good deal. I paid 374.00
http://www.thepartstrader.com/Single...=101&C2ID=1004
That's a good deal. I paid 374.00
#25
Constant threat
I am thinking REAL hard about getting that N-tech, but since I am going to use the airpump, I am curious about the "with some modification" blurb about hooking up the airpump in the ad.......
Are we talking major fab work, or what?
Are we talking major fab work, or what?
