Just a little background, my 93 touring got a make over and i made it a 93 RHD R1/touring model, i got everything changed over from the JDM clip, and i start the car, it won't go above 4k, so i tried a few things that fixed other peoples problems but no luck, i tried to jumper the diagnosis box to make my CEL flash, it stayed steady the whole time, i tried clearing the ECU, no luck. Plus the only other FD owner around here, said that his CEL looked different from mine. Mine does not look like any CEL i have ever seen. Any help? Im looking at getting a PFC to get rid of this problem altogether. any one know if it will plug into a RHD harness?

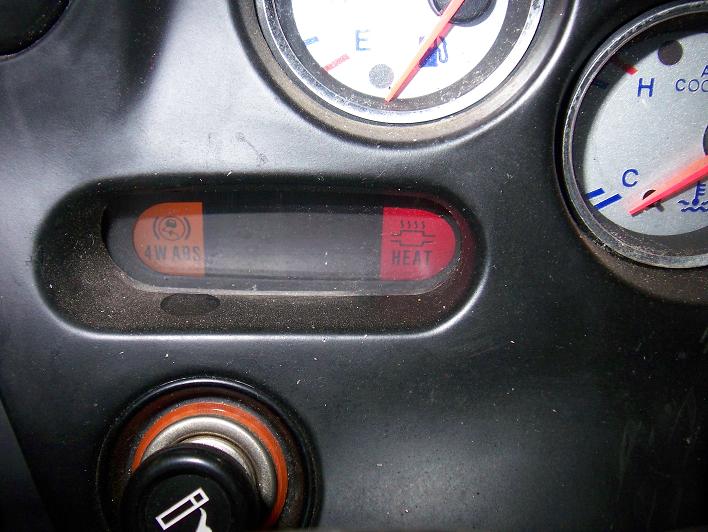

There's no engine light in those pics, just an "ABS" and an "exhaust overheat" light.

I think the codes flashing on the CEL was a US model feature (required by OBD 1).



If no CEL comes on at the "ON" position the problem lies in your ecu. BUT I'm not sure if this may in your case since your cars is a JDM.



Theres no CEL light on JDM models,, theres a way to pull ecu codes by using the diagnostic port under the bonnet,, cant remember how to do it hang on ill find a link.



Here's the link:
https://www.rx7club.com/3rd-gen-archives-73/there-any-chance-read-ecu-codes-without-ecl-238994/



Hey guys, thanks for the help, that link is great! I'm deployed so I will have to wait a few months to see if that all checks out, but i might be able to get a friend just to run over and check it out, all the same thanks again.
