later model or Austrailian or JDM stock airbox?
#1
Constant threat
Thread Starter
later model or Austrailian or JDM stock airbox?
Okay.....I spent the last hour searching for info on these airboxes. Of course you know how searching goes....you find three dozen other interesting topics to go investigate!....but I can't find anything except one mention of an Austrailian SP airbox in a link that had a MAZDASPEED carbon fiber intake box ($1155...!) but the link to the Austrailian airbox was dead.
Seems like the last time we discussed this in detail was back in the "pre-hack" days so maybe that is why I can't find anything(?)
What I remember about this is that Mazda developed it to avoid air-reversion thru the I/C.
Is this box available? Would it work on U.S. spec cars?
Thanks for any info.
Seems like the last time we discussed this in detail was back in the "pre-hack" days so maybe that is why I can't find anything(?)
What I remember about this is that Mazda developed it to avoid air-reversion thru the I/C.
Is this box available? Would it work on U.S. spec cars?
Thanks for any info.
#2
Rotary Enthusiast
Join Date: Feb 2001
Location: Huntington Beach, CA, USA
Posts: 1,025
Likes: 0
Received 4 Likes
on
4 Posts
I'm sure you can get it but you need the '99 front bumper or another '99+ spec bumper for it to work. The newer intake uses the hole in the license plate holder to get air. The newer Feed bumpers also have this hole so you could use that one as well. Maybe Chuck or someone else who can import parts can get it for you, it was stock on all '99+ cars.
#5
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,841
Received 2,604 Likes
on
1,847 Posts
there are 2 factory variations
96-98: N3F1, it still draws air from the ic, but the cross over duct is different, and the duct from the bumper to the ic is different. basically the hole is bigger
99-03: N3G1, this is the 99 spec stuff blah blah.
one thing to note is that the actual air filter box is the same, its just the ducting that changes. and a good plan B is to cut the bottom of the stock air box out and run a baffle like the m2 airbox, between the radiator and frame rail.
96-98: N3F1, it still draws air from the ic, but the cross over duct is different, and the duct from the bumper to the ic is different. basically the hole is bigger
99-03: N3G1, this is the 99 spec stuff blah blah.
one thing to note is that the actual air filter box is the same, its just the ducting that changes. and a good plan B is to cut the bottom of the stock air box out and run a baffle like the m2 airbox, between the radiator and frame rail.
#6
Constant threat
Thread Starter
Originally Posted by j9fd3s
there are 2 factory variations
96-98: N3F1, it still draws air from the ic, but the cross over duct is different, and the duct from the bumper to the ic is different. basically the hole is bigger
99-03: N3G1, this is the 99 spec stuff blah blah.
one thing to note is that the actual air filter box is the same, its just the ducting that changes. and a good plan B is to cut the bottom of the stock air box out and run a baffle like the m2 airbox, between the radiator and frame rail.
96-98: N3F1, it still draws air from the ic, but the cross over duct is different, and the duct from the bumper to the ic is different. basically the hole is bigger
99-03: N3G1, this is the 99 spec stuff blah blah.
one thing to note is that the actual air filter box is the same, its just the ducting that changes. and a good plan B is to cut the bottom of the stock air box out and run a baffle like the m2 airbox, between the radiator and frame rail.
Thanks for the info!
Trending Topics
#8
Constant threat
Thread Starter
Originally Posted by DaiOni
you can add the autoexe airbox to the mix as well...
Where the hell are the filter(s) at for that beast?
Where can one purchase this?
How much?
#9
Lives on the Forum
Originally Posted by bajaman
Wow! Now I LIKE that! Kind of an "enhanced stock" look.
Where the hell are the filter(s) at for that beast?
Where can one purchase this?
How much?
Where the hell are the filter(s) at for that beast?
Where can one purchase this?
How much?
#10
Urban Combat Vet
iTrader: (16)
Originally Posted by bajaman
Wow! Now I LIKE that! Kind of an "enhanced stock" look.
Where the hell are the filter(s) at for that beast?
Where can one purchase this?
How much?
Where the hell are the filter(s) at for that beast?
Where can one purchase this?
How much?
Any fitment issues, specifically with the stock hood and support rod? I noticed what looks to be a molded valley allowing placement of the rod, but no stock rod seat. Still, I really like that.
EDIT: I just found a site. Not many pictures, but if that's the "ram air intake"...$950. LOL. It's not that nice.
http://www.boomplustoys.net/autoexe_rx7.shtml
Last edited by Sgtblue; 01-15-06 at 12:22 PM.
#11
Australian SP
the RX7-SP air box was made to fit the SP intercooler and the small battery with the SP battery tray. The fuse holder had spacers to lift it to make room for the intake duct to the front spoiler.
~Ian.
~Ian.
#12
Eats, Sleeps, Dreams Rotary
Originally Posted by Sgtblue
Any fitment issues, specifically with the stock hood and support rod? I noticed what looks to be a molded valley allowing placement of the rod, but no stock rod seat. Still, I really like that.
EDIT: I just found a site. Not many pictures, but if that's the "ram air intake"...$950. LOL. It's not that nice.
http://www.boomplustoys.net/autoexe_rx7.shtml
maybe Ramy could hook you up on a used one?
#13
Eats, Sleeps, Dreams Rotary
Originally Posted by carbon man
the RX7-SP air box was made to fit the SP intercooler and the small battery with the SP battery tray. The fuse holder had spacers to lift it to make room for the intake duct to the front spoiler.
~Ian.
~Ian.
#14
RX-7 Bad Ass
iTrader: (55)
Knightsports also makes some neat enhanced airbox type intakes -
Can't find bigger pictures, unfortunately. Here's a link to their English parts page -
http://www2.ocn.ne.jp/%7Eknight78/OV...TS_OVERSEA.htm
Dale
Can't find bigger pictures, unfortunately. Here's a link to their English parts page -
http://www2.ocn.ne.jp/%7Eknight78/OV...TS_OVERSEA.htm
Dale
#15
#16

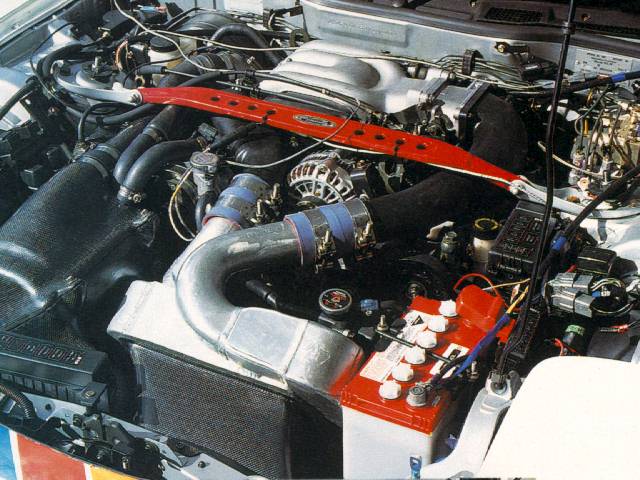

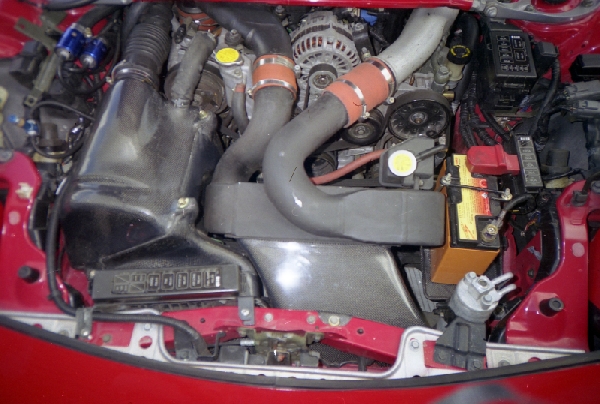

in one of the photos of the RX7-SP air box you can also see a bit of the carbon fibre battery tray and in both the carbon fibre intercooler duct, see the air box is fitted around the SP intercooler.
Ian
Ian
#17
Originally Posted by 7racer
you can find them on yahoo japan for very cheap....
maybe Ramy could hook you up on a used one?
maybe Ramy could hook you up on a used one?
Thanks
~Ramy
PS: Carbon man is the actual guy who made all the carbon fiber parts he's talking about for the SP aka Bathurst FD, in case you guys don't know Contracted by Mazda!
Last edited by FDNewbie; 01-18-06 at 11:57 PM.
#18
Eats, Sleeps, Dreams Rotary
NICE!
Originally Posted by carbon man
in one of the photos of the RX7-SP air box you can also see a bit of the carbon fibre battery tray and in both the carbon fibre intercooler duct, see the air box is fitted around the SP intercooler.
Ian
Ian
