heres one of mine





http://www.flickr.com/photos/vidjaidoerga/9125016051/http://www.flickr.com/photos/vidjaidoerga/9125016051/ by http://www.flickr.com/people/vidjaidoerga/, on Flickr

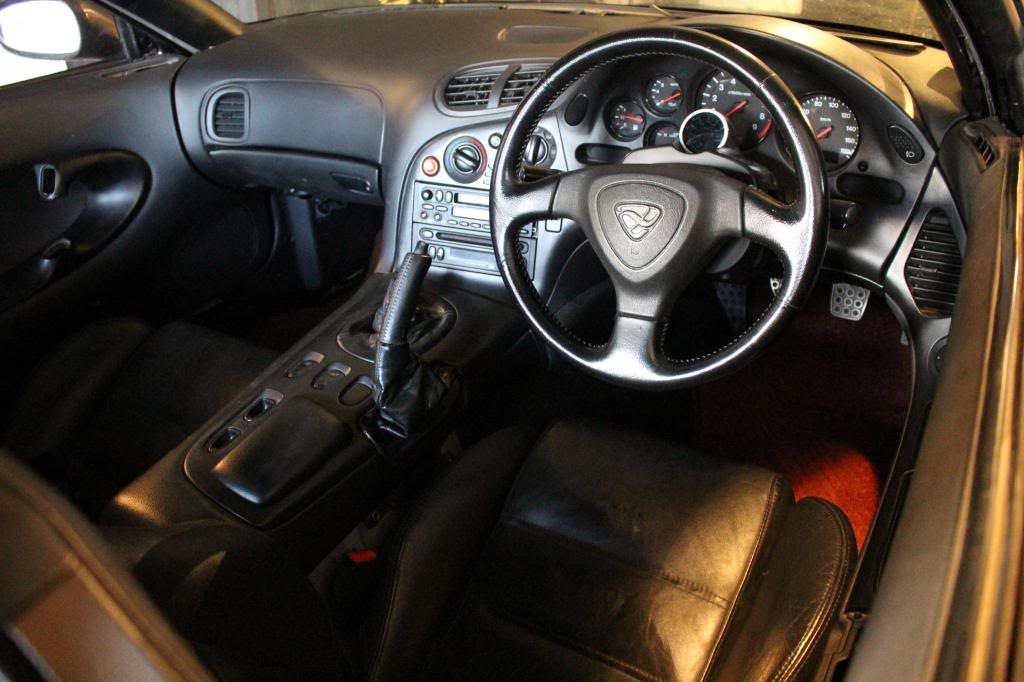

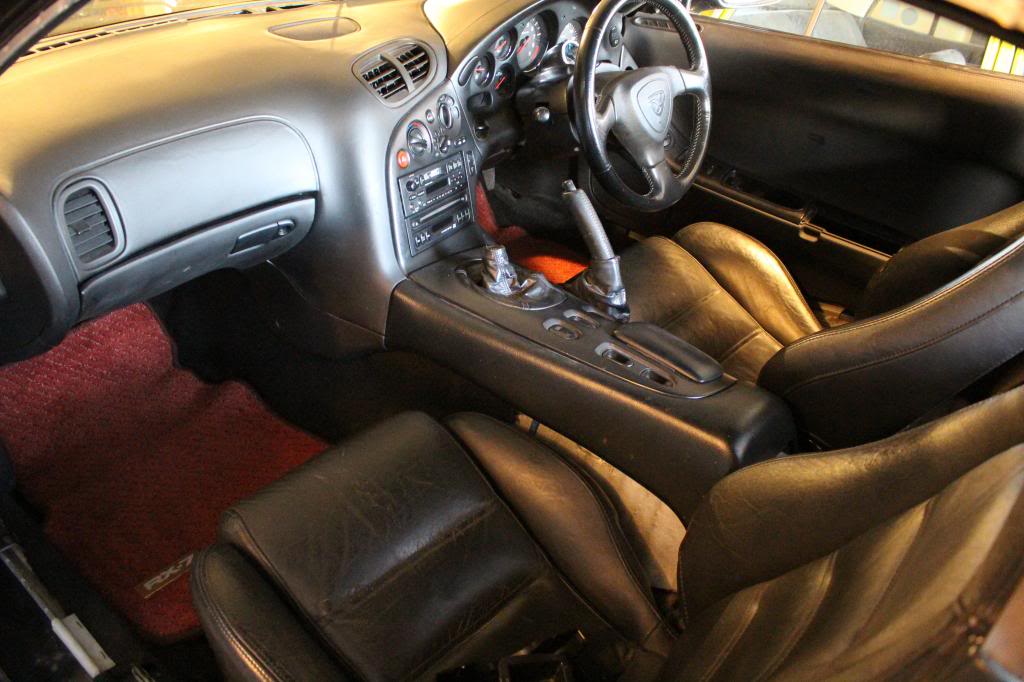

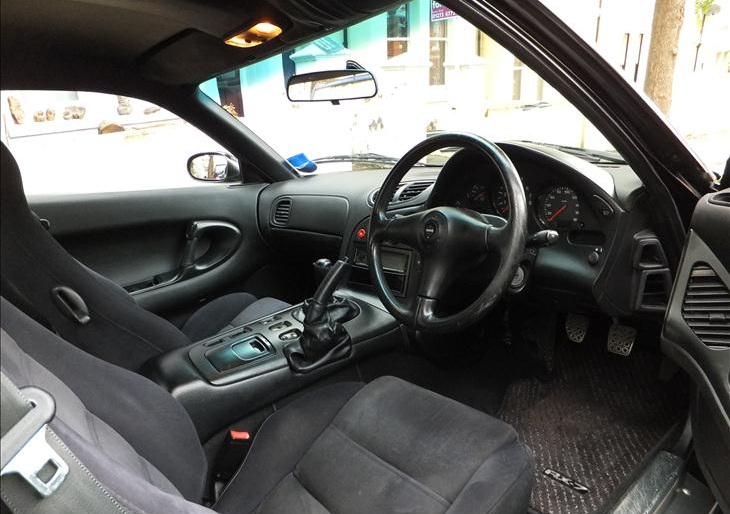

Japanese market Type RS with MOMO wheel



The space above the glove box is so plain...needed something.



Nice interior. What foot rest and gas pedal is that?



... Nardiwheel.jpg fly3podcenterspeakerventgaugesDefi2.jpg



Here's a pic of mine

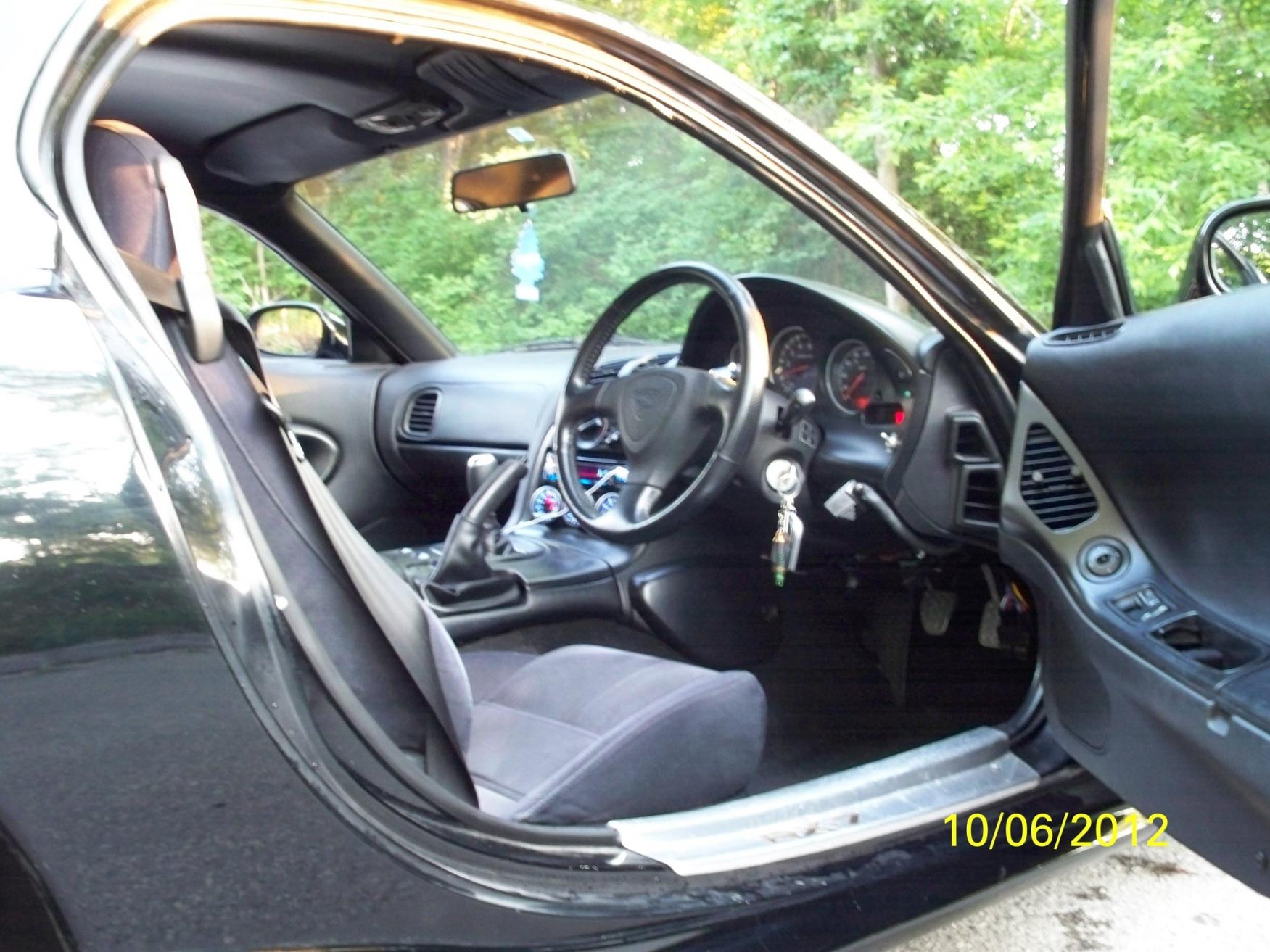

One more with my Coilover key chain



Here's my latest...



Here's mine....

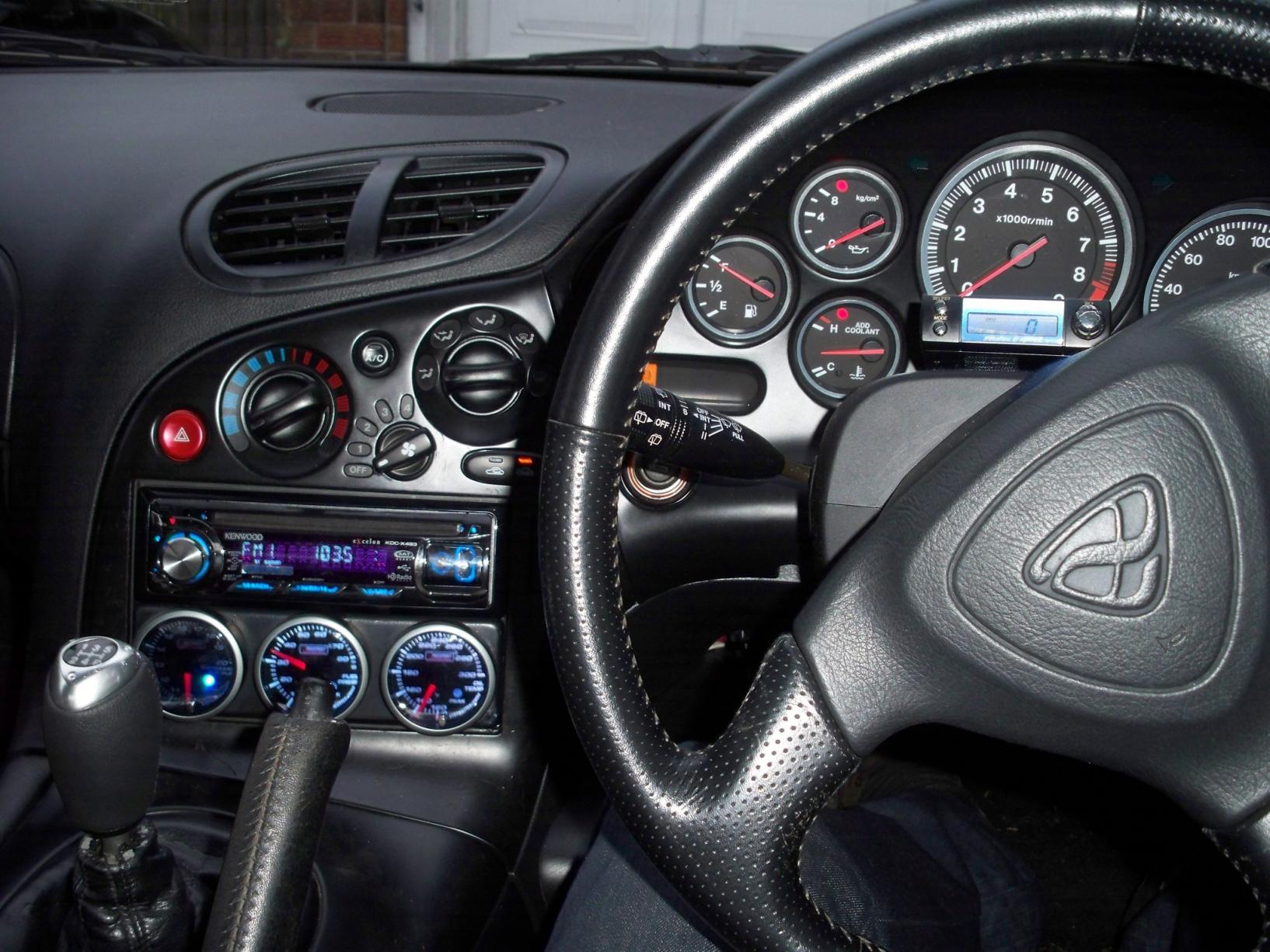

OEM head units are NO longer there.... Now have a sigle din and Greddy T. Timer and Boost controller in the center.





Are those speedhut gauges??? either way it looks good!!

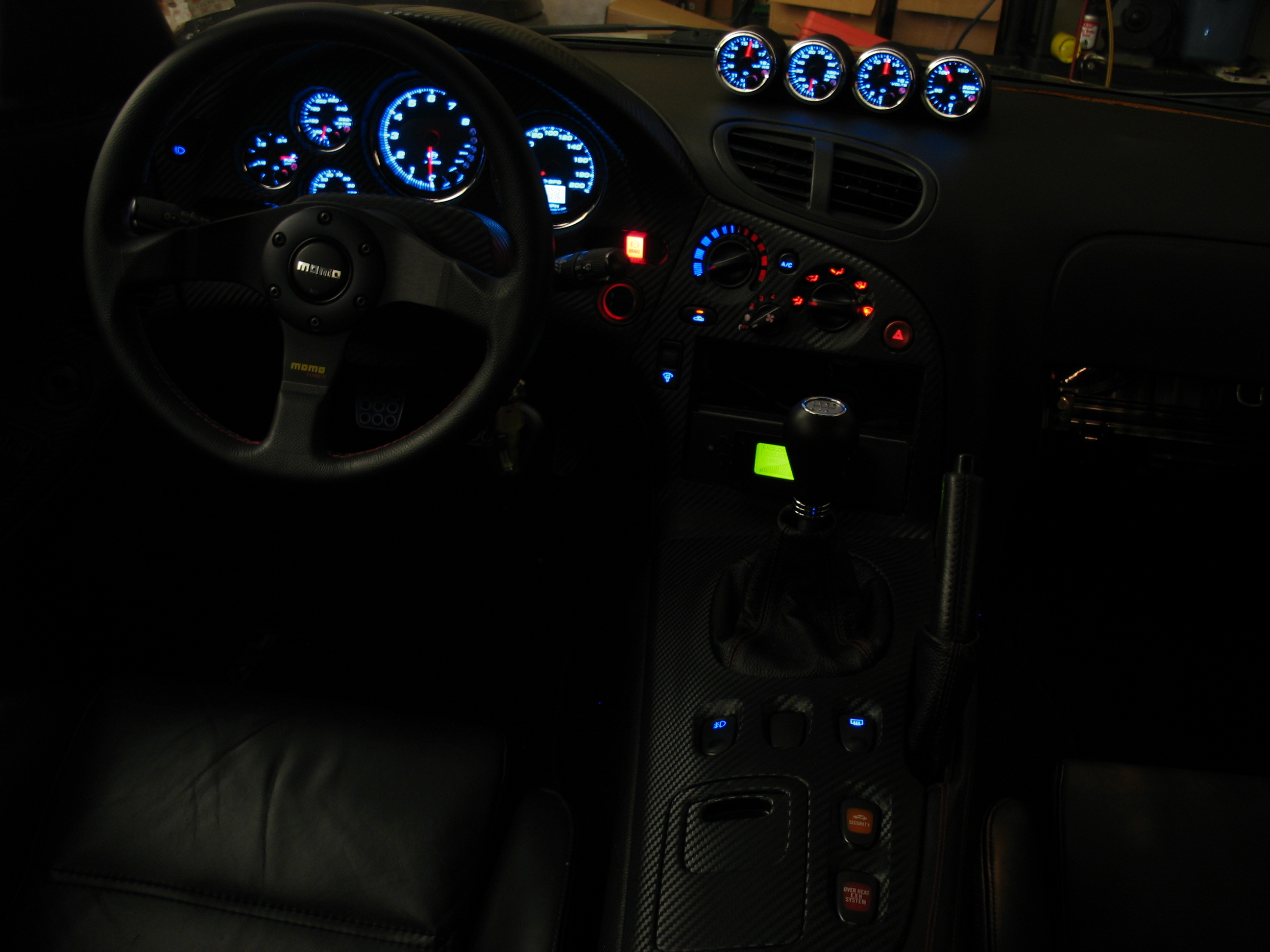

^^ Details on how you changed the backlit color of the buttons please



Yes they are. In fact it the genesis cluster for the FD that spawned all other speedhut conversion tributes

Unfortunately that's not something I have a lot of details on. I basically went to each switch, put a volt meter on the existing backlight to get the stock voltage then used a LED resistance calculator to knock down the voltage to optimal levels for the blue LEDs I purchased years ago. From there I just removed the stock lights and soldered the resistor and LED in place (usually straight to the switch's PCB). It didn't vary much from each switch, but the brand, brightness, voltage, and amperage of the LEDs and resistance of the resistors used escapes me.

Thank you for the complements

Lane



Nice cluster and gauges, is that an analog wideband gauge? Which bezel are you using? Looks a little different than the revolution silver.



I like how you out the gauges in the stereo area. What piece did you use to mount that? Did you cut out the holes yourself and put the gauges in or did you buy it with the holes precut?



Well, the WB gauge uses a needle, so I guess you can say its analog
It's actually pretty easy to read when tuning, but I do use digital datalogging when tuning.
The main gauge bezels are stock. The dash pod bezels are Legacy Classic Chrome. They seem to match the stock rings pretty well.

Lane



just looks perfect in my books! nice. clean and simple



Good to know, I too have an analog WB gauge from Speedhut, but I'm still finishing up a few things on the car so I have not driven with them since installed, hopefully soon

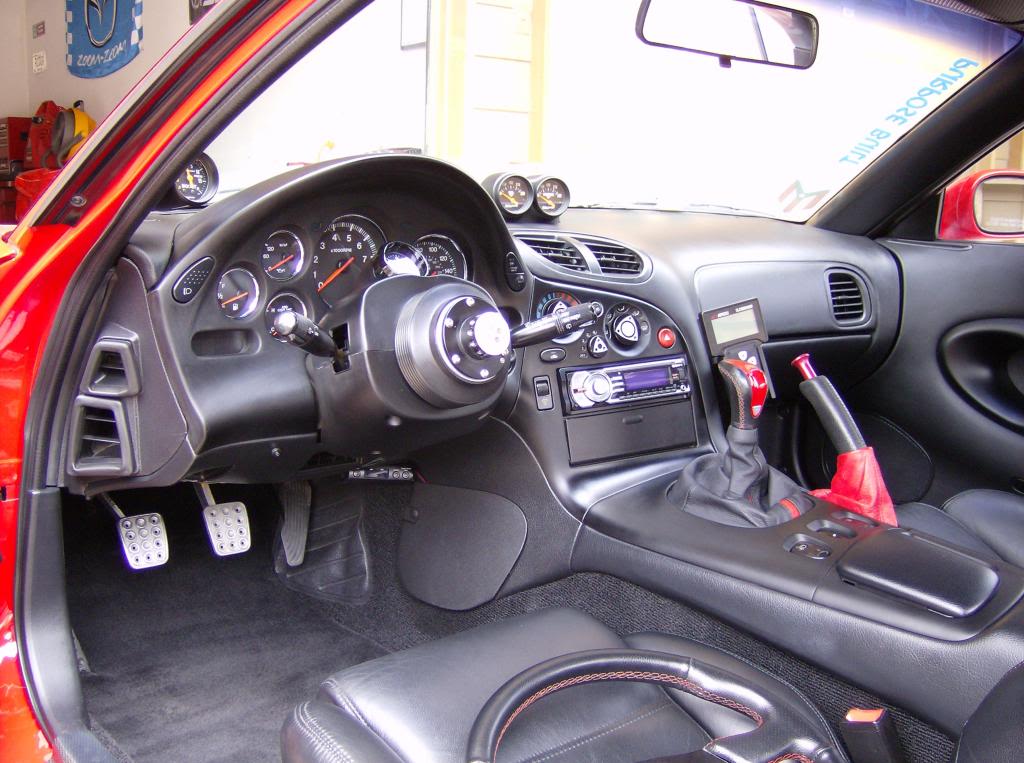

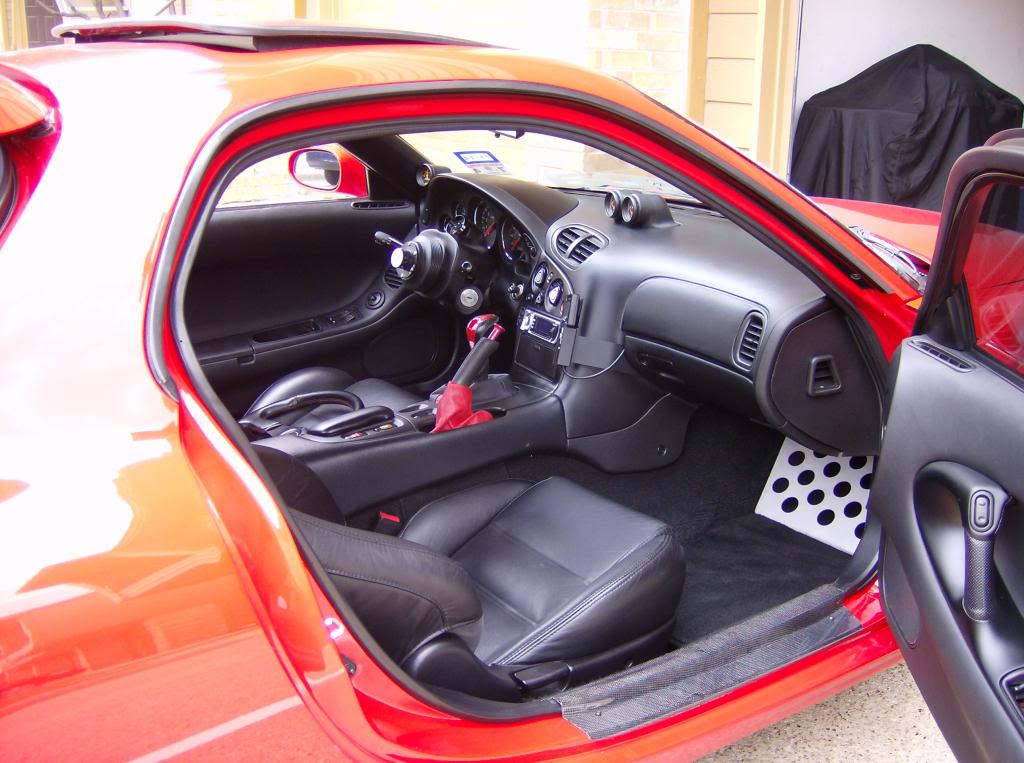

Some pics of my recent interior mods.









a little out of date since this is before my rmagic commander holder, map pocket lid, pass door handle and window switch showed up





Most recent pic of mine. Lathewerks shift ****.
