Interesting Problem, crank, no fuel, no spark
Hi. So this problem has boggled a lot of people that i've talked to and I'm finally going to be posting up the situation to see if anyone can help! First things first I will reply relatively frequently. I do have a camera and I can take photos of whatever is needed to help clarify the problem.
The Car its History
1993 Mazda RX7
Bought salvage title rolling shell, was an automatic originally, previous owner swapped to manual. Purchased a JDM engine/transmission from a 94 rx7 dropped it in. Car ran fine until I pulled out engine/transmission to replace twin turbos which were leaking oil.
Current Modifications
HKS downpipe
Apexi Intake
Blitz 4" Exhaust
Viper Alarm System
Walbro Fuel Pump
The Problem
Car will not start, it will crank fine, no spark, no fuel. Self Diagnostic Tester will not work (CEL stays ON), fans turn on as soon as ignition 2 is turned on.
Checked Fuel System:
fuel pump will turn on, just fuel speed relay will not turn on.
Checked terminal 1k on ECU, it has power (2 voltsish I can check again)
Checked speed relay, circuit opening relay, and main relay, relays respond when terminals tapped
Checked Ignition System:
spark plugs won't fire, power at ignition coils
Checked Crank Angle Sensor (as per manual):
No continuity between Ground and 4G (ecu harness side) and Ground and 4H
Resistance between 4G and 4H is within spec
Replaced ECU with known working ECU still no start
So yeah I'll be sitting here intently waiting for your guys thoughts!
The Car its History
1993 Mazda RX7
Bought salvage title rolling shell, was an automatic originally, previous owner swapped to manual. Purchased a JDM engine/transmission from a 94 rx7 dropped it in. Car ran fine until I pulled out engine/transmission to replace twin turbos which were leaking oil.
Current Modifications
HKS downpipe
Apexi Intake
Blitz 4" Exhaust
Viper Alarm System
Walbro Fuel Pump
The Problem
Car will not start, it will crank fine, no spark, no fuel. Self Diagnostic Tester will not work (CEL stays ON), fans turn on as soon as ignition 2 is turned on.
Checked Fuel System:
fuel pump will turn on, just fuel speed relay will not turn on.
Checked terminal 1k on ECU, it has power (2 voltsish I can check again)
Checked speed relay, circuit opening relay, and main relay, relays respond when terminals tapped
Checked Ignition System:
spark plugs won't fire, power at ignition coils
Checked Crank Angle Sensor (as per manual):
No continuity between Ground and 4G (ecu harness side) and Ground and 4H
Resistance between 4G and 4H is within spec
Replaced ECU with known working ECU still no start
So yeah I'll be sitting here intently waiting for your guys thoughts!
Last edited by xgracer; 04-19-14 at 06:04 PM. Reason: added details
#2
RX-7 Bad Ass
iTrader: (55)
Fans turning on with the key usually mean the ECU harness isn't grounded out. There is a ring terminal on the ECU harness that bolts to the top of the rear rotor housing - is that connected?
Also, there is a blue and a white connector from the ECU harness that plugs into the dash harness inside the car, make sure those are plugged in.
Checked all the ECU fuses?
Does the fuel pump run and system build pressure when you jumper the F/P and ground in the diagnostic terminal?
Dale
Also, there is a blue and a white connector from the ECU harness that plugs into the dash harness inside the car, make sure those are plugged in.
Checked all the ECU fuses?
Does the fuel pump run and system build pressure when you jumper the F/P and ground in the diagnostic terminal?
Dale
#4
Junior Member
Thread Starter
iTrader: (1)
Join Date: Sep 2008
Location: Millbrae, CA
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Response to Dale Clark
Fans turning on with the key usually mean the ECU harness isn't grounded out. There is a ring terminal on the ECU harness that bolts to the top of the rear rotor housing - is that connected?
Also, there is a blue and a white connector from the ECU harness that plugs into the dash harness inside the car, make sure those are plugged in.
Checked all the ECU fuses?
Does the fuel pump run and system build pressure when you jumper the F/P and ground in the diagnostic terminal?
Dale
Also, there is a blue and a white connector from the ECU harness that plugs into the dash harness inside the car, make sure those are plugged in.
Checked all the ECU fuses?
Does the fuel pump run and system build pressure when you jumper the F/P and ground in the diagnostic terminal?
Dale

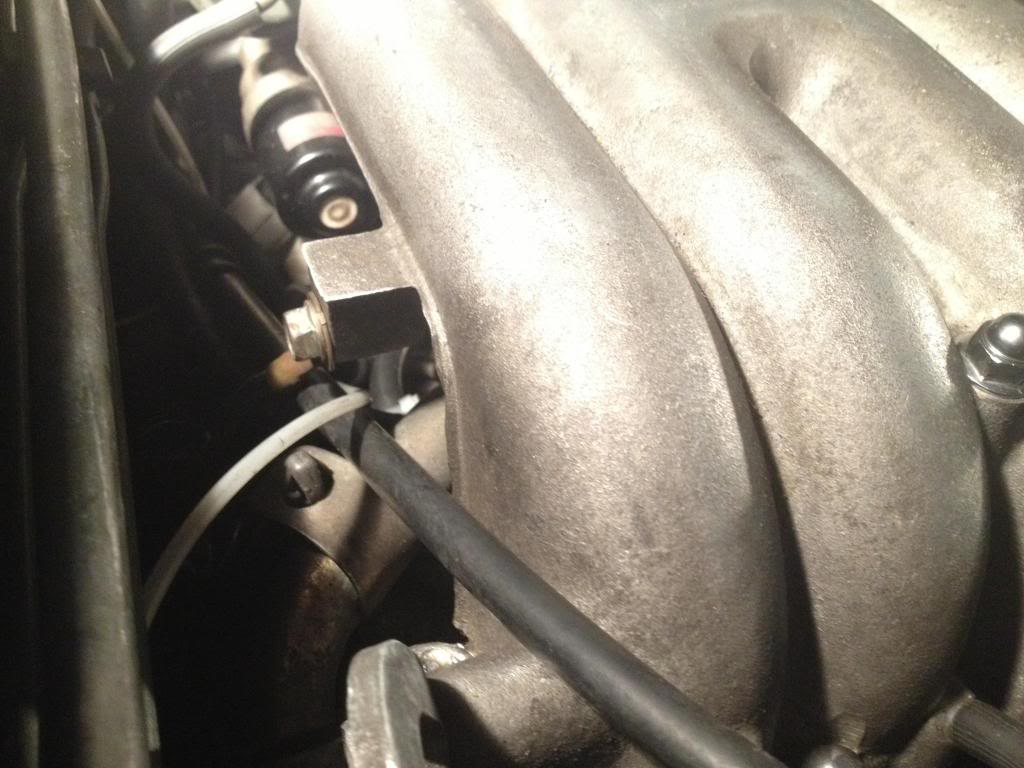

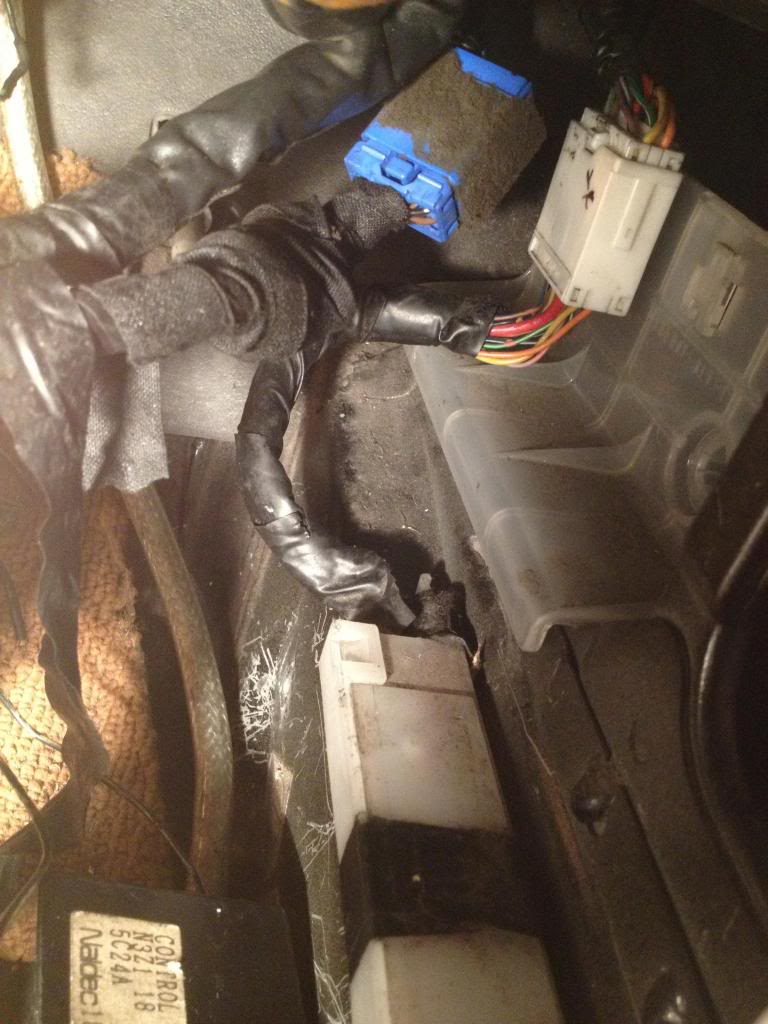

The white and blue connectors you're talking about (i think its X-05 and x-07) are both connected as are the 4 yellow ecu blocks

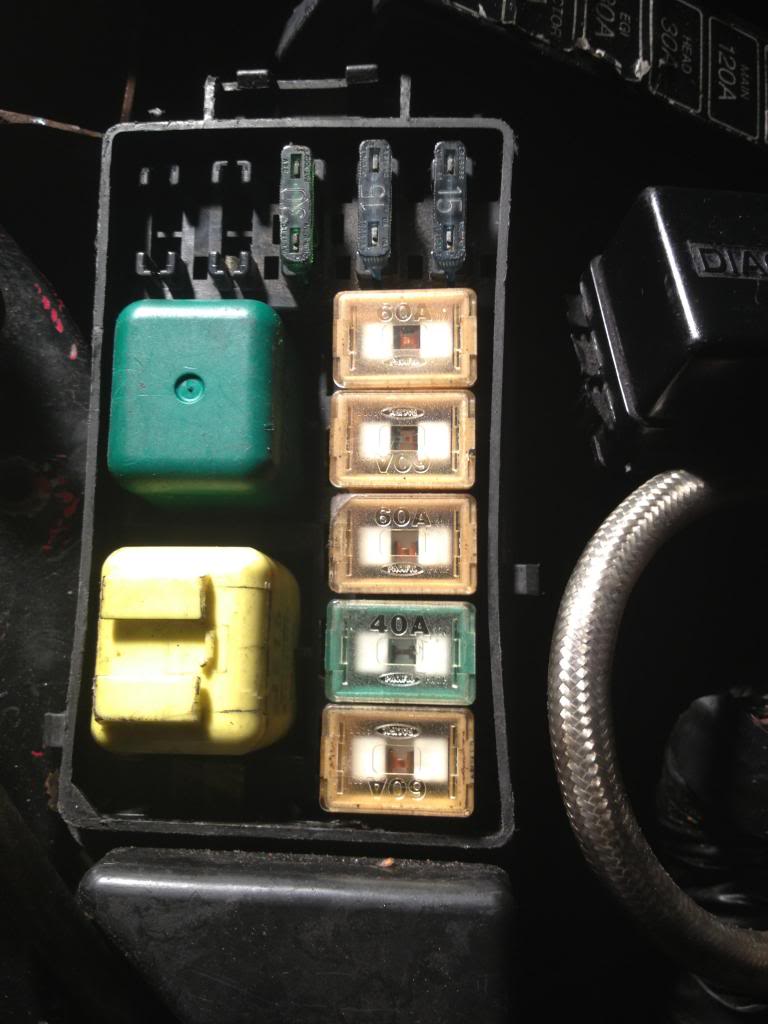

I'm not sure which ECU fuses you're talking about. The fuse block with the engine 15a is fine as are the fuses in the engine bay.

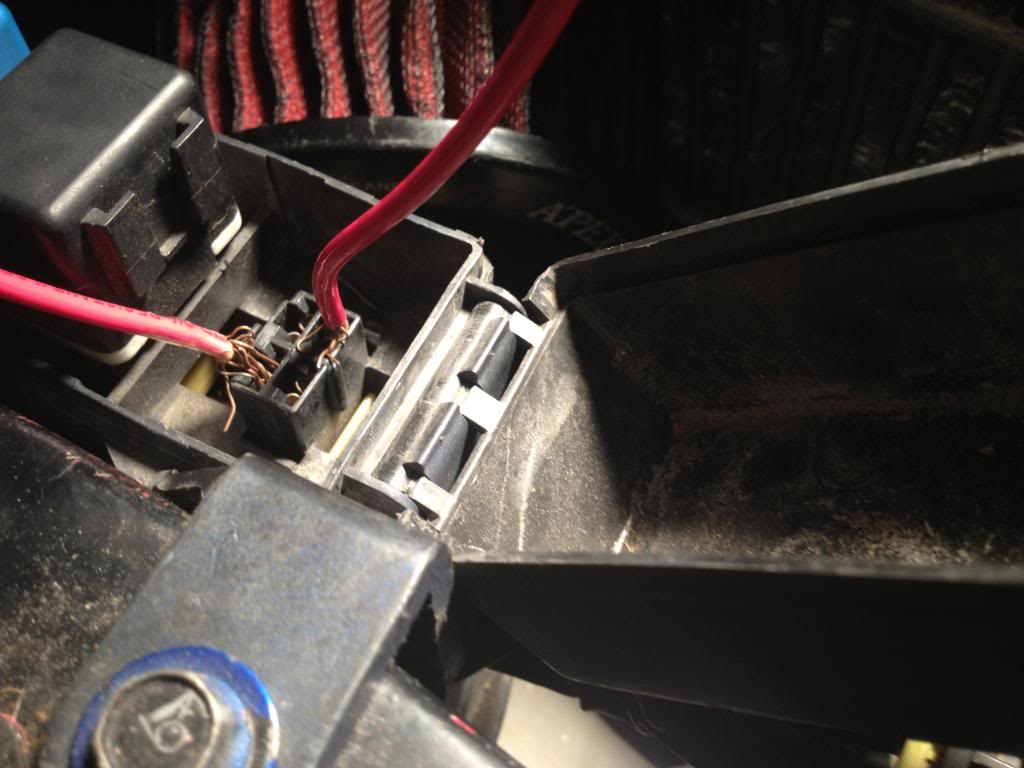

The fuel pump does not run and build pressure when you jump the f/p to ground in the diagnostic terminal. It does work if you bypass the fuel pump speed relay by completing the relay's circuit allowing 12v to pass thru, activating the fuel pump.
sorry for the large sizes XD i figured bigger is better! =]
#5
Junior Member
Thread Starter
iTrader: (1)
Join Date: Sep 2008
Location: Millbrae, CA
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Response to Rx7aholic

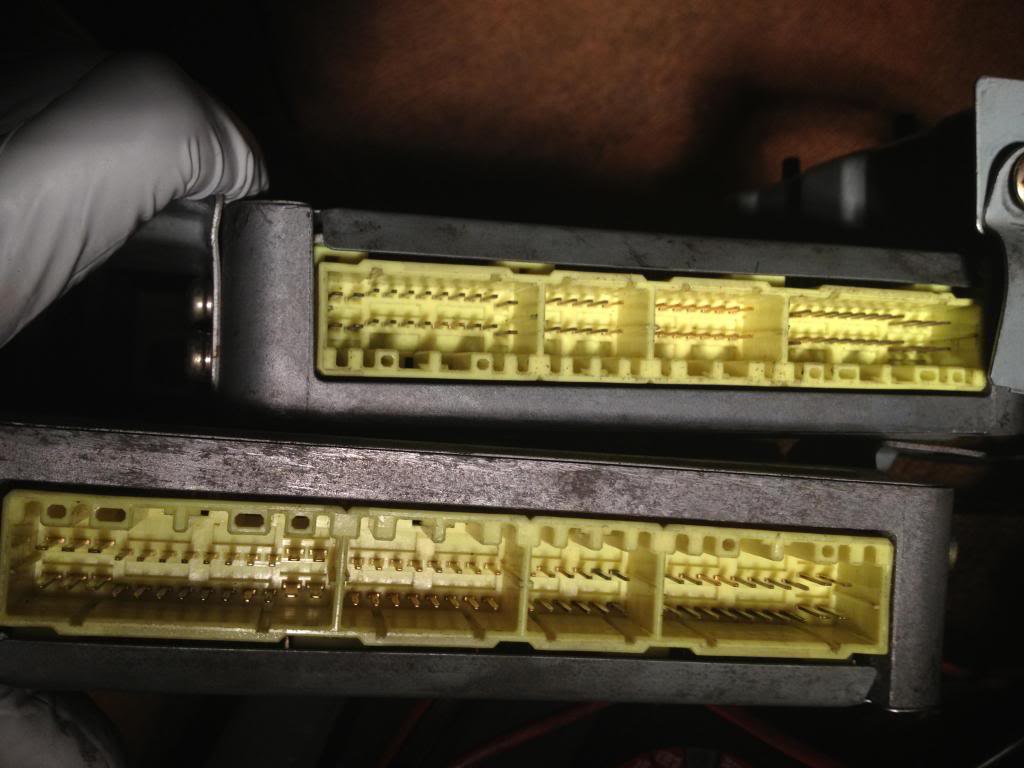

I've checked the connection points at the ECU on both ECUs to check the pins and they seem to be okay.
#7
Junior Member
Thread Starter
iTrader: (1)
Join Date: Sep 2008
Location: Millbrae, CA
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
To dguy:

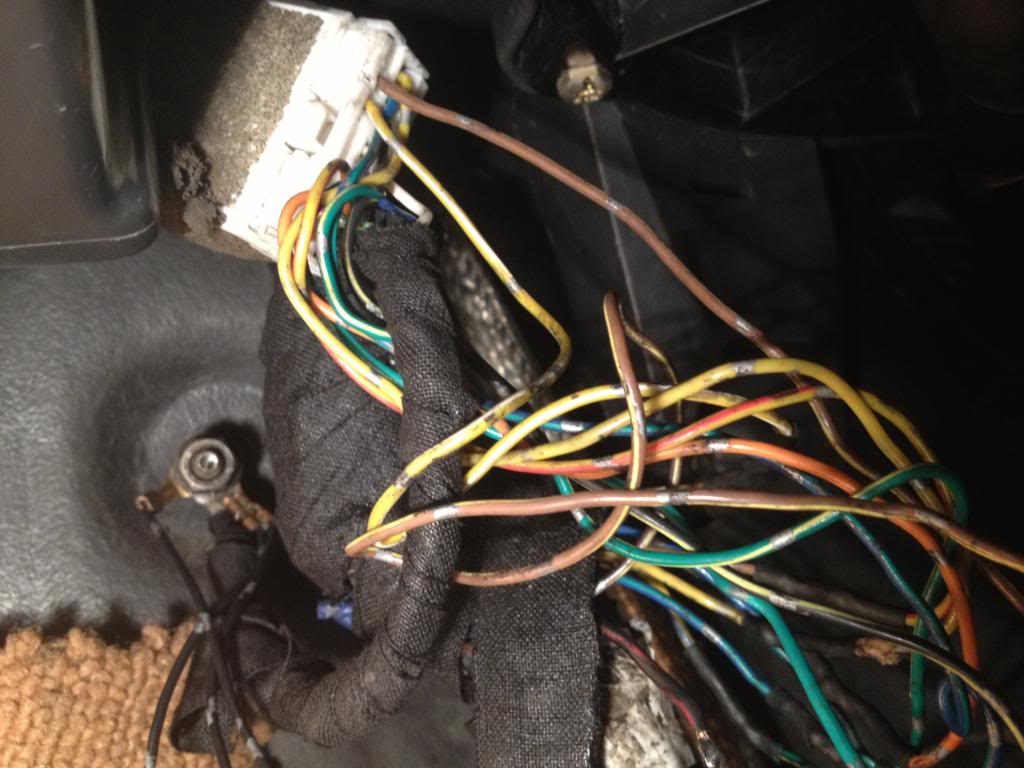

I actually did that myself when i dropped in the engine the first time (its an auto chassis harness to manual engine harness) Before I dropped the engine back in I also checked continuity for all the pins on the harness and verified that there is full continuity on there. If there's something specific that you think I should check for I'm all ears. I've already checked the grounds, the fuel pump relay, and the CAS.
I actually did that myself when i dropped in the engine the first time (its an auto chassis harness to manual engine harness) Before I dropped the engine back in I also checked continuity for all the pins on the harness and verified that there is full continuity on there. If there's something specific that you think I should check for I'm all ears. I've already checked the grounds, the fuel pump relay, and the CAS.
