intake manifold removal question?????
#1
OG
Thread Starter
intake manifold removal question?????
http://www.rx7turboturbo.com/robrobinette/manifold.htm
I was reading this web site i found in the forum that is very helpfull and i noticed that it warns when putting the manifold back togther ".....to be careful not to swap the two electrical solenoid connectors on the front of the manifold, If you do you only get about 7 lbs. of boost from your second turbo...."
I checked the diagrams and i cant figure out which ones the site is talking about? Can anyone help me ????

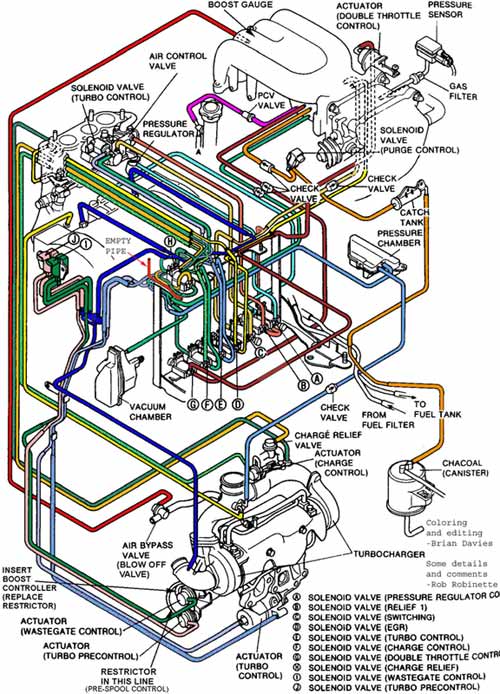

I have this problem and i dont know which ones this site is talking about. I have the diagram attached so if you know please guide me or draw it in the pic or something. Thanks
I was reading this web site i found in the forum that is very helpfull and i noticed that it warns when putting the manifold back togther ".....to be careful not to swap the two electrical solenoid connectors on the front of the manifold, If you do you only get about 7 lbs. of boost from your second turbo...."
I checked the diagrams and i cant figure out which ones the site is talking about? Can anyone help me ????
I have this problem and i dont know which ones this site is talking about. I have the diagram attached so if you know please guide me or draw it in the pic or something. Thanks
#2
Lives on the Forum
Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,716
Likes: 0
Received 8 Likes
on
8 Posts
Yep, the two solenoids at the front are the wastegate and pre-control solenoids. They are marked "I" and "J" on the diagram.
They are the two solenoids all by themselves at the front of the UIM, and not in the rat's nest.
They are the two solenoids all by themselves at the front of the UIM, and not in the rat's nest.
