inline fuel filters and flow
I bought a Fore Innovations fuel filter (8AN,F-10 Inline Modular Fuel Filter) to put it behind the UIM, but with the fittings it's too long so I'm switching to mounting two smaller filters (6AN) and plan to mount them, pressure sensors and check valves to the rear subframe.
I'm looking at these two filters (with an open mind to other options, but I need to get them ASAP so I can get the car back on the road)...
http://www.skspeed.com/ProductDetail...=XRP704406FS10
RobbMc Performance Products - Fuel Filters
I know the sizes on each of the filter bodies but I only know the flow for the RobbMc filter. I'm going for 10 micron and as small as possible while having enough LPH/GPH flow. I'm leaning toward getting the RobbMc PN 1073 large filter. But has anyone ever used that type of filter before and is it reliable, etc? I don't think I've seen that type of filter outside of using one for my water injection. And does anyone have any other input on things I should be considering?
****
I'm looking at these two filters (with an open mind to other options, but I need to get them ASAP so I can get the car back on the road)...
http://www.skspeed.com/ProductDetail...=XRP704406FS10
RobbMc Performance Products - Fuel Filters
I know the sizes on each of the filter bodies but I only know the flow for the RobbMc filter. I'm going for 10 micron and as small as possible while having enough LPH/GPH flow. I'm leaning toward getting the RobbMc PN 1073 large filter. But has anyone ever used that type of filter before and is it reliable, etc? I don't think I've seen that type of filter outside of using one for my water injection. And does anyone have any other input on things I should be considering?
****
#2
GorillaRaceEngineering.co
iTrader: (1)
What is your current fuel type and power output? I use those xrp style filters all the time with no issues. I've made a ton of power through them too. That style is not too restrictive. I cant say much about the Robbmac, for I have not tested any of them. But, they do "look" more restrictive.
-J
-J
#3
Any particular reason you dont want to mount it in the factory fuel filter position?
All things equal, a larger filter will allow a longer service life. More surface area means it will take more gunk to have a significant effect on its flow. If I had a tiny little filter, I would feel like I need to always crack it open and check on it.
All things equal, a larger filter will allow a longer service life. More surface area means it will take more gunk to have a significant effect on its flow. If I had a tiny little filter, I would feel like I need to always crack it open and check on it.
#4
Make an assessment...
Thread Starter
iTrader: (3)
What is your current fuel type and power output? I use those xrp style filters all the time with no issues. I've made a ton of power through them too. That style is not too restrictive. I cant say much about the Robbmac, for I have not tested any of them. But, they do "look" more restrictive.
-J
-J

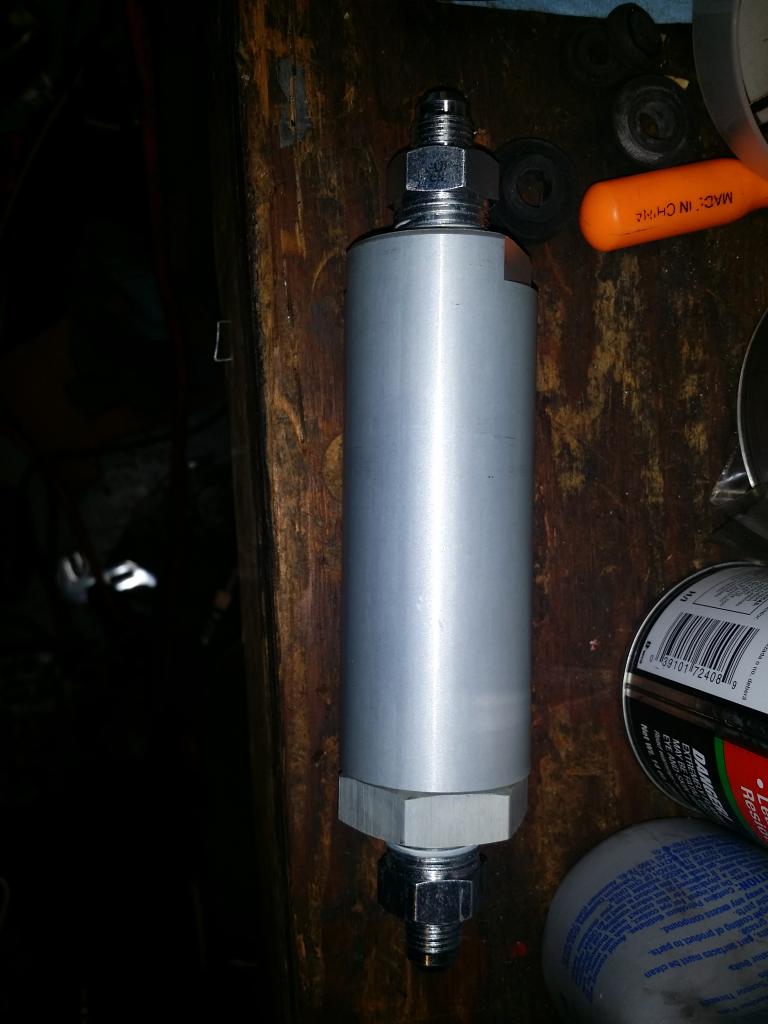

Dammit. I bought two of the RobbMc filters last night lol. The site says they'll flow 200 GPH though and one Stealth 340 puts out 90 GPH, so hopefully I'll be alright. I know what you mean though, it looks restrictive as hell. But that's why I got it, because I didn't have any numbers for the XRP filters but had them for the RobbMc.
Any particular reason you dont want to mount it in the factory fuel filter position?
All things equal, a larger filter will allow a longer service life. More surface area means it will take more gunk to have a significant effect on its flow. If I had a tiny little filter, I would feel like I need to always crack it open and check on it.
All things equal, a larger filter will allow a longer service life. More surface area means it will take more gunk to have a significant effect on its flow. If I had a tiny little filter, I would feel like I need to always crack it open and check on it.
I'm running fuel through two stock -6 size lines to the front, and I'm putting pressure sensors and check valves in the lines in the back of the car, so I can't run them into a larger filter unless it's in the engine bay and I don't have room for that, thus why I'm scrapping using the Fore Innovations filter (it's an awesome filter with a 10 micron stainless steel element, it's just too big for what I'm trying to do).
#7
You mean above the diff, where NO ONE wants a fuel filter? LOL I moved the stock filter to the subframe before already.
I'm running fuel through two stock -6 size lines to the front, and I'm putting pressure sensors and check valves in the lines in the back of the car, so I can't run them into a larger filter unless it's in the engine bay and I don't have room for that, thus why I'm scrapping using the Fore Innovations filter (it's an awesome filter with a 10 micron stainless steel element, it's just too big for what I'm trying to do).
I'm running fuel through two stock -6 size lines to the front, and I'm putting pressure sensors and check valves in the lines in the back of the car, so I can't run them into a larger filter unless it's in the engine bay and I don't have room for that, thus why I'm scrapping using the Fore Innovations filter (it's an awesome filter with a 10 micron stainless steel element, it's just too big for what I'm trying to do).
Trending Topics
#8
Make an assessment...
Thread Starter
iTrader: (3)
Ok gotcha. I think you're the only person I've ever come across that didn't mind the stock location, other than people that have never changed their filter lol. I'm 6'3" with pretty large hands so it's a hassle for me, but I've done it on my car and a friend's.
#11
Make an assessment...
Thread Starter
iTrader: (3)
I've never even seen a 7 micron filter lol. I didn't even know those existed.
I doubt it. I really want to, but I'm super busy with work the rest of this month. Working two or three weeks straight. I'm about to have the car up and running too, which really gets me. I'm sure I'll never hear the end of it from Jose lol.
I doubt it. I really want to, but I'm super busy with work the rest of this month. Working two or three weeks straight. I'm about to have the car up and running too, which really gets me. I'm sure I'll never hear the end of it from Jose lol.
