Ignition/steering column question

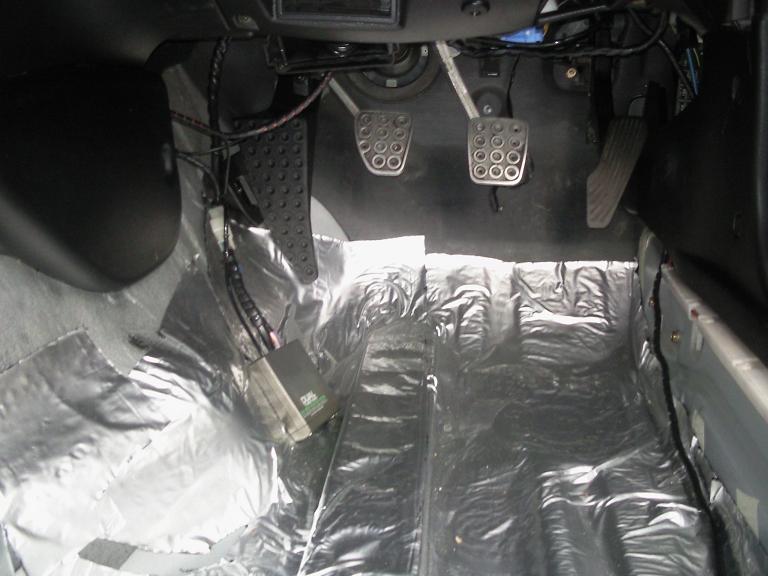

I recently bought a project FD and was wondering what these wires are for under the steering column, I'm in the process of putting in a new ignition so these wires were left out. If I had taken it all apart there would be no question but this car has wires all over the place lol. Here are some pics.
If the 2 green wires are grounds you can see in the last pic where I think they might go?
If the 2 green wires are grounds you can see in the last pic where I think they might go?
05-14-09, 03:40 PM
#2
Junior Member
Thread Starter
iTrader: (1)
Join Date: May 2009
Location: VA
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
Ok after reading some of the workshop manual I believe the 3 connectors with the rubber covers are points of contact to hook up an ignitor checker during diagnosis I could be wrong? But as far as the other 2 green wires no clue other than grounds.
05-14-09, 04:36 PM
#5
Junior Member
Thread Starter
iTrader: (1)
Join Date: May 2009
Location: VA
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
Man your absolutely right I feel like a dumbass lol I traced the blitz TT wires and harness and yeah they are off of that. But there's nothing for them to hook into I wonder where they go and what feature they are for.
Trending Topics
05-15-09, 05:48 PM
#9
Junior Member
Thread Starter
iTrader: (1)
Join Date: May 2009
Location: VA
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
Well I can't find any kind of wiring diagram for the blitz tt online so I'm just going to let those 3 wires hang and hope everything runs ok lol. As far as those 2 skinnier green wires with the metal flange I hope they're just grounds because thats what I'm going to make them.
