Hi guys,

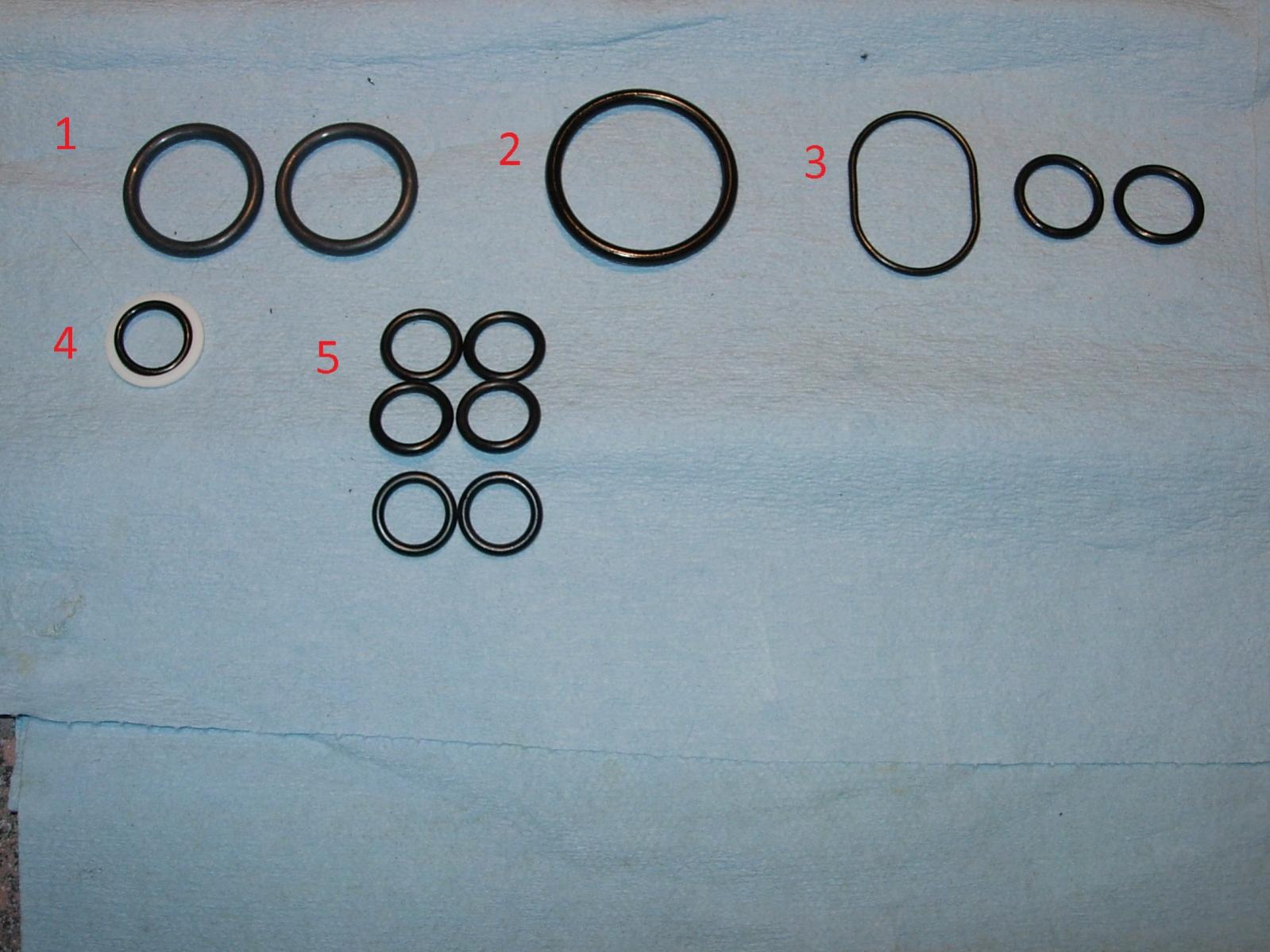

I got these o-rings in an engine o-rings rebuild kit. If I remember correctly there is a thread similar to this one but I haven't found it. Can you help me identify where some of these are goiing?

1) ?
2) ?
3) OMP
4) Front cover
5) ?

The two on the right of 3 are for the oil pedestral.

Thanks

flaco

iTrader: (7)

1.intake
2.cas oring
3.omp
4.oil pedestal
5.front cover
6.dowell pins

thewird

iTrader: (8)

1) oil filter pedestal
2) oil filler neck
3) OMP
4) Front cover
5) dowel orings

thewird

flaco

iTrader: (7)

wrong you got a D+

thewird

iTrader: (8)

Yum

thewird

FD3S_wanted

iTrader: (5)

Dowel pin o-rings are already in the engine.

The part number of the o-ring kit is N318-10-S60A if that could help.
