rdahm

iTrader: (6)

So I'm sitting here polishing my LIM. My wrist is busier than it is on lonely Friday night. And it hits me. Less surface area is less heat transfer. And with this baby sitting next to the turbo and all, that's gotta count for something. lol at least that's what I tell myself. .004 degree difference FTW

staticguitar313

iTrader: (2)

o_0??? Who gibs a **** keep polishing. Or sand and do something unique. I like sanding swirls with metalcast over them.

rdahm

iTrader: (6)

That's sharp. I'll post some pics of my progress. I hand made my block off plates and polishing them too.

XLR8

iTrader: (52)

Ceramic chrome coating FTW...

http://irperformance.com/?page_id=113

takhay

I don't know if i can take this... I'm polishing my LIM too and i think my hand from the wrist down is about to fall off... glad to see i'm not the only one polishing the metal tonight... lol

CrispyRX7

iTrader: (139)

Invest in a buffing wheel and a dremel tool
Regards,
Crispy

rdahm

iTrader: (6)

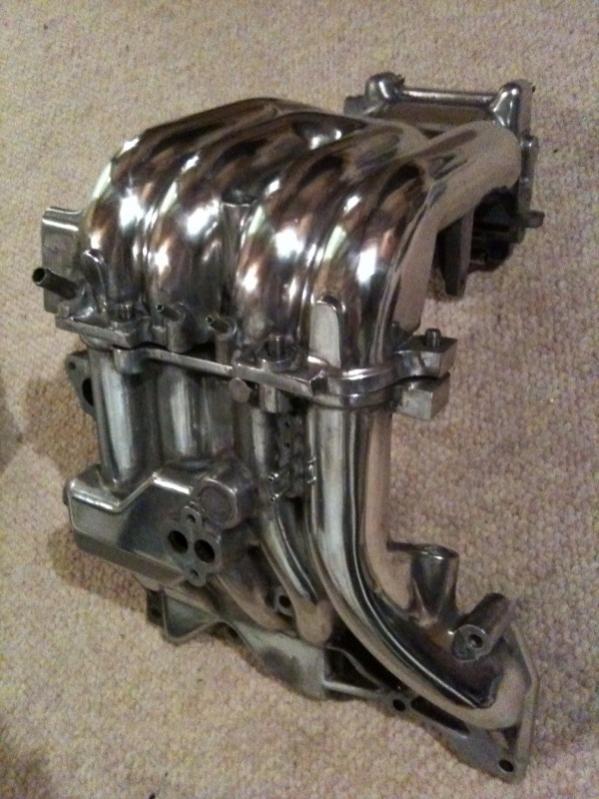

current progress. my dremel is covered in aluminum dust from the grinding

rdahm

iTrader: (6)

Thanks for the link, i might have them ceramic coat my turbo exhaust housing.

I love the look of aluminum polished, but its more upkeep than coatings. whew

widebodyseven

iTrader: (17)

Looks good

Double_J

iTrader: (28)

Looks pretty good. What kind of polish did you use, just any kind from the store? I assume you had to degrease it first.

rx927

iTrader: (3)

Estimated time do both manifolds?

rdahm

iTrader: (6)

I
1) degreased quickly (the grease helps keep the sanding oiled a bit.
2) dremel tool with 100-120 grit baby wheel
3) dremel again with 200-240
4) hand sand in an opposite pattern with 400 grit
5) hand sand in the correct pattern with 1000grit
6) buffing wheel with mothers mag and aluminum polish
7) hand polish lightly.
8) figure how to keep it looking good.

i do cross grain sanding because first time i did my UIM all one way and it left the obvious marks that should have been sanded down.

my LIM took 6-8 hours. The time flies whew.
my UIM took a little less, because its simpler

FDSeoul

iTrader: (8)

here's my Stuff

XLR8

iTrader: (52)

I agree. I think the coating will do great for what I am doing. I don't think it will be quite as bright as polishing, but it will look good.

Props for the work man. The pic you posted looks great....

rdahm

iTrader: (6)

fdseoul, im getting rid of my efini y pipe, it was polished too, but the GT35r has its housing polished, so i think that balances. Dude your UIM is dead sexy. the two trouble areas for me are by the vacuum lines where the UIM bolts to the LIM. so many twists and turns.

XLR8 i honestly would have coated it to begin with. I hate the murky look of powder coating when it tries to look like polished metal, but it looks great in many situations.

EvilAreXeven

iTrader: (20)

Holy crap, FDseoul, who did your polishing work???

FDSeoul

iTrader: (8)

i have lots of time @ the office between shifts

JStrib

iTrader: (6)

Holy shat FDSeoul, that looks awesome.

staticguitar313

iTrader: (2)

lol, I can't imagine spending the time to do both manifolds, mine was half done when I got it, got to a point where i thought having a swirled design under red would be more unique.

FDSeoul

iTrader: (8)

it's not for everyone but, if you like polished things in the ebay this is how i have my fd at the moment.

bikojohn

chuck the dremel. take a look at the tools eastwood has for this. you will never look back.

MrNizzles

iTrader: (5)

^ roflmao

EvilAreXeven

iTrader: (20)

Wow, top notch. Would you consider polishing mine?? I'm dead serious. For money, of course.

RotaryEvolution

iTrader: (30)

where did you find that p/s pump pulley?

MrNizzles

iTrader: (5)

^ he polished that too!
