How's This For A FMIC?
Hey guys,

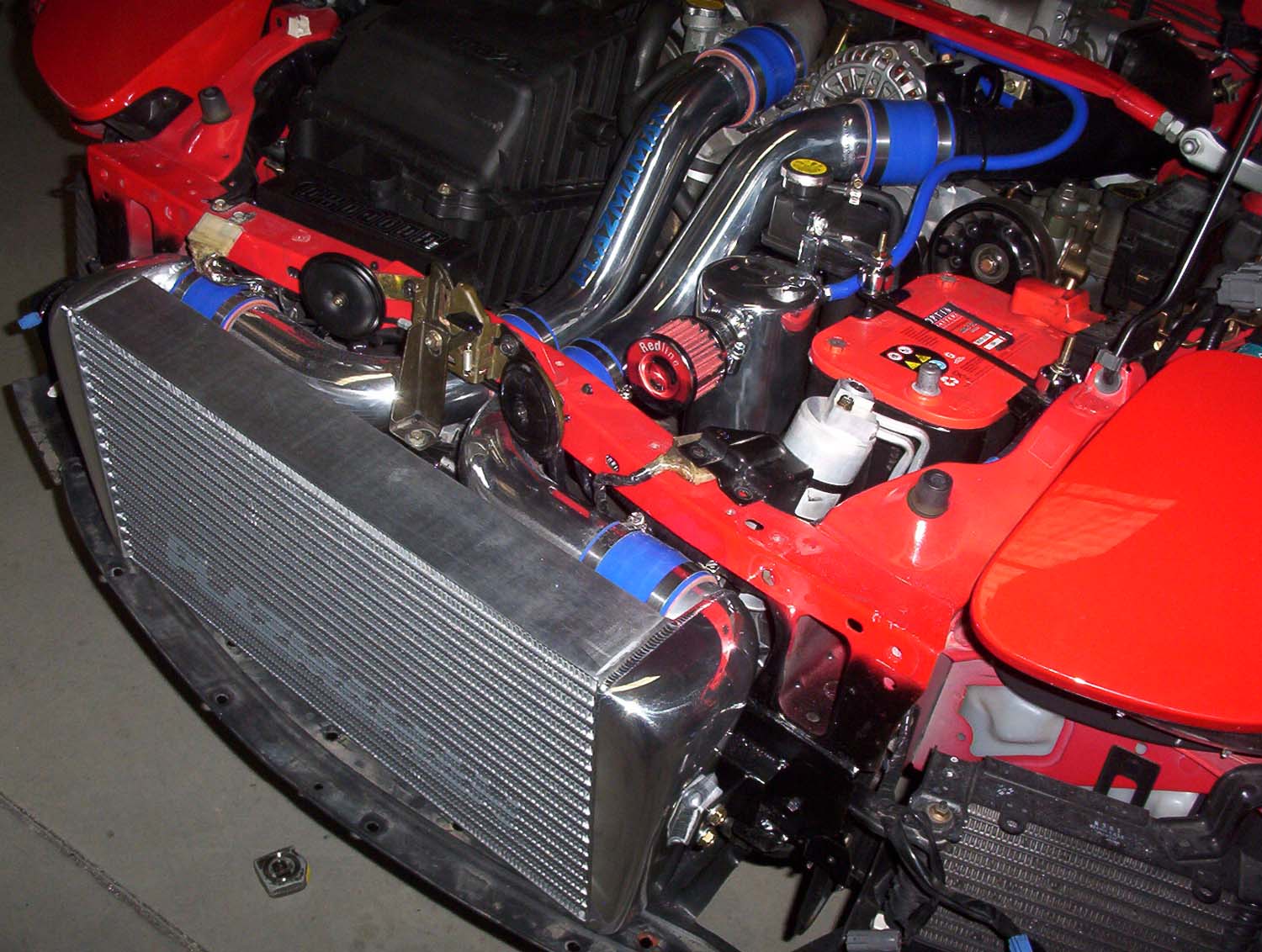

As you can see I'm anything but a post ***** but I was out looking for a FMIC the other day and came across this little beauty from one of the local shops here in Sydney. Having seen countless pictures of other setups, HKS, Trust/Greddy, Blitz, Apexi,etc I thought this one was pretty unique as you guys can see by the way the piping runs through the centre of the car straight into the elbow and crossover pipe, instead of out and around the sides like the other setups mention.

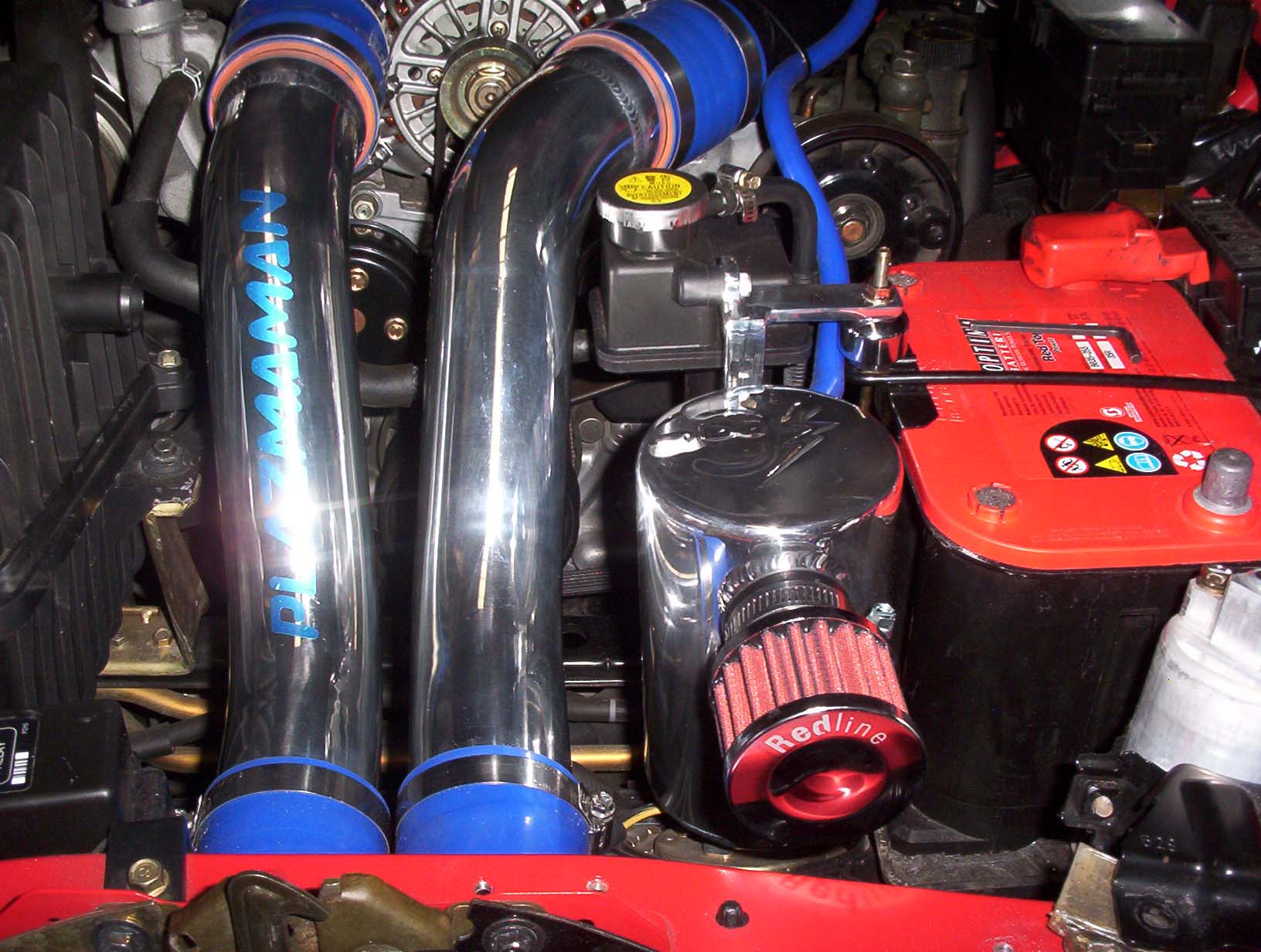

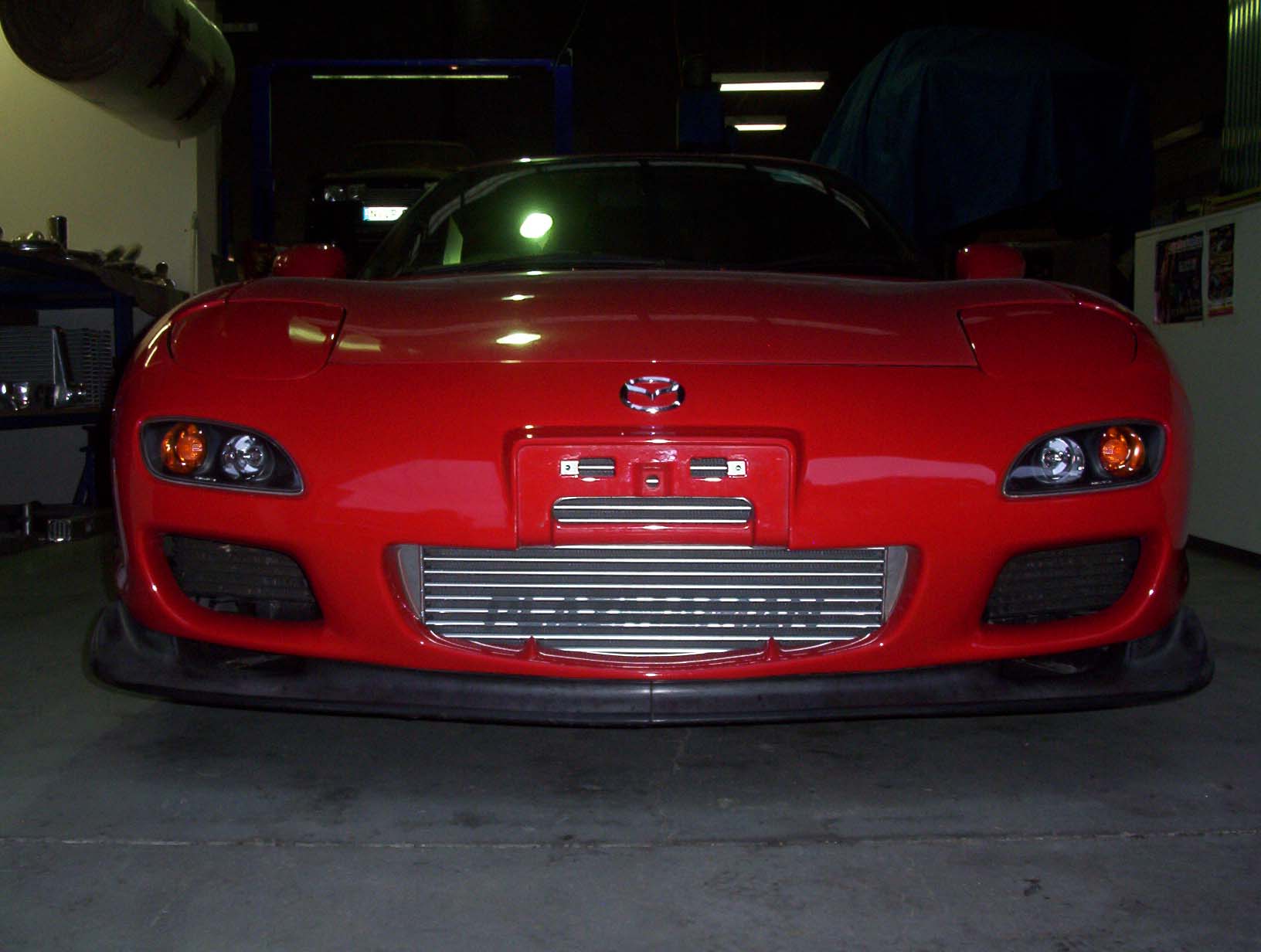

The kit measures up at 600x300x80 and by far has the shortest piping I've seen on ANY front mount, which the seller claims will see virtually no turbo lag or drop in pressure. Other observations include retaining the original airbox and battery as well as being a very nice fit to the front bar. The seller reckons its by far the best setup on the market and is retailing for $2100 (Australian Dollars) supplied and fitted which is around $1550 U.S Dollars. So what do you guy's think?
As you can see I'm anything but a post ***** but I was out looking for a FMIC the other day and came across this little beauty from one of the local shops here in Sydney. Having seen countless pictures of other setups, HKS, Trust/Greddy, Blitz, Apexi,etc I thought this one was pretty unique as you guys can see by the way the piping runs through the centre of the car straight into the elbow and crossover pipe, instead of out and around the sides like the other setups mention.
The kit measures up at 600x300x80 and by far has the shortest piping I've seen on ANY front mount, which the seller claims will see virtually no turbo lag or drop in pressure. Other observations include retaining the original airbox and battery as well as being a very nice fit to the front bar. The seller reckons its by far the best setup on the market and is retailing for $2100 (Australian Dollars) supplied and fitted which is around $1550 U.S Dollars. So what do you guy's think?
Trending Topics
04-24-06, 07:36 PM
#8
Senior Member
Thread Starter
Join Date: Apr 2004
Location: Sydney Australia
Posts: 558
Likes: 0
Received 0 Likes
on
0 Posts
http://www.plazmaman.com/index2.php
Hey I didn't make this intercooler. Just thought I'd inform you guy's on something that hasn't been seen and posted before a thousand times so flame all you want at their sales department :P
Hey I didn't make this intercooler. Just thought I'd inform you guy's on something that hasn't been seen and posted before a thousand times so flame all you want at their sales department :P
04-24-06, 08:58 PM
#11
Lives on the Forum
Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,716
Likes: 0
Received 8 Likes
on
8 Posts
Aside from the whole blocking the radiator issue:
-- I find it hard to believe that thing fits behind the stock bumper without a little "creative fitting".
-- The piping may be a hair shorter, and may allow the stock batt, y-pipe, and intake elbow, but those hard 180-deg bends in and out of the IC don't look good for pressure drop.
The fabrication looks amazing though!
-- I find it hard to believe that thing fits behind the stock bumper without a little "creative fitting".
-- The piping may be a hair shorter, and may allow the stock batt, y-pipe, and intake elbow, but those hard 180-deg bends in and out of the IC don't look good for pressure drop.
The fabrication looks amazing though!
04-24-06, 09:34 PM
#14
Rebreaking things
Join Date: Jun 2001
Location: 1 foot in Boston 1 in NJ
Posts: 2,586
Likes: 0
Received 0 Likes
on
0 Posts
I agree with Kevin -crappy design. What is gained from cutting the front chassis cross member off that can't be had by working around it with a different design?
04-24-06, 11:52 PM
#18
That is a lot of intercooler and a lot of piping for the stock twins. Lag city! Nice crafsmanship though. Ideally you would want piping as short and straight as possible for more instant throttle response with smaller turbos. I also can't imagine how the stock rad would get enough air flow now at the angle it's originally mounted. You better install a aftermarket temp gauge for your engine if you don't already have one.
Last edited by t-von; 04-24-06 at 11:57 PM.
04-25-06, 02:45 AM
#19
GT4088R
Join Date: Jan 2006
Location: UK
Posts: 467
Likes: 0
Received 0 Likes
on
0 Posts
I dont liek the look of the 180deg bends to go in and out of the IC. The rest of it looks spot on though.
I read somewhere that for every tight 180deg bend you lose 5% flow (cant remember the exact figure)
I read somewhere that for every tight 180deg bend you lose 5% flow (cant remember the exact figure)
04-25-06, 01:20 PM
#21
Another thing I just noticed is it looks like it necks down from the stock tubes at 2.75" to something like 2 1/2 " for all the IC pipes. Just after the connectors you can see a weld point with a drop in pipe diameter. This thing could use a complete redesign.
04-25-06, 03:42 PM
#24
Originally Posted by Russo
if i was dumb enough to keep the 13b i would use this intercooler...
04-25-06, 03:47 PM
#25
Official Glass Tech
Join Date: Apr 2006
Location: Raceland, La
Posts: 271
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Kevin T. Wyum
Well considering you've never owned a running 13b in your life your opinion really means a lot. Sheesh kids on these forums.
and you're right, i've never owned a running rx7 and every rx7 i've ever ridden in has broken something while i was riding in it.... not just once, but 5+ times on different cars...
