How to remove tranny bottom cover?

I know it's a basic question, but I've tried hammering the sides with a mallet and it won't budge. Yes, the bolts are out . The gasket sealant is like glue, and there is nowhere to start wedging/prying.

Should I heat the cover around the edges carefully?

(Gonna keep searching for answers, but none so far)

Dave
Old 12-18-04, 10:41 AM
  #2
Do it right, do it once

iTrader: (30)

turbojeff's Avatar

Join Date: Apr 2001
Location: Eugene, OR, usa
Posts: 4,830
Likes: 0
Received 12 Likes on 8 Posts
Use a dead blow hammer and hit is from the side like your shearing the sealant. It'll come off. Concentrate your around the edges, not just on one edge.
Old 12-18-04, 10:49 AM
  #3
Moderator

Thread Starter
iTrader: (7)

dgeesaman's Avatar

Join Date: May 2002
Location: Fort Kickass
Posts: 12,302
Received 16 Likes on 15 Posts
Ok, will do. I started with that but got a little reluctant to put too much umph into it.

If that doesn't work, I may try dremeling in a little notch at one point to start chiseling them apart.

Thanks for the quick answer.

Dave
Old 12-18-04, 11:25 AM
  #4
Weird Cat Man


Wargasm's Avatar

Join Date: Aug 2001
Location: A pale blue dot
Posts: 2,868
Likes: 0
Received 3 Likes on 3 Posts
I am with turbojeff - a sideways whack with a non-metal hammer will work I think.
Old 12-18-04, 12:00 PM
  #5
Moderator

Thread Starter
iTrader: (7)

dgeesaman's Avatar

Join Date: May 2002
Location: Fort Kickass
Posts: 12,302
Received 16 Likes on 15 Posts
The hammer on wood block didn't work. I was giving it a little piece of hell, too. Shearing across 1/2" wide by 30" perimeter of gasket sealer takes a bunch of effort.

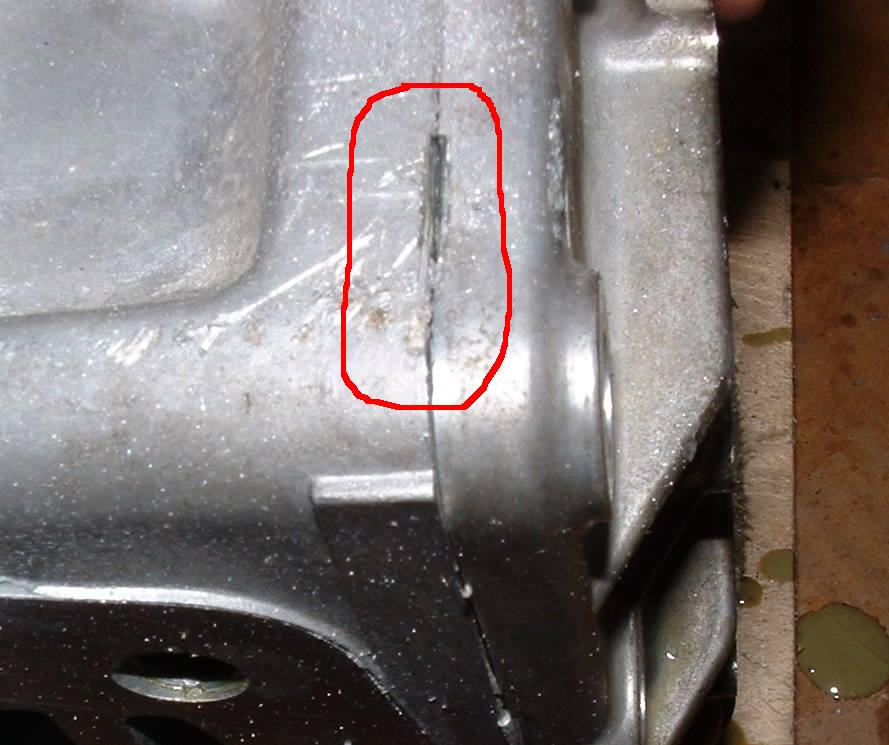

What worked nicely is taking the dremel disc cutter and putting a shallow (1/16th deep x 1/2 wide) slit right in the split. Then a few taps with a flathead & hammer to chisel in the slot and get things pried apart. Just needed to deburr the minor edge damage caused by the chiseling.

Thanks for the help.

Dave

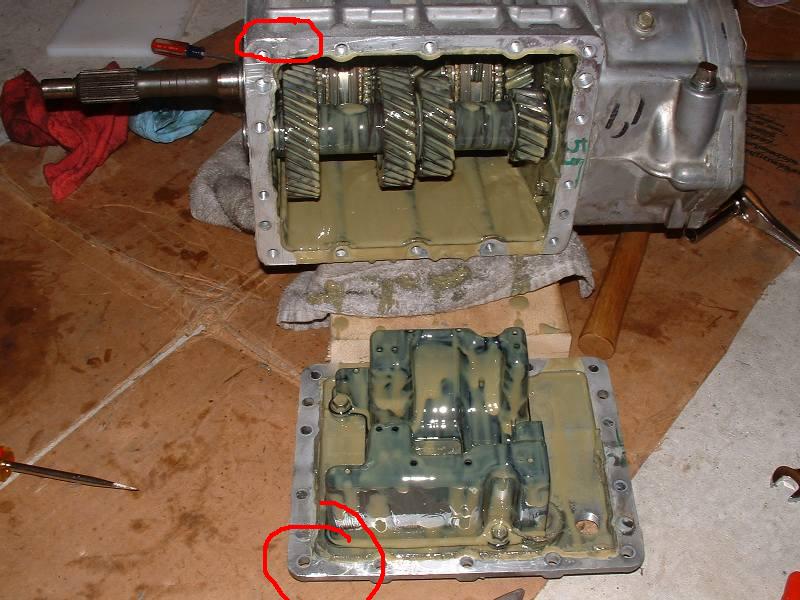

Attached Thumbnails How to remove tranny bottom cover?-dscf0007a.jpg   How to remove tranny bottom cover?-dscf0008a.jpg

Last edited by dgeesaman; 12-18-04 at 12:06 PM.
Old 12-19-04, 09:02 AM
  #6
Eye In The Sky

iTrader: (2)

cewrx7r1's Avatar

Join Date: Feb 2001
Location: In A Disfunctional World
Posts: 7,895
Likes: 0
Received 114 Likes on 66 Posts
Pardon my asking, but what is that heavy light brown stuff all over the inside?

The transmission should not have sludge in it!
Old 12-19-04, 02:47 PM
  #7
Moderator

Thread Starter
iTrader: (7)

dgeesaman's Avatar

Join Date: May 2002
Location: Fort Kickass
Posts: 12,302
Received 16 Likes on 15 Posts
The last gear oil in there was Redline Lightweight Shockproof - it has a slightly mustard color. Plus a little bit of residue from the 'normal' gear oil that was in before.

Dave
