Gamezilla

Im talking about that nut on the countershaft that you have to put something like 120lb-ft of torque on. I got it off before I rebuilt it by borrowing a fellow 7 owners driveshaft that he was selling. He sold it though. Is there any other way of stopping the tranny from moving without me having to take my driveshaft off?

mgoddard1

Feed a rag between the gears.

boostgasm

put it in gear

jimlab

WTF is a countershaft?

hornbm

im kinda confused by the post weither or not the transmission is out of the car or not.

If it is, rather than a rag between the gears, you can put the transmission in two gears at once, and this will lock it up so you can tighten whatever it was you need to do

RX7 Japan

how do you put it in 2 gears at once? Just curious.

Wargasm

To get it to go into two years at once, you can remove the safety pins that are in there to prevent this OR you can remove the roll pin from one of the shift forks and then manually slide it into two gears at once. After you're done you either need to replace the roll pin or replace the safety pins....

I wish I had a pic..

adam c

iTrader: (2)

Countershaft \Coun"ter*shaft`\ (koun"t?r-sh?ft`), n. (Mach.)
An intermediate shaft; esp., one which receives motion from a
line shaft in a factory and transmits it to a machine.
[1913 Webster]

onequikson

Can you say that in lamans terms?

jimlab

Great. Now explain to me how "countershaft" helps describe what this guy needs help with.

If you're rebuilding a transmission, for ****'s sake SAY that you're rebuilding a transmission, and describe what it is you're trying to do. The answer to "how do you stop the transmission from turning" is different if the transmission is in the car vs. out of the car, obviously.

The point is, people who need help need to work on making themselves "helpable" by describing in better DETAIL what their problem is.

dgeesaman

iTrader: (7)

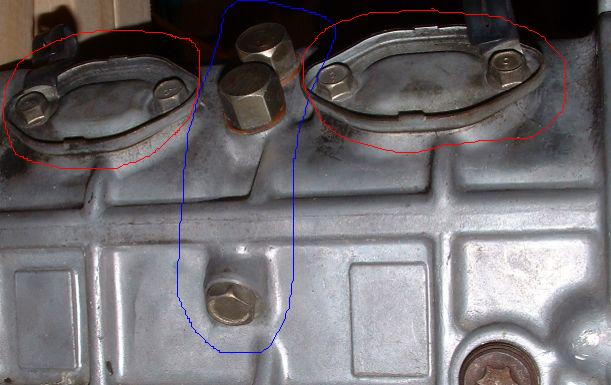

See the attached pic. This is looking from the drivers side of the gearbox. The 'safety pins' (aka interlock pins) prevent the gearshift from engaging two gears at once. So if you remove the three bolts in the blue circle, the shift rods will not be interlocked and you can slide the tranny into two gears at once. It may be necessary to remove the bottom cover of the gearbox to manually push them into gear.

The second option is to remove one of the doors circled in red - you will see a roll pin holding the shift fork to the shift rod. Drive it out, and now you can slide that shift fork into another gear than the one the shifter is set to.

Dave

adam c

iTrader: (2)

I agree with you Jim.
Just giving you a little ribbing

Gamezilla

If you dont know what Im talking about then you're obviously not gonna be too much help to me.

dgeesaman

iTrader: (7)

Keep in mind with option 1 to not get the piece mixed up. Look at the FSM and make sure to use a magnetic pickup tool to draw out each pin.

Dave

Gamezilla

Im just gonna wedge a piece of wood in between the gears. I talked to Ray and thats what he suggested since I no longer have access to a driveshaft.

jimlab

True, but I can fix you up some negative feedback to make your day a little brighter. Enjoy!
