I know there are many threads on this. I am changing out motors and I need to remove the wire harness. Whats the best way? Do I have to remove the UIM? If there is a thread maybe just point me with the right search words.Thanks

Mahjik

iTrader: (1)

You have to remove more than just the UIM. You have to get all the way to the CAS sensors. You'll also have to get under the car to disconnect and reconnect the connections on the transmission.

VizeFD

opps i guess I should mention engine is ourt of the car.

Mahjik

iTrader: (1)

Then that only changes the transmission part.

VizeFD

I got a JDM (Yea I know I was advised not to go JDM, But due to $$$ and time It is the best for me)The plug is cut. I still have my USDM engine for hopes of rebuilding and having one engine ready to go "just incase". So I want to pull JDM harness and put USDM on and plop it back in car.

Mahjik

iTrader: (1)

That's doable as long as the JDM has similar year components to the US. i.e. if it has the solenoid "box" rather than the solenoid rack, you're going to have issues.

VizeFD

Cjecked out the service manual. To know if I have rack or box on the JDM I peeked under the UIM on the Jdm It looks like there are more hoses than the USDM is what I am looking for? Also looking from the rear of the engine There are 5 ire plugs in a row and on the JDM there are 3 one missing than one more.Is thet the EGr?

Mahjik

iTrader: (1)

For the solenoid rack, you would expect this under the UIM:

http://www.davidgeesaman.com/rx7/Hos...%20Writeup.pdf

Not this:
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/s8-vacuum-system-series-8-fd-rx7-745313/

As far as the plugs, check this:
http://www.blackgto.com/RX7/wireharness1.jpg

VizeFD

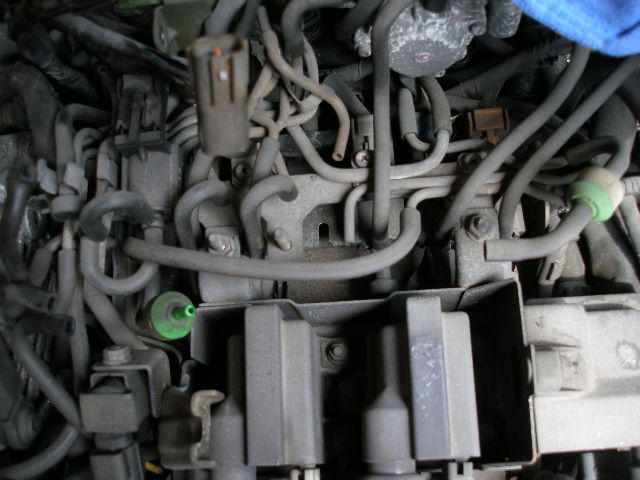

here is the JDM

Mahjik

iTrader: (1)

Yea, that's what you need. The US harness will plug right up (except for the AWS and EGR).

VizeFD

Awesome! thanks I was fearing the worst there. I just want to get back on the street!!

Mahjik

iTrader: (1)

Well, the worse case scenario is that you pull off the components from your other engine and put them on the JDM engine. That's what I did with the JDM engine I bought:

JDM engine on the pallet:
https://www.rx7club.com/showpost.php...&postcount=386

JDM engine ready for install (and then installed):
https://www.rx7club.com/showpost.php...&postcount=398

VizeFD

Trying to finish up putting the wire harness on the JDM engine and cant seem to find the connectors for these two guys. Maybe they dont plug into the main harness
