help!!tranny wont come off??

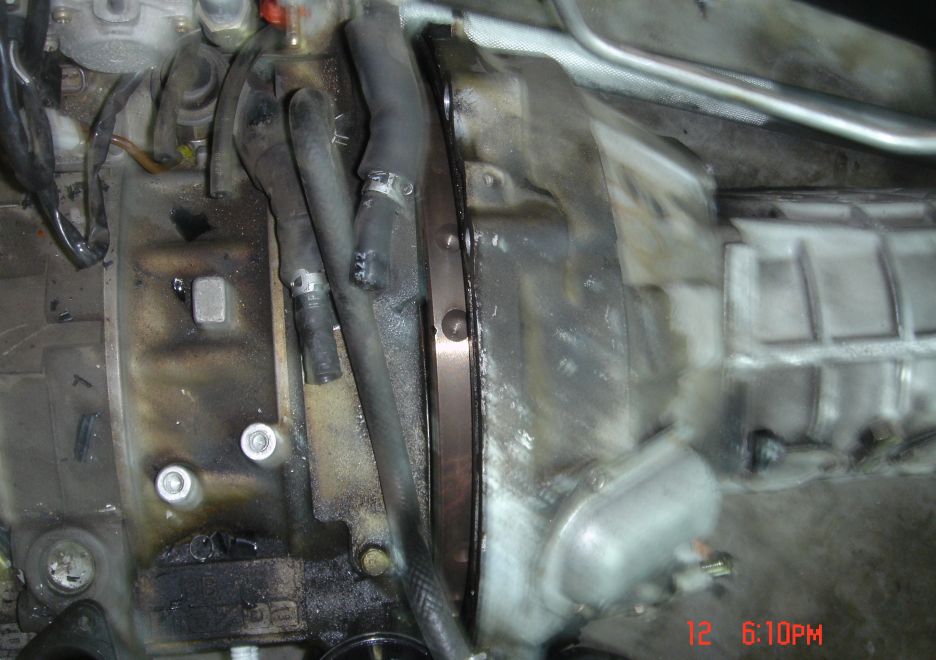

like the title says. i got to come out about an inch lil more lil less. i can spin the tranny in a circle but it wont come off. i try shaking the shiet out of it but it still wont come out. any ideas??
10-12-06, 09:33 PM
#2
WOTCOP
Join Date: Sep 2004
Location: Melbourne
Posts: 109
Likes: 0
Received 0 Likes
on
0 Posts
yeah its a pull type clutch so therefore its locked into the pressure plate from behind (flywheel side) u can try to wedge it out with a screw driver or if u unbolt one of the service hole plates on the bellhousing u can unscrew the pressure plate/clutch assembly off the flywheel just turn it over to get to the next screw, look in the service manual under transmittion.
10-12-06, 10:26 PM
#6
Full Member
Join Date: Apr 2006
Location: St. Louis, MO
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts
The bearing may not be his problem. My transmission wouldn't come off and it turned out to be the pilot bearing failed and was fused to the propeller shaft of the transmission. It literally took me about 6 hours to get the transmission off. I wasn't about to force anything unless I had to. The bearing was shot and the propeller shaft had a big divit and spike on it (which I sanded off).
Trending Topics
10-12-06, 11:00 PM
#8
WOTCOP
Join Date: Sep 2004
Location: Melbourne
Posts: 109
Likes: 0
Received 0 Likes
on
0 Posts
Next time I pull my transmission off im doing a push conversion.. I really dont like the pull type system I know my fd pretty well but that trany gave me a hard time when I pulled it off last year, I couldnt figure out how to release the box, and I still dont know if I bolted it back on properly after I pulled it off, but it seems to be working fine since then.!!
10-12-06, 11:27 PM
#9
Full Member
Thread Starter
Join Date: Apr 2006
Location: california
Posts: 208
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by CantGoStraight
Simple and easy to release. There's even a video if you search pull thype clutch in the 3rd gen/archives.
10-13-06, 01:43 AM
#13
Releasing the clutch from the throwout bearing is a piece of cake. Everyone always complains about it because theyre used to push type clutches. The FSM shows you how to remove it. Since you have the engine out of the car, it will be much easier.
10-13-06, 08:30 AM
#14
IRS 4 Life
iTrader: (12)
Join Date: Feb 2001
Location: Sicklerville, South Jersey!!
Posts: 2,634
Likes: 0
Received 2 Likes
on
2 Posts
Go through the service port on the bottom of the bell housing, using a screwdriver with a large flat blade, or an 18 in pry bar, put the tip between the pressure plate and throw out bearing and twist. …..Pop the throw out bearing backs off the retainer ring...
Simple as pie
Simple as pie
10-13-06, 09:21 AM
#15
What's your point ?
Join Date: Feb 2001
Location: Gainesville, Fla.
Posts: 3,573
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by PhDMDRX7
The bearing may not be his problem. My transmission wouldn't come off and it turned out to be the pilot bearing failed and was fused to the propeller shaft of the transmission. It literally took me about 6 hours to get the transmission off. I wasn't about to force anything unless I had to. The bearing was shot and the propeller shaft had a big divit and spike on it (which I sanded off).
While this is always a possibility since it moved as far as it did I went with the throw out bearing because typically when its the pilot bearing you cant get it to move that far.
10-13-06, 10:04 AM
#16
Originally Posted by Bacon
Go through the service port on the bottom of the bell housing, using a screwdriver with a large flat blade, or an 18 in pry bar, put the tip between the pressure plate and throw out bearing and twist. …..Pop the throw out bearing backs off the retainer ring...
Simple as pie
Simple as pie
It also really helps if you unbolt the slave cylindar first (gotta do it anyways...)
