Ok so I've been going through the front harness on my 93 automatic FD identifying plugs before cleaning it up and removing the stuff I don't need. I came across a few connectors that I can't identify. Here's the pics:

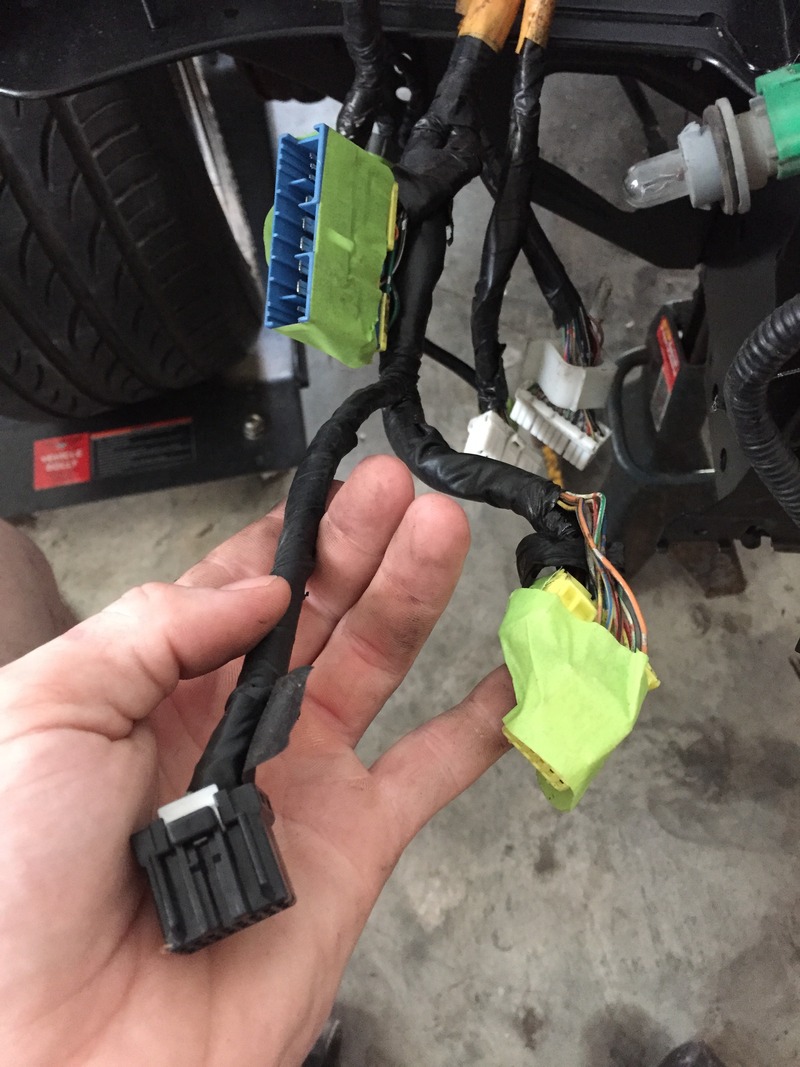

This black plug located toward the pass side of the harness,

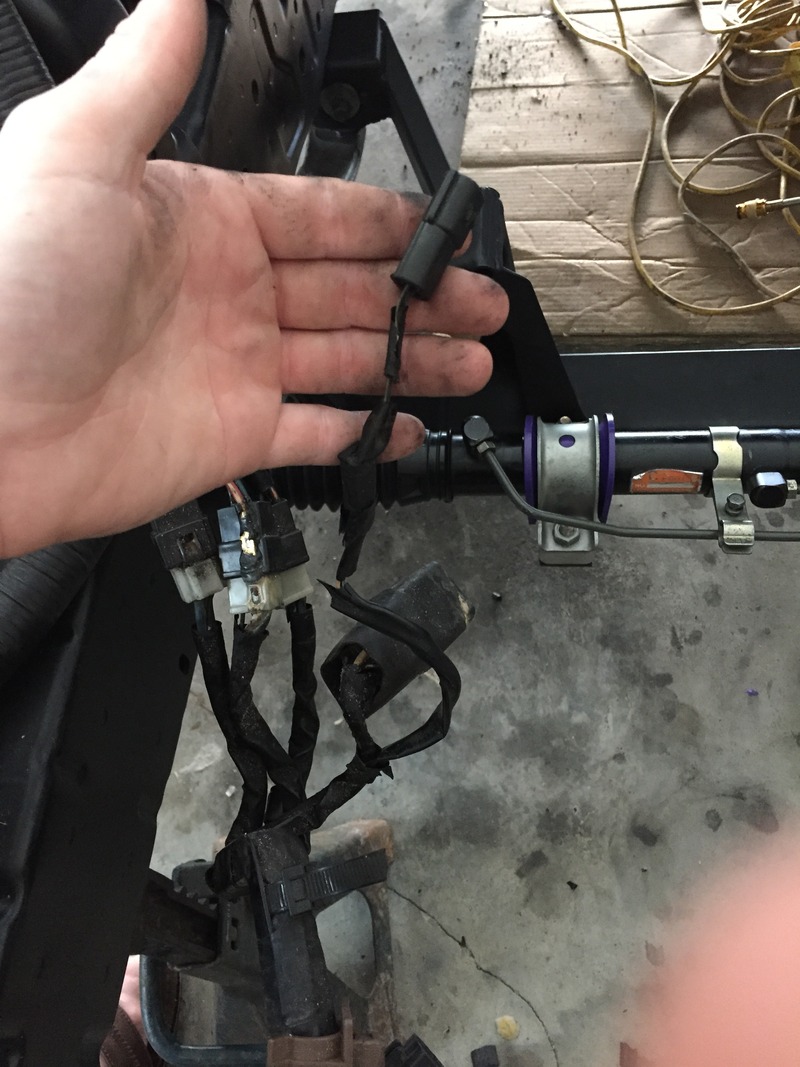

this little plug near the ac and fan relays,

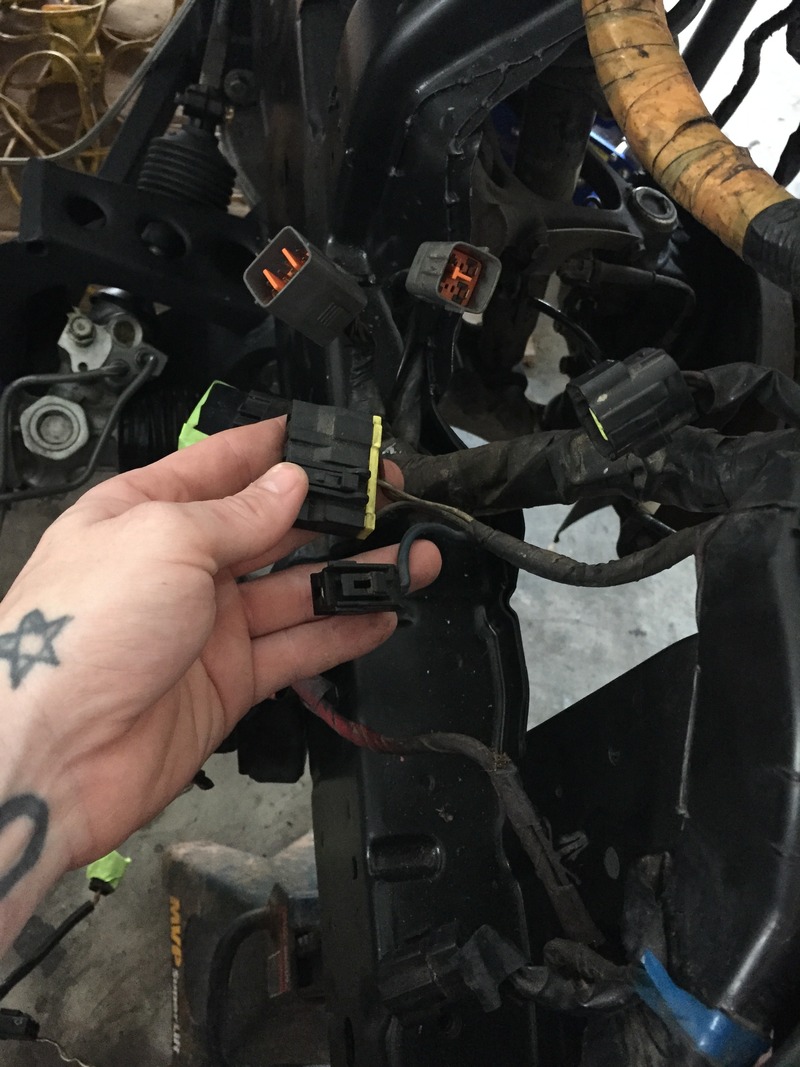

and these two near the commonly used X connectors on the driver side.
Any help with these is appreciated. Thank you.



You need to search, but these might help

https://www.rx7club.com/3rd-generati...index*-971065/
https://www.rx7club.com/3rd-generati...ctures-892648/
https://www.rx7club.com/3rd-generati...part-s-984160/



I've used halfspec's post to identify what I can. Unfortunately, the connectors I've posted aren't listed. If you look at his post and you look in box 2, connector x-01, you'll see on the left side of the x-01 there is some wiring going to the harness. It looks like connector x-01 is leaning on the connectors I'm referring to in my third pic.

I appreciate the links you posted but the connectors I need to identify are in the front harness.



I don't have the first picture connector on my harness(94 manual)

Second picture, how many wires in that connector?

Third picture, both those connectors plug into the positive battery fuse block / charge harness.



In the second pic the plug is a 2 wire plug identical to the plugs in the wheel wells for the abs speed sensors (I'm pretty sure that's what those are anyway).

I totally forgot the plugs in the third pic plug into the charge harness. Thank you. I've been looking at plugs for the last week now and those just slipped my mind I guess. Thanks again.



I'm having a hard time finding the location of the connector in the first picture. Is it actually coming out of the harness right there in front of the pass side headlight area? Or do you just have the harness laid on the car for pics?
Also in the second pic, I don't have that relay or the two wire connector in my harness anywhere near the fan relay set.

I'll keep looking
