Help! Lost primary & secondary boost at track!
Hey guys & gals, I'm instructing at Roebling Road, and half-way through my second session, I noticed I didn't have full 10-psi boost anymore.
I checked all hoses, and haven't found any that have blown off.
I also checked the E-clips on each actuator, and they are all on there.
Vaccuum hoses to actuators looks good as well, and so does the hose to the boost sensor.
Typically, when in netural (no load) if I rev the engine quickly to 6500 RPM I would see about 4-5 lbs. I see nothing on the boost gauge.
Boost pattern when driving is a flat 5-lbs, not even 8-lbs.
Intercooler couplers looks good, and hoses to the two (2) relief valves looks good.
According to this: http://www.autosportracetech.com/RX-...leshooting.htm , I need at least 8-lbs of primary boost, before I even tackle the secondary.
I think when I do rev in neutral (no load) I hear a little "whoosh" of air.
Any help would be appreciated, instead of having this track weekend be a bust.
Thanks,
:-) neil
1993 Sequential FD
PFC with 4x850cc injectors
Y-pipe
DP
ARC intercooler
I checked all hoses, and haven't found any that have blown off.
I also checked the E-clips on each actuator, and they are all on there.
Vaccuum hoses to actuators looks good as well, and so does the hose to the boost sensor.
Typically, when in netural (no load) if I rev the engine quickly to 6500 RPM I would see about 4-5 lbs. I see nothing on the boost gauge.
Boost pattern when driving is a flat 5-lbs, not even 8-lbs.
Intercooler couplers looks good, and hoses to the two (2) relief valves looks good.
According to this: http://www.autosportracetech.com/RX-...leshooting.htm , I need at least 8-lbs of primary boost, before I even tackle the secondary.
I think when I do rev in neutral (no load) I hear a little "whoosh" of air.
Any help would be appreciated, instead of having this track weekend be a bust.
Thanks,
:-) neil
1993 Sequential FD
PFC with 4x850cc injectors
Y-pipe
DP
ARC intercooler
#2
Senior Member
iTrader: (1)
Join Date: Nov 2006
Location: Ontario
Posts: 726
Likes: 0
Received 0 Likes
on
0 Posts
Maybe a long shot but did you check the intercooler hoses? Primarily the lower one? If you do then take it off and squeeze it since if it split the slit is hard to see if you dont actually squeeze the hose.
Good luck with finding the issue.
Good luck with finding the issue.
Trending Topics
#10
under construction
Join Date: Nov 2005
Location: savannah
Posts: 1,112
Likes: 0
Received 0 Likes
on
0 Posts
thats what i am saying i don't know exactly what i have... it is a huge tub full of stock twin stuff and various accesseries.... did you get ahold of darthrotary??? i know he has it!!!
#13

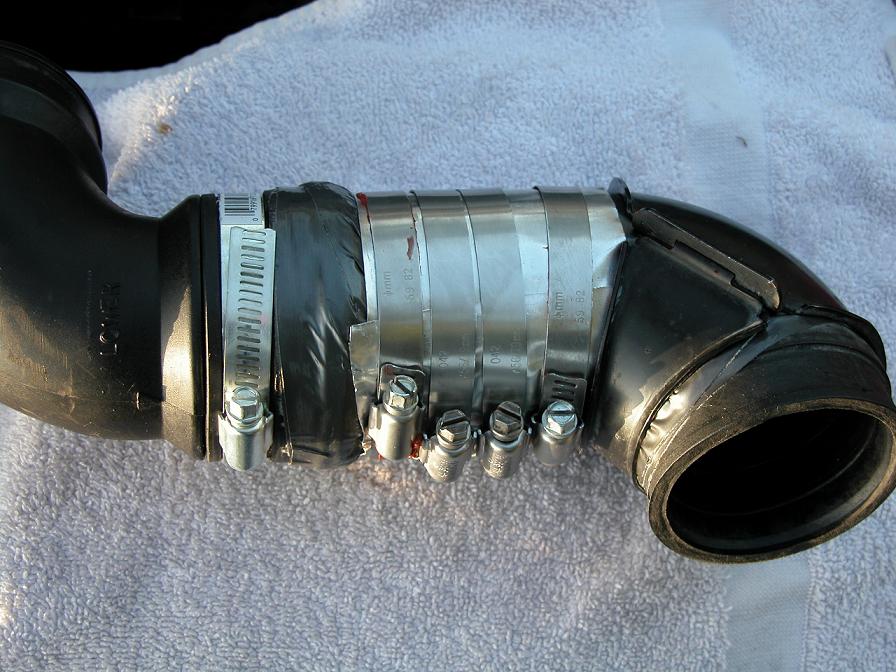

I removed the lower metal reinforcement (10mm bolt).
I cleaned the stock hose with brake cleaner and "Purple Degreaser" and got it really clean, dry, and oil-free.
Then I took "orange" RTV and just about covered the entire area.
Then I wrapped it TWICE with heavy-duty weatherproof duct tape.
Then I took wrapped the area with "muffler repair" sheet metal (I was going to use an aluminum can, but this looked tougher).
I re-installed the lower metal reinforcement.
Lastly, I used four (4) hose-clamps to hold the metal wrap together, and let the assembly cure for about 10-hrs.
NO MORE LEAKS!
:-) neil
PS: thank God, Advance Auto Parts was open until 9pm on Saturday!
I cleaned the stock hose with brake cleaner and "Purple Degreaser" and got it really clean, dry, and oil-free.
Then I took "orange" RTV and just about covered the entire area.
Then I wrapped it TWICE with heavy-duty weatherproof duct tape.
Then I took wrapped the area with "muffler repair" sheet metal (I was going to use an aluminum can, but this looked tougher).
I re-installed the lower metal reinforcement.
Lastly, I used four (4) hose-clamps to hold the metal wrap together, and let the assembly cure for about 10-hrs.
NO MORE LEAKS!
:-) neil
PS: thank God, Advance Auto Parts was open until 9pm on Saturday!
