Help idetify these pictures
#1
MY78U
Thread Starter
Join Date: Sep 2005
Location: Nashville TN
Posts: 261
Likes: 0
Received 0 Likes
on
0 Posts
Help idetify these pictures
Please help identify

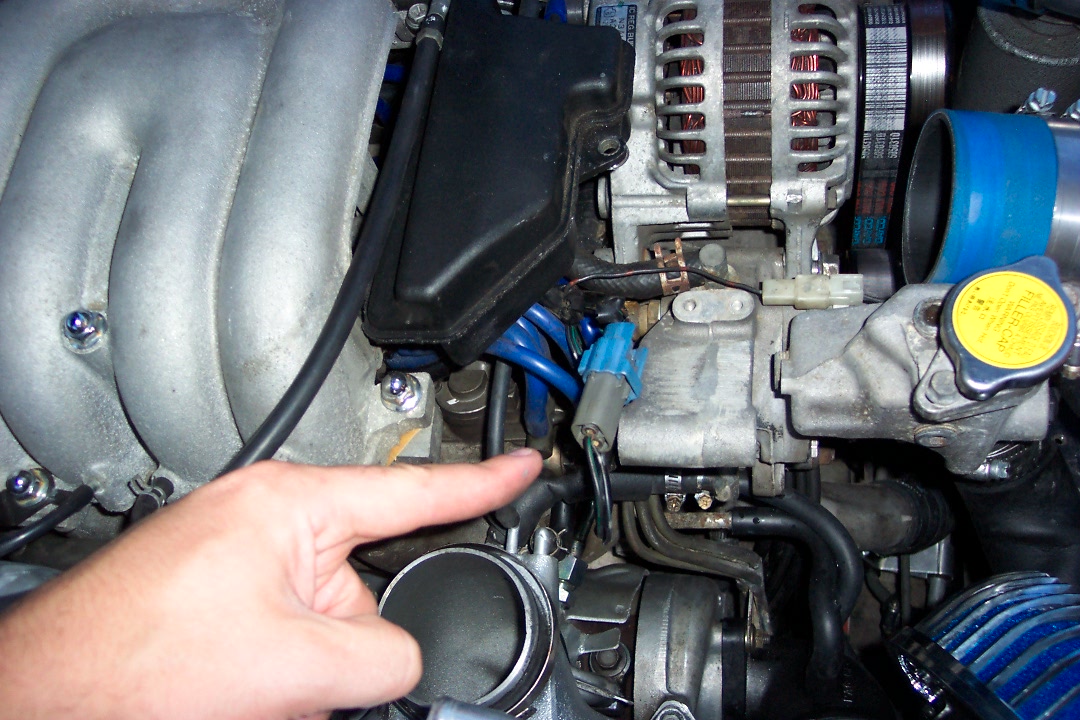

The first pic : What is this clip and wires go to ?
Second pic: What is this pipe go to?
Also where is the water temp sensor located?????
Thanks
The first pic : What is this clip and wires go to ?
Second pic: What is this pipe go to?
Also where is the water temp sensor located?????
Thanks
#2
Original Gangster/Rotary!
iTrader: (213)
1st pic: Not 100% sure, but I believe that is the infamous blue plug that doesnt connect to anything.
2nd pic: that pipe is part of the split air tube, which is part of the FD's air pump system. There is a hose that runs from that pipe forward to your air intake.
The water temp sensor is on the back of the water pump housing.
2nd pic: that pipe is part of the split air tube, which is part of the FD's air pump system. There is a hose that runs from that pipe forward to your air intake.
The water temp sensor is on the back of the water pump housing.
#5
Original Gangster/Rotary!
iTrader: (213)
Originally Posted by BlueRex
It would help if you circled what you were pointing at in the first pic, but to me it looks like you're pointing to the EGR sensor plug.
#6
RX-7 Bad Ass
iTrader: (55)
In the first pic, you have the electrical connector for the air pump plugged into the not-used blue connector. Unplug that pronto. That could cause ECU damage. The hint should be the connectors aren't the same color.
The grey plug is for the air pump, which you don't have, and the blue plug is for the EGR switch on California cars. Stock, your car had that blue plug there not connected to anything, which is just fine, all newbs are stumped by it . The air pump has been removed.
The second pic is the air return pipe for the air pump system. If you're not running an air pump, it pretty much does nothing.
Dale
The grey plug is for the air pump, which you don't have, and the blue plug is for the EGR switch on California cars. Stock, your car had that blue plug there not connected to anything, which is just fine, all newbs are stumped by it . The air pump has been removed.
The second pic is the air return pipe for the air pump system. If you're not running an air pump, it pretty much does nothing.
Dale
#7
Ahhhh Motherland!
Join Date: Nov 2003
Location: CA: Van Nuys
Posts: 715
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by GoodfellaFD3S
Here, in this pic you can see the long hose that routes from that pipe (in your second pic) to the intake:
Trending Topics
#8
Original Gangster/Rotary!
iTrader: (213)
Originally Posted by austinsFD
clean your engine bay:-P

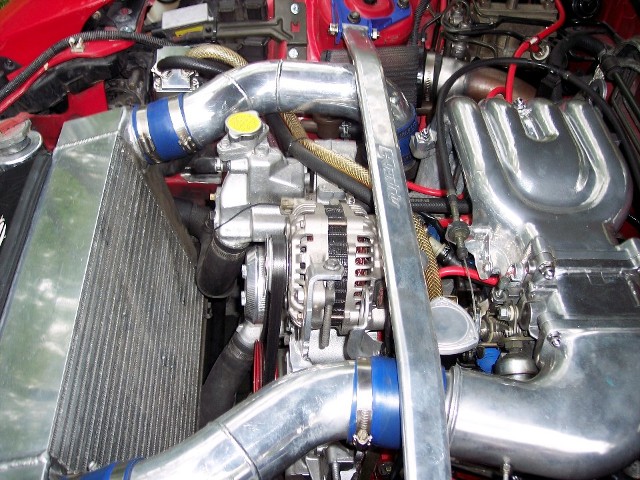

Here is my engine bay, it was clean enough to win 'Best In Show-FD' at this year's Rotorfest
Rich
