lzamboni

iTrader: (8)

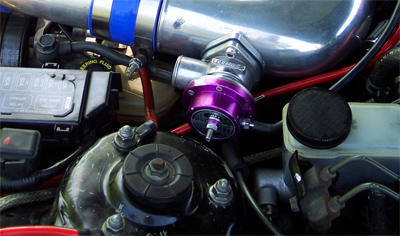

Hi all, I have a strange question. I have the typical Greddy elbow BUT with a non typical Greddy BOV attached to it. I see why is not typical because it almost touches the strut tower and it makes the installation of a Strut Tower Brace a problem since they do not seem to fit without hitting the BOV.
Does anyone know of a strut tower brace that would clear that BOV? Maybe one from Greddy themselves?
I hope I can put the thumbnails here if not I am listing the Photobucket links anyway.

http://i234.photobucket.com/albums/e...StrutTower.jpg

http://i234.photobucket.com/albums/e...trutTower2.jpg

Thanks in advance.
Leo

bencb44

iTrader: (2)

I don't know about strut bars that will fit, but it looks like your BOV is a lot farther forward on the elbow than any other Greddy elbow I've seen. It might be cheaper and easier to get another one that has it in the right place.

fendamonky

iTrader: (6)

Dude, that STINKS! Whoever welded that on there was def not thinking...

It looks like it's close enough that the top of the BOV will rub against the body of the car as well. Personally, I'd get rid of it. Throw the stock elbow/piping back on there until you either fix the one there (won't be pretty) or get one that's not been messed up.

RIX-7

iTrader: (2)

I have seen this set up b4,I not sure but im sure cusco do a brace.I will try and find a pic of the one ive seen.

RotaryDreamz

iTrader: (29)

+1 It looks like someone welded that BOV flange on the elbow and sits a little more closer to the coupler than how the original Greddy elbow looks.

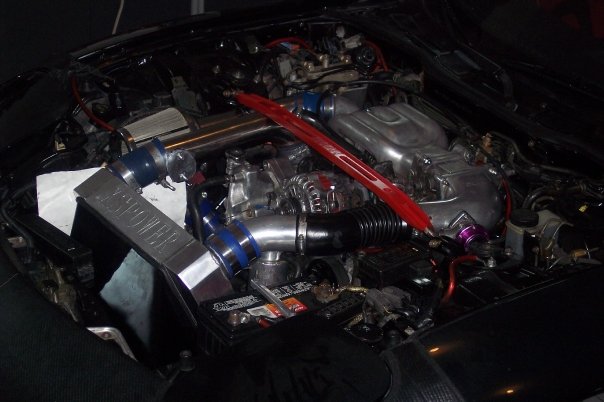

Below is a pic of the Greddy elbow with a BOV and a Strut bar installed. Sorry, it's hard to see but if you look closely, you can see a BOV on the elbow. Second picture shows how the real Greddy Elbow with flange looks.

TpCpLaYa

iTrader: (10)

i have both original BOV and elbow and I can say even that is a tight fit. It's a lot worse if the motor mounts are a little weak.

In 3 years there has def been some rubbing. I don't have an updated pic but the adjustment screw on top has been shaved off a little bit.

lzamboni

iTrader: (8)

Thank you very much everyone for your input. I am sorry I didnt get back here sooner but I was busy. It seems like I will have to find another elbow and place the BOV somewhere else as suggested.
Thanks again.
Leo

TpCpLaYa

iTrader: (10)

yea both the spring adjustment and the vacuum line are really squeezed in there.

D CUPS

iTrader: (1)

Mine doest rub on nothing at all. Plenty of clearance.




Your one looks like it sits further to the front and sticks out more.

Sgtblue

iTrader: (16)

The flange coming off the shock tower is shorter on the Mazdaspeed brace than the standard OEM brace, but I'm not sure it's going to be short enough. I agree, you might want to consider another elbow and re-positioning your BOV.

[URL=http://g.imageshack.us/img175/enginebayfall2008vo6.jpg/1/][IMG]

20B 3 Rotor

iTrader: (7)

From the pictures, it looks likes there is a different greddy bov ( the one on d cups car) then the one on your car that would fit better.

Still it might be a better idea to just get a greddy throttlebody elbow without the bov flange and mount the bov in the stock location. The only problem with that would be both the alarm and the intake you have might be in they way.

TpCpLaYa

iTrader: (10)

well, I know that like cusco or mazdaspeed strut braces are a lot beefier but I grabbed just a generic brace off ebay and have been satisfied with it. Resembles the OEM one more than the after market ones but it has ZERO interference with the bov.



i also wonder if it being a type-s vs a type-rs(?) bov makes a big deal about fitment

20B 3 Rotor

iTrader: (7)

Thats what I was thinking, it looks like the OP has the type rs, and maybe D Cups has the type s (which looks like it fits better). I could be wrong though.

TpCpLaYa

iTrader: (10)

i think u got it backwards....Dcups has the type rs....me and the OP have the type-s

20B 3 Rotor

iTrader: (7)

though I might, thanks for clearing that up.

FDNena

iTrader: (2)

Leo, it may just be me but if you look at your pic in comparison to the ones above people posted the distance from your flange to the elbow itself is greater. The flange on the pics above are welded closer.

Not sure if this is something you can fix but it look like it could save you a bit of space if it was cut off and fixed.

I will let others say however since I know nothing really of welding matters. It could also just be an optical illusion in the pics. But I do think it would be the least expensive of the options if you could do that.

Qball

your's is mounted way too forward.

my greddy works fine with the stock bar.

KKMpunkrock2011

iTrader: (5)

exactly what I was thinking

also dcup, what intake is that? it looks like the greddy/trust one that I have, except you have a different BOV than the stock one which attaches to the greddy intake,

FDNena

iTrader: (2)

It is a greddy one from the looks of it. But he just moved his BOV to another location is all.

lzamboni

iTrader: (8)

Yes that is what is happening. The BOV was welded way to close to the end of the pipe and away from the elbow itself. I have no idea why they did that but...
As for welding it again in a different place, I think is not the best solution for me since I already have people wanting to buy mine so as soon as I can get my car back from the shop, I will see into buying another one and selling mine.
Thanks everyone for your thoughts on the matter.
Leo

DeepSeaChris

iTrader: (10)

+1 for Cusco
