Greddy 60mm oil pressure warning gauge help
#1
Full Member
Thread Starter
Greddy 60mm oil pressure warning gauge help
Hi
Does anybody have the 60mm oil pressure warning greddy gauge in their car?
If so could you confirm from the sensor wiring loom through the middle loom to the little grey box what the wire colours are please.

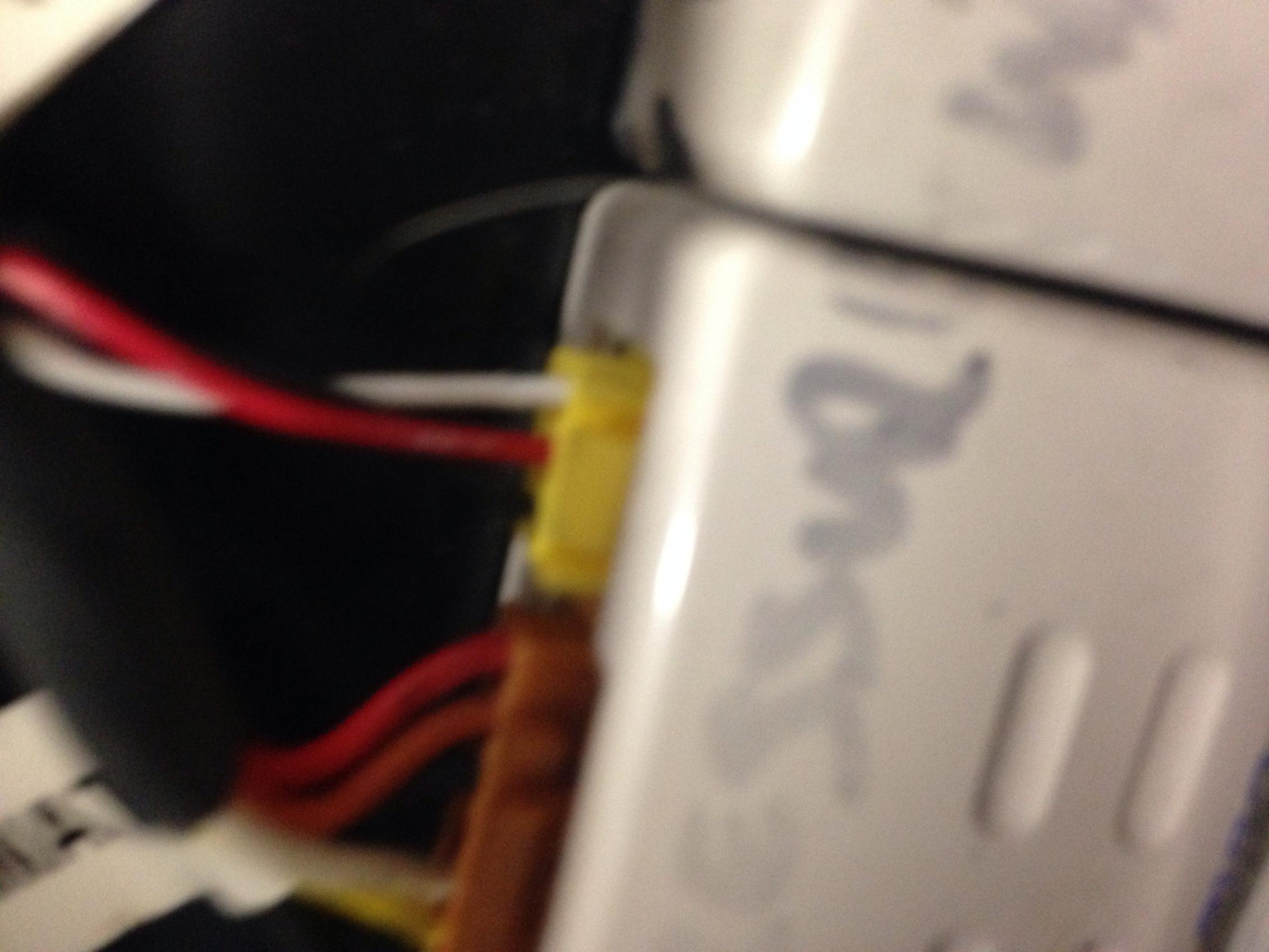

E.G from the sensor on mine it is top black, white,red then the start of the middle loom it's white,black,red then the yellow plug into the grey box is black red white. The gauge reads a static 2 bar oil pressure from start up which isn't right pics below, thanks in advance Mark
Does anybody have the 60mm oil pressure warning greddy gauge in their car?
If so could you confirm from the sensor wiring loom through the middle loom to the little grey box what the wire colours are please.
E.G from the sensor on mine it is top black, white,red then the start of the middle loom it's white,black,red then the yellow plug into the grey box is black red white. The gauge reads a static 2 bar oil pressure from start up which isn't right pics below, thanks in advance Mark
#3
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,844
Received 2,605 Likes
on
1,848 Posts
#4
Full Member
Thread Starter
Cheers but this doesn't show which way the wires are on the sensor harness. It does show the electrical harness but I know that's fine it's the sensor harness I need help with. Just need someone with these gauges to have a lol for me and note the red white and black wires
Cheers Mark
Cheers Mark
#6
RX-7 Bad Ass
iTrader: (55)
That particular gauge isn't terribly common, you see a lot more of the boost and temp gauges. Do you get an error or different reading when you disconnect the sensor?
The sensor wiring is most likely 5v, ground, and signal. 5v and ground goes to the sensor and it returns a signal on the third wire.
Do a Google image search on "greddy warning meter" there are tons of pics of them out there, might be able to see some wire colors.
Dale
The sensor wiring is most likely 5v, ground, and signal. 5v and ground goes to the sensor and it returns a signal on the third wire.
Do a Google image search on "greddy warning meter" there are tons of pics of them out there, might be able to see some wire colors.
Dale
