Got Duct - Show your pic!
#1
Rotary Enthusiast
Thread Starter
Got Duct - Show your pic!
I just got a greddy smic and am planning on using my modified stock intake. I like the clean look of the stock crossover and am currently modifying the stock ic duct to accomodate the full heigth and width of the greddy.
I'm using aluminum sheetmetal and another benefit is the stock air intake cover will cover up any "unsightly" aluminum work.
I'm interested in seeing others work. I've seen many crushed fiberglass boxes and other approaches. If you have something you are proud of I'd love to see it.
Likewise if you know of another approach I should try let me know.
I'll post pics of my IC ducting when I finish.
I'm using aluminum sheetmetal and another benefit is the stock air intake cover will cover up any "unsightly" aluminum work.
I'm interested in seeing others work. I've seen many crushed fiberglass boxes and other approaches. If you have something you are proud of I'd love to see it.
Likewise if you know of another approach I should try let me know.
I'll post pics of my IC ducting when I finish.
#4
Rotary Enthusiast
Thread Starter
thanks... (re: pettit).
I saw someones fiberglass efforts and the piece was painted and all the paint was chipping off + the owner looked like he leaned on it er something crushing it.
It looked like a bad head of lettuce jammed up there...
I saw someones fiberglass efforts and the piece was painted and all the paint was chipping off + the owner looked like he leaned on it er something crushing it.
It looked like a bad head of lettuce jammed up there...
#5
Junior Member
Join Date: Nov 2002
Location: Pasadena, CA, USA
Posts: 33
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Brentis
thanks... (re: pettit).
thanks... (re: pettit).
https://www.rx7club.com/forum/showth...hreadid=143584
#6
Rotary Enthusiast
Join Date: Feb 2001
Location: Huntington Beach, CA, USA
Posts: 1,025
Likes: 0
Received 4 Likes
on
4 Posts
I've been planning on doing this for some time now but never got around to it. I even have a '96-'98 IC duct and inlet pipe laying around waiting to be hacked up. Let us know how it goes.
Trending Topics
#11
Rotary Enthusiast
Thread Starter

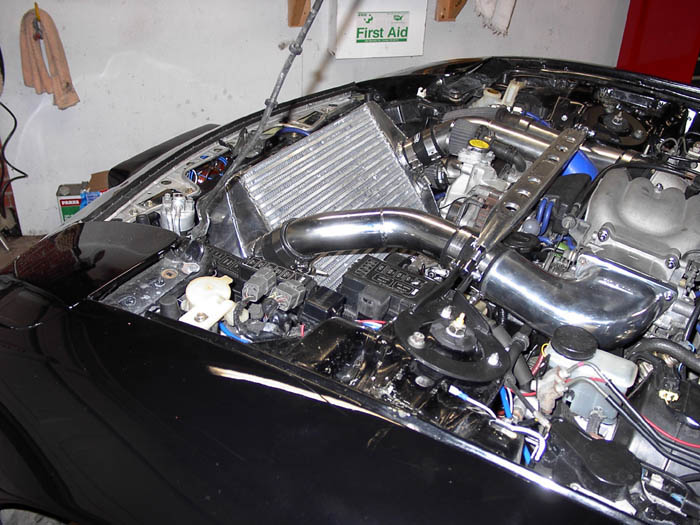

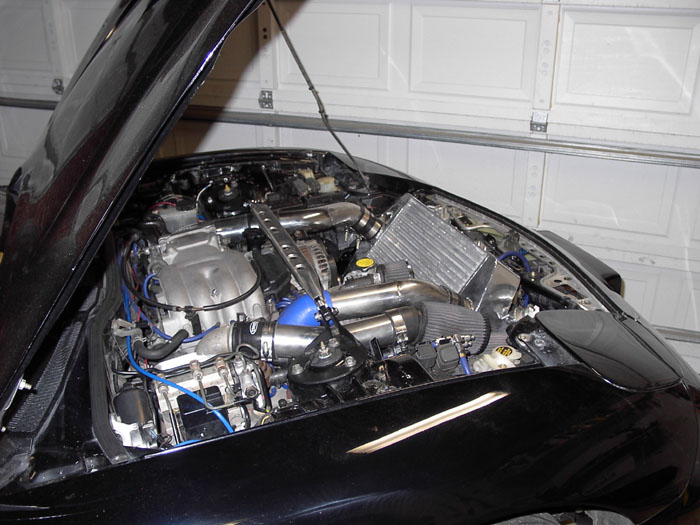

Here's my finished pics. Somehow(one?) the post was deleted with my pics. Comments/questions are welcome.
http://www.thesoftwareprompt.com/tspdocs/DSCN0809.JPG
http://www.thesoftwareprompt.com/tspdocs/DSCN0810.JPG
http://www.thesoftwareprompt.com/tspdocs/DSCN0811.JPG
http://www.thesoftwareprompt.com/tspdocs/DSCN0812.JPG
http://www.thesoftwareprompt.com/tspdocs/DSCN0813.JPG
http://www.thesoftwareprompt.com/tspdocs/DSCN0809.JPG
http://www.thesoftwareprompt.com/tspdocs/DSCN0810.JPG
http://www.thesoftwareprompt.com/tspdocs/DSCN0811.JPG
http://www.thesoftwareprompt.com/tspdocs/DSCN0812.JPG
http://www.thesoftwareprompt.com/tspdocs/DSCN0813.JPG
#14
Senior Member
Join Date: Nov 2001
Location: Lynchburg, VA
Posts: 674
Likes: 0
Received 0 Likes
on
0 Posts
well you're in luck.

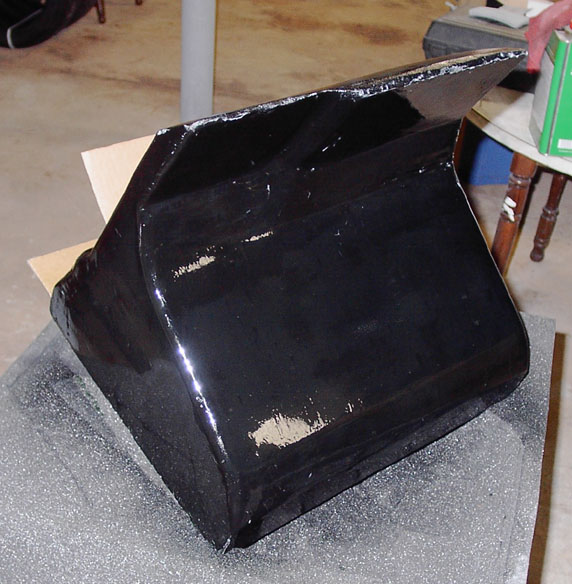

I recently did my own CWR style install. the only thing left for me to do is the intake duct. I have been working on a plug (replica of the final part) and this weekend I finished the plug and did the layup for the mould. once the mould is done Ill be making a part from it.
Ill post a few pictures of my work so far. The pictures are big So im only going to post a few.
keep in mind this is a work in progress. the unique thing about my duct, is that it pulls air along the entire length of the intercooler. all the others I have seen only pull air from the drivers side. I was able to do this because I lowered teh front of the radiator 3/4" and relocated the relay box.
I recently did my own CWR style install. the only thing left for me to do is the intake duct. I have been working on a plug (replica of the final part) and this weekend I finished the plug and did the layup for the mould. once the mould is done Ill be making a part from it.
Ill post a few pictures of my work so far. The pictures are big So im only going to post a few.
keep in mind this is a work in progress. the unique thing about my duct, is that it pulls air along the entire length of the intercooler. all the others I have seen only pull air from the drivers side. I was able to do this because I lowered teh front of the radiator 3/4" and relocated the relay box.
#24
Senior Member
Join Date: Nov 2001
Location: Lynchburg, VA
Posts: 674
Likes: 0
Received 0 Likes
on
0 Posts

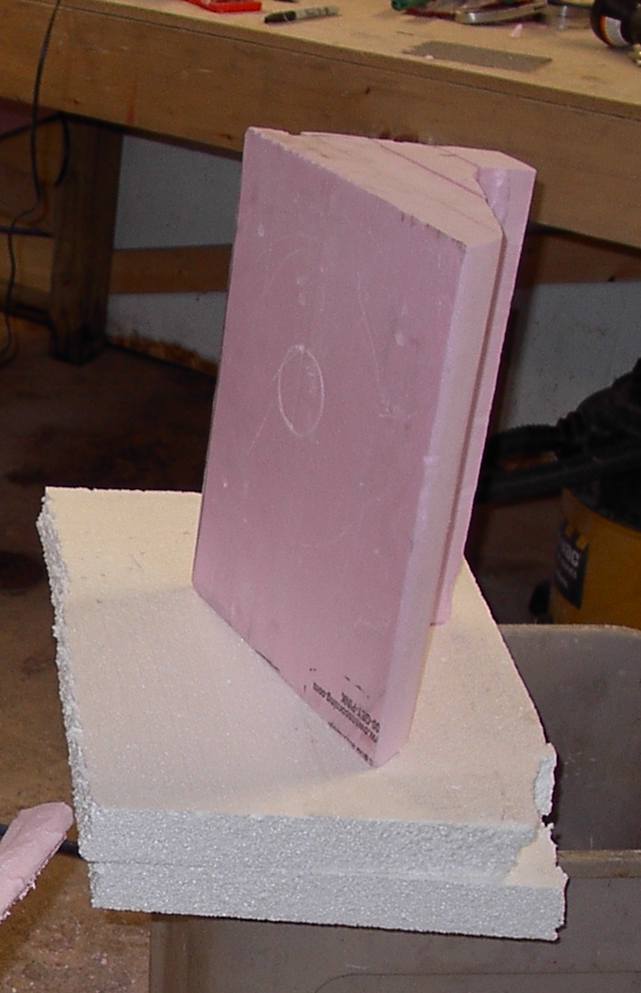

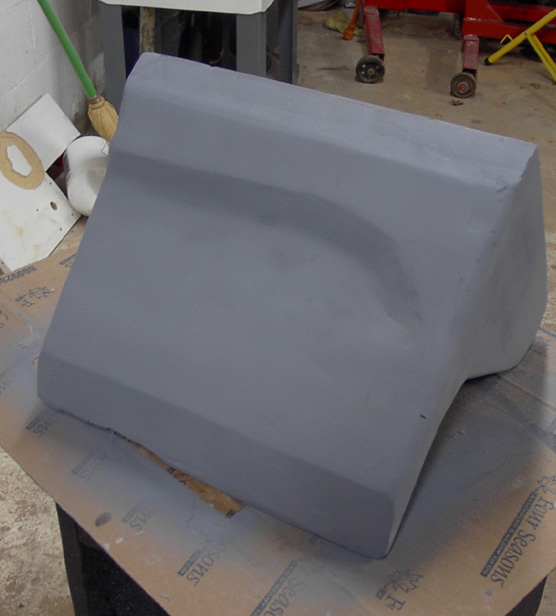

I used epoxy to make my mould and the plug os made using 2" polystyrene foam I bought from Home Depot.
I bought the composite materials from Aircraft Spruce.

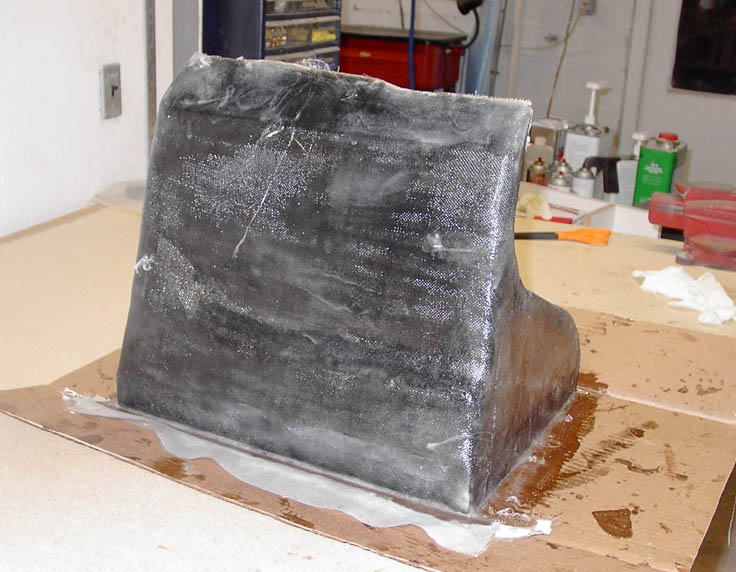

as of today the mould has a gel coat and 2 layers of fiber finished.
later today Ill cut cardboard and epoxy it and another layer of fiber into the mould to make it more rigid.
Since it's only a duct Im not going to get too crasy reinforcing it.

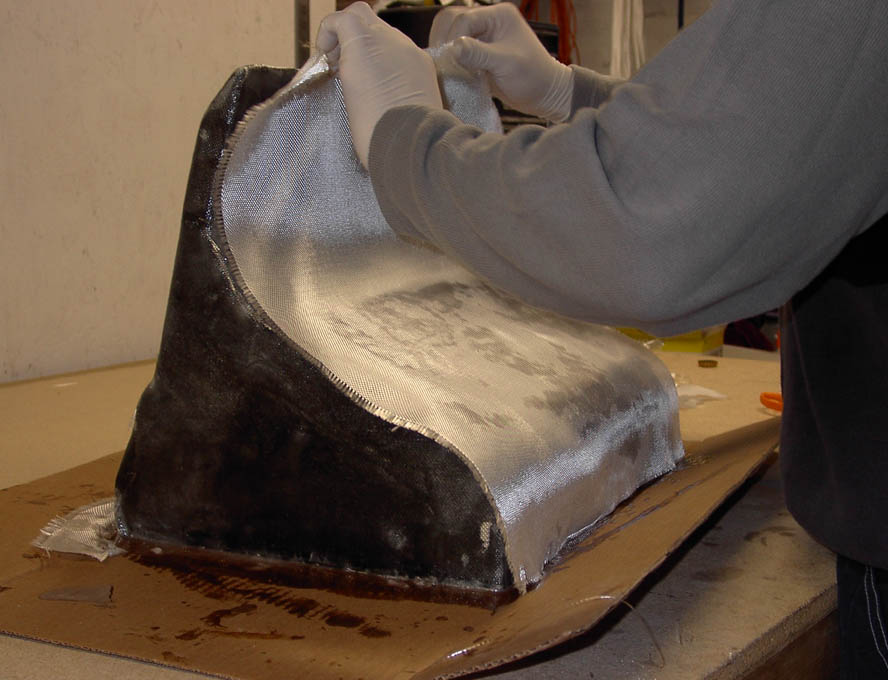

then Ill be cutting the mould into 2 to pull it off teh plug. after that Ill make some flanges and do a 2 part layup of the duct inside the mould. when I finish my part will be a replica of the plug I made from foam. It'll have a smooth finish like the glossy black plug. At first Im going to make a fiberglass one. then some day i'll make one with carbon. After I have the mould making more is easy.
I bought the composite materials from Aircraft Spruce.
as of today the mould has a gel coat and 2 layers of fiber finished.
later today Ill cut cardboard and epoxy it and another layer of fiber into the mould to make it more rigid.
Since it's only a duct Im not going to get too crasy reinforcing it.
then Ill be cutting the mould into 2 to pull it off teh plug. after that Ill make some flanges and do a 2 part layup of the duct inside the mould. when I finish my part will be a replica of the plug I made from foam. It'll have a smooth finish like the glossy black plug. At first Im going to make a fiberglass one. then some day i'll make one with carbon. After I have the mould making more is easy.
