Where can I find the pigtail for the GM 3 Bar Map sensor? I've got the sensor, but am looking for the pigtail. Any advices would be gladly appreciated. Thanks!

-AzEKnightz



The harness? You can contact Banzai and see if they'll sell you one separate from the sensor:

http://banzai-racing.com/store/3bar_...r_adapter.html



Beat me to it... Your a quick one Mahjik



ty, just emailed them. Hopefully they can sell me the pigtail separately. Thanks!

-AzEKnightz



HERE

OR

HERE



the OEM receptacle is here: http://www.bmotorsports.com/shop/pro...oducts_id/1097 but you will have to email them to make a pigtail for you. otherwise you can buy a crimper and do it yourself



I'd get one from Brian, the crimper tool costs more than one pigtail I'm pretty sure.



.



Banzai wont be selling the pigtail separate from the sensor. I guess I'll have to buy the pigtail and do my own crimping or soldering.

-AzEKnightz



I bet you could email Ballenger Motorsports and they could put one together for you



would it be direct plug into the stock rx7 map harness too? I'll give them an email right now.

-AzEKnightz



you put the factory plug into this end:

http://www.bmotorsports.com/shop/pro...oducts_id/1097

and the other end is the Delphi connector:

http://www.bmotorsports.com/shop/product_info.php/products_id/463

that's how the jumper harnesses work. Just like when you buy a jumper harness for the Triumph IAT sensor swap it connects the factory AMP Econoseal 2 pin connector to a Bosch EV1 style connector



Thanks alot arghx, I have no idea which connector it needs because my car is in the shop at the moment.



Can someone verify the pinout of the MAP sensor for me please.

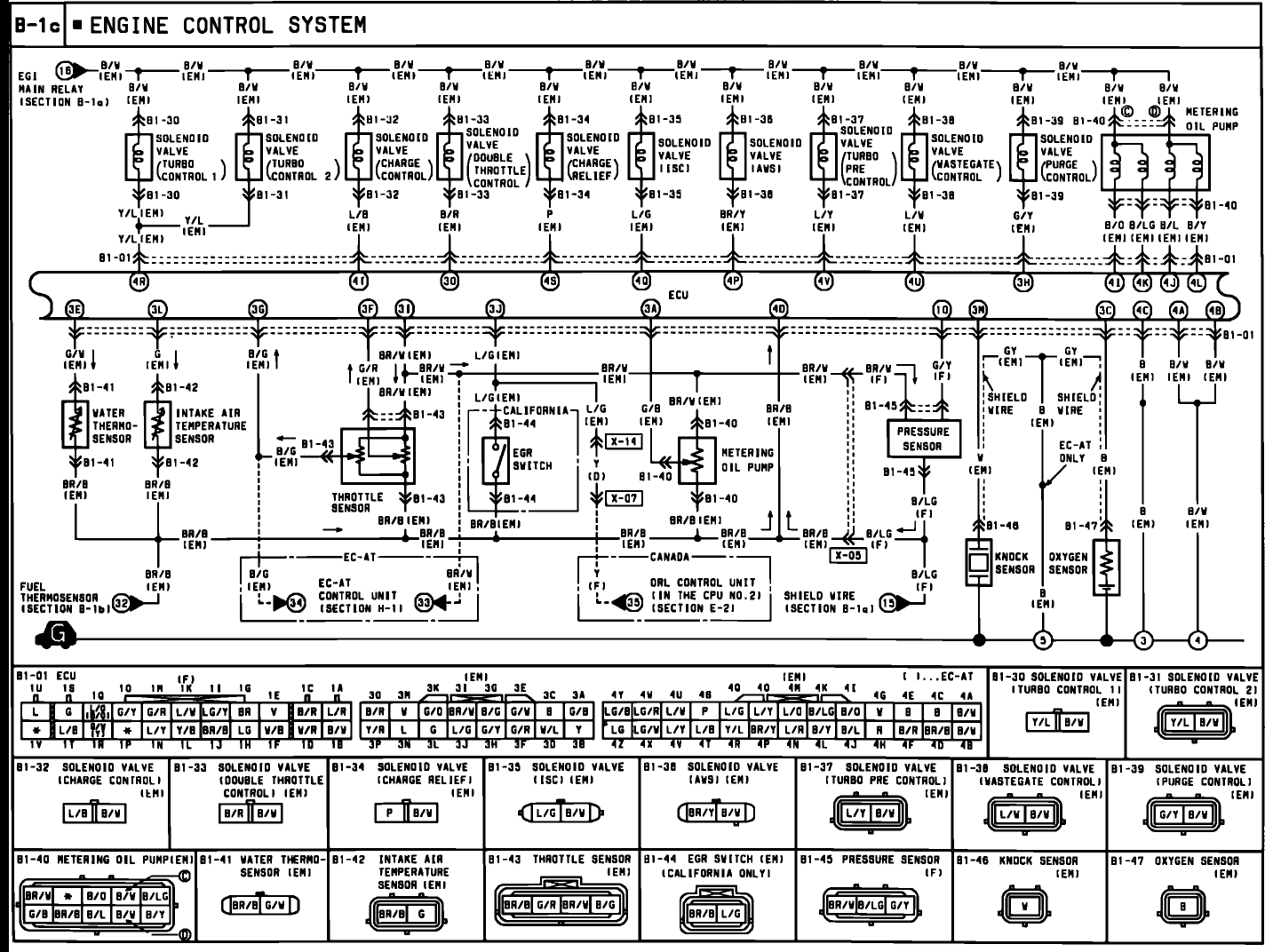

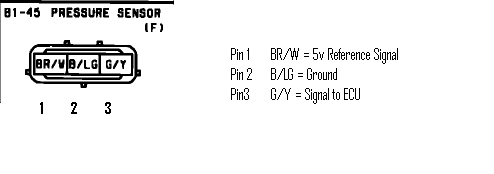

I've attached a picture of what I believe it should be.

-AzEKnightz



Yeah that looks right. The GM MAP sensor should have lettered terminals... somewhere floating around here is a writeup on how to wire it in
