gauge cluster plug pinout?
05-06-13, 06:24 PM
#1
Full Member
Thread Starter
iTrader: (1)
Join Date: Apr 2005
Location: Boston, Mass
Posts: 122
Likes: 0
Received 0 Likes
on
0 Posts
gauge cluster plug pinout?
been looking for one, trying to hook up a new speedo and tach from speed hut. wanted to use the stock harness for the wiring.
05-07-13, 12:34 PM
#2
Recovering Miataholic

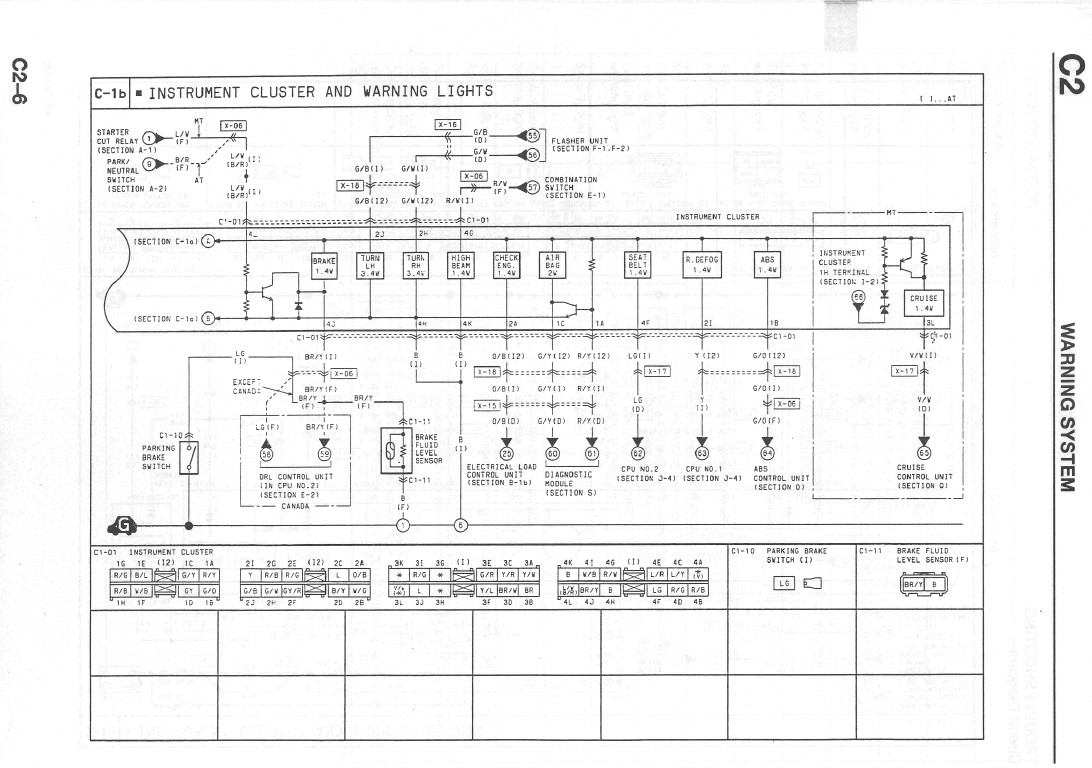

The two pages below from the "Mazda RX-7 1994 Body Electrical Troubleshooting Manual" section C1 should help. The two pages, taken together, show the complete schematic and pinouts of "C1-01," which is actually four connectors to the instrument panel.
