gas tank swap ?

Reply




Old 05-19-04, 07:26 PM
  #1
DragonFly
10 Year Member
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,241
Thanks: 0
Thanked 1 Time in 1 Post
gas tank swap ?

i saw a thread once on it and now i cant find it, im looking to put a 95 gas tank in my 93

anyone done it or remember the link?
damian is offline
Reply With Quote
Old 05-19-04, 07:59 PM
  #2
DragonFly
10 Year Member
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,241
Thanks: 0
Thanked 1 Time in 1 Post
bump
damian is offline
Reply With Quote
Old 05-19-04, 09:53 PM
  #3
Rotary Freak

c00lduke's Avatar

Join Date: Jan 2002
Location: Kansas City, MO
Posts: 2,361
Thanks: 0
Thanked 0 Times in 0 Posts
i've never seen the link but what kinda info are you looking for? I've taken mine out a couple times, maybe i could help.
c00lduke is offline
Reply With Quote
Old 05-19-04, 09:55 PM
  #4
Do it right, do it once

iTrader: (29)

turbojeff's Avatar

Join Date: Apr 2001
Location: Eugene, OR, usa
Posts: 4,797
Thanks: 0
Thanked 2 Times in 2 Posts
It is so simple a guy like you really doesn't need instructions.

I bought a new 95 or 96 tank from Mazdacomp last year for my 93. Installation was very straightforward.

Run the car very low on gas. You don't want to deal with 3-5 gal of gas in a bucket/tank.

Disconnect the fuel pump electrical and hoses.

Open gas door and remove gas cap and then remove the two small bolts that hold the black flange around the filler neck.

There is a ground strap that attaches somewhere near/on the filler neck, I'm not sure where it is.

Get under the car and remove the two bolts that hold the two straps, these support the tank. Now the tank will be free. Drop that puppy down.

I hope I didn't forget anything...

On the swap, I bought a NEW tank and it didn't have the thick rubber padding that insulates the tank from rubbing the body. I removed all the rubber and foam padding from the existing tank and used rubber cement to attach it to the new tank.

R+R filler neck and the fuel pump assy to the new tank, don't forget the little flapper that prevents gas from flowing back up the filler neck.

Installation is the reverse of removal (I always wanted to say that).

I'd say the entire job took me about 1hr. The hardest part was dealing with that freakin' ground strap, I didn't see it until the tank was hanging by it so I had to struggle to remove it.

Do us all a favor and measure the amount of gas you put in the car to get it started and the amount you put in it at the gas station.

I put about 1gal of gas in my tank and drove the car to a gas station about 1mi away. IIRC the manual states the tank holds 21gal or so. I don't think my car took more than 15-16gal.
turbojeff is offline
Reply With Quote
Old 05-19-04, 11:22 PM
  #5
DragonFly
10 Year Member
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,241
Thanks: 0
Thanked 1 Time in 1 Post
BOOOYAAA JEFF!!!!
exactly what i needed to hear :-)
damian is offline
Reply With Quote
Old 05-19-04, 11:32 PM
  #6
DragonFly
10 Year Member
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,241
Thanks: 0
Thanked 1 Time in 1 Post
by the way, did you change the tank cuz of the old tank fuel starve issues?
damian is offline
Reply With Quote
Old 05-19-04, 11:33 PM
  #7
\m/
10 Year Member

Rhode_Dog's Avatar

Join Date: Mar 2003
Location: Asheville NC
Posts: 675
Thanks: 0
Thanked 0 Times in 0 Posts
excuse my ignorance but why would you want the newer model gas tank? holds more fuel? less fuel slosh?
Rhode_Dog is offline
Reply With Quote
Old 05-19-04, 11:36 PM
  #8
DragonFly
10 Year Member
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,241
Thanks: 0
Thanked 1 Time in 1 Post
supposedly better design (baffel or pickup or whateer) so you get less fuel starve on hard lefts at the track
damian is offline
Reply With Quote
Old 05-19-04, 11:44 PM
  #9
Do it right, do it once

iTrader: (29)

turbojeff's Avatar

Join Date: Apr 2001
Location: Eugene, OR, usa
Posts: 4,797
Thanks: 0
Thanked 2 Times in 2 Posts
Originally posted by damian
by the way, did you change the tank cuz of the old tank fuel starve issues?
Sort of. I had fuel starvation issues if I auto-x with less than 5/8 tank. That is pretty pathetic. Then about 1yr later I started hearing the baffles clunking around in the tank, a couple of the larger sheetmetal baffles broke so I pulled the trigger and bought the new tank.

I can now run the car down to about 1/4 tank with no problems at the auto-x. I think that is acceptable.
turbojeff is offline
Reply With Quote
Old 05-19-04, 11:55 PM
  #10
DragonFly
10 Year Member
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,241
Thanks: 0
Thanked 1 Time in 1 Post
yes, again, just what i want to hear... im in teh same boat, fuel starve way before 1/2 tank and hearing noise back there

...ordering tank from mazdaspeed now :-)
damian is offline
Reply With Quote
Old 05-20-04, 09:55 AM
  #11
Rotary Freak
10 Year Member

PVerdieck's Avatar

Join Date: May 2002
Location: Houston
Posts: 1,742
Thanks: 0
Thanked 0 Times in 0 Posts
Was the tank modded in 95, or do 94s have the improved tank?
PVerdieck is offline
Reply With Quote
Old 05-20-04, 09:57 AM
  #12
-
10 Year Member
iTrader: (3)

Join Date: Nov 2002
Location: SF Bay Area
Posts: 624
Thanks: 0
Thanked 0 Times in 0 Posts
i believe the tanks were changed in 94 95 and 96
rockshox is offline
Reply With Quote
Old 05-20-04, 10:06 AM
  #13
Place your ad here...
5 Year Member

saxyman990's Avatar

Join Date: Apr 2002
Location: Dayton, OH
Posts: 1,336
Thanks: 0
Thanked 0 Times in 0 Posts
Interesting! This is good to hear. I'm having the same problem, but I had no idea they changed the design. Thanks for the info!

Rob
saxyman990 is offline
Reply With Quote
Old 05-20-04, 10:52 AM
  #14
Do it right, do it once

iTrader: (29)

turbojeff's Avatar

Join Date: Apr 2001
Location: Eugene, OR, usa
Posts: 4,797
Thanks: 0
Thanked 2 Times in 2 Posts
Originally posted by rockshox
i believe the tanks were changed in 94 95 and 96
They were changed in 94, Mazda added the plastic "loops" to hold the new baffle but didn't add the baffle! It is basically just a cover over the plastic fuel well thingy.

I *think* that the 96+ tank is the one to have but I also remember someone saying the 95+ tank has the same p/n...
turbojeff is offline
Reply With Quote
Old 07-01-05, 08:28 AM
  #15
FD / LSX
iTrader: (2)

Join Date: Jun 2004
Location: wawayanda, NY
Posts: 1,359
Thanks: 0
Thanked 0 Times in 0 Posts
where do i get this tank now?
2MCHPWR is offline
Reply With Quote
Old 07-05-05, 12:26 PM
  #16
DragonFly
10 Year Member
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,241
Thanks: 0
Thanked 1 Time in 1 Post
you looking for a 95 tank? just order one, that is what I did.
damian is offline
Reply With Quote
Old 07-05-05, 04:14 PM
  #17
Rotary Enthusiast
10 Year Member

Join Date: Jul 2001
Location: Nashville, TN
Posts: 1,087
Thanks: 0
Thanked 0 Times in 0 Posts
Can anyone verify that the 95 tank is the same as the 96+? Dlrship was not helping me out with a 96+ part.
Nameless is offline
Reply With Quote
Old 07-05-05, 04:49 PM
  #18
Registered User
5 Year Member

DigDug's Avatar

Join Date: Jan 2003
Location: Sterling, VA
Posts: 1,038
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by damian
you looking for a 95 tank? just order one, that is what I did.
Did you order it from Mazda Motorsports? How much do they run?
DigDug is offline
Reply With Quote
Old 07-05-05, 07:51 PM
  #19
development
10 Year Member

dubulup's Avatar

Join Date: Aug 2002
Location: Lafayette, LA
Posts: 5,714
Thanks: 0
Thanked 1 Time in 1 Post
I believe the 95 with 96 build dates have the new tank??? read somewhere on forum, so don't hold that to me.
dubulup is offline
Reply With Quote
Old 07-07-05, 08:57 PM
  #20
Full Member
5 Year Member

Join Date: Feb 2004
Location: Lewisville Texas
Posts: 64
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by damian
you looking for a 95 tank? just order one, that is what I did.
well of course we'd have to order it, we wouldn't steal it, would we? :-P where could i order one without gettin raped at a mazda dealership?
Box of Tj is offline
Reply With Quote
Old 12-04-05, 04:59 PM
  #21
DETH TRP
10 Year Member
iTrader: (7)

4CN Air's Avatar

Join Date: Mar 2004
Location: Manhattan Beach, CA
Posts: 2,544
Thanks: 0
Thanked 0 Times in 0 Posts
p/n? Also how close is it to the metal under the spare tire? I'm dropping mine to cut out the spare tire hump and weld in a flat piece of sheetmetal to help mount my battery (eventually external fuel pumps and fuel resevoir possibly too).

Also if I fill my car and hit turns at any speed the fuel just flows out of the filler hose, I've gotta check this out, oh yeah and figure out something to do with EVAP since it's not going to the engine bay anymore.

Everything turns into a major project.
4CN Air is offline
Reply With Quote
Old 03-21-07, 07:57 AM
  #22
Newb Photog
10 Year Member

wptrx7's Avatar

Join Date: Jul 2001
Location: new jersey
Posts: 2,172
Thanks: 0
Thanked 0 Times in 0 Posts

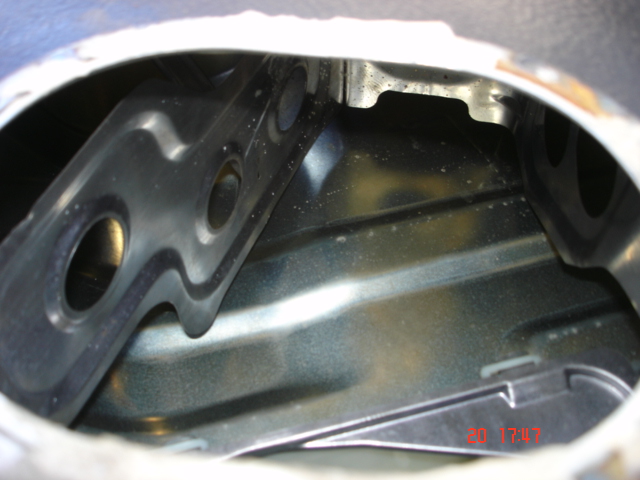

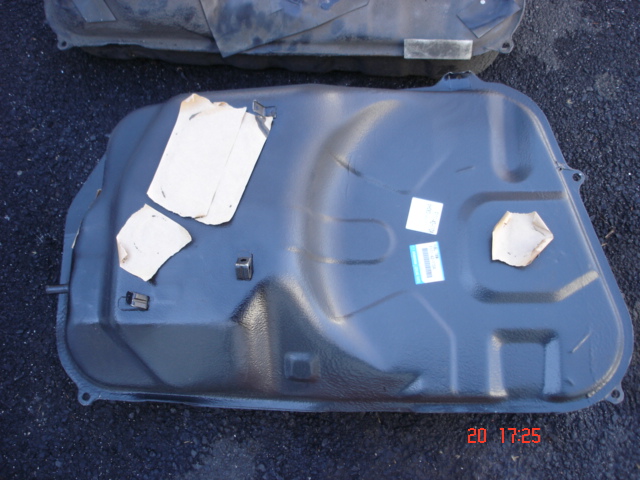

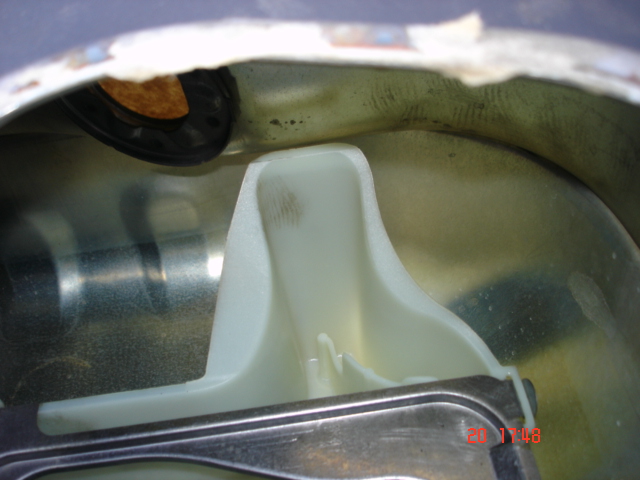

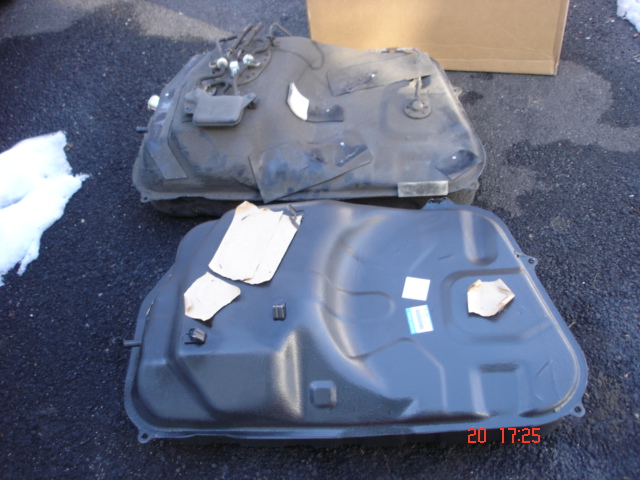

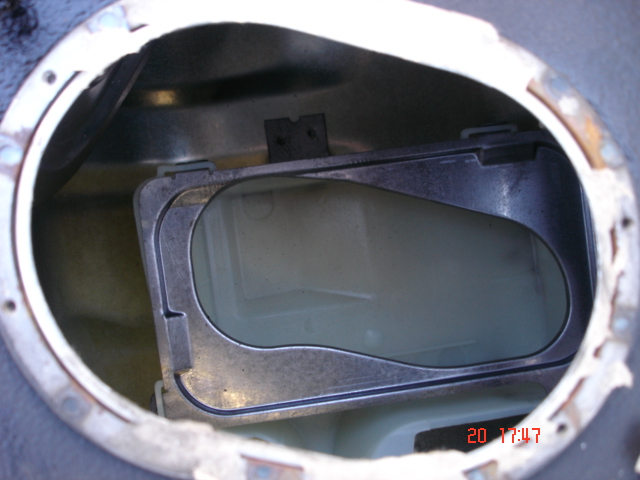

I used this thread to help with the removal of the gas tank, but there were no pictures of the new baffels. i didn't see much of a difference between the two, but maybe some of you experts can see somethins I don't. The firs set is the new gas tank.
Attached Thumbnails gas tank swap ?-dsc00004.jpg   gas tank swap ?-dsc00003.jpg   gas tank swap ?-dsc00006.jpg   gas tank swap ?-dsc00007.jpg   gas tank swap ?-dsc00008.jpg

wptrx7 is offline
Reply With Quote
Old 03-21-07, 07:58 AM
  #23
Newb Photog
10 Year Member

wptrx7's Avatar

Join Date: Jul 2001
Location: new jersey
Posts: 2,172
Thanks: 0
Thanked 0 Times in 0 Posts

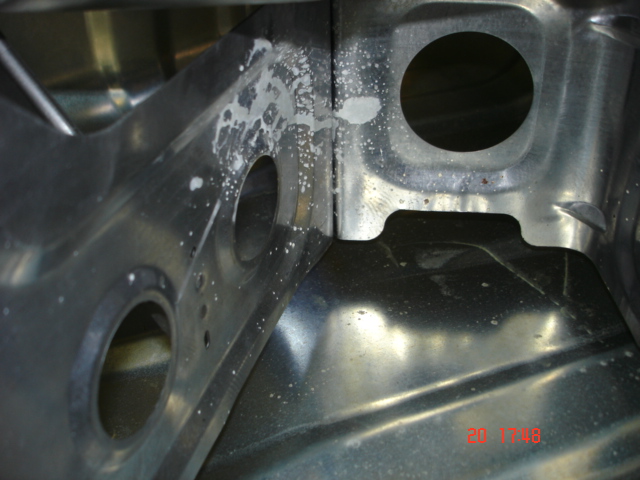

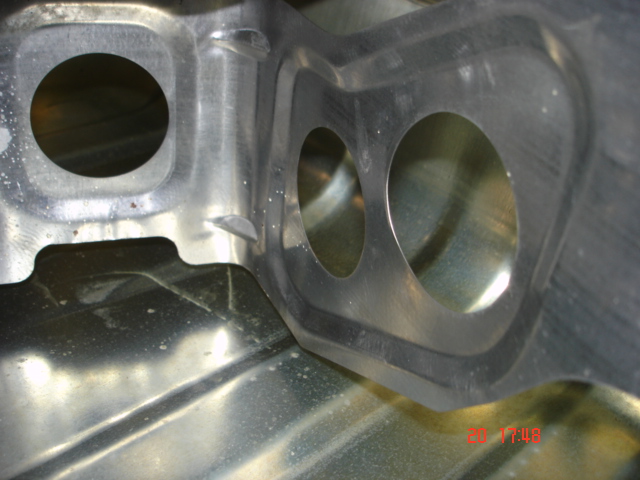

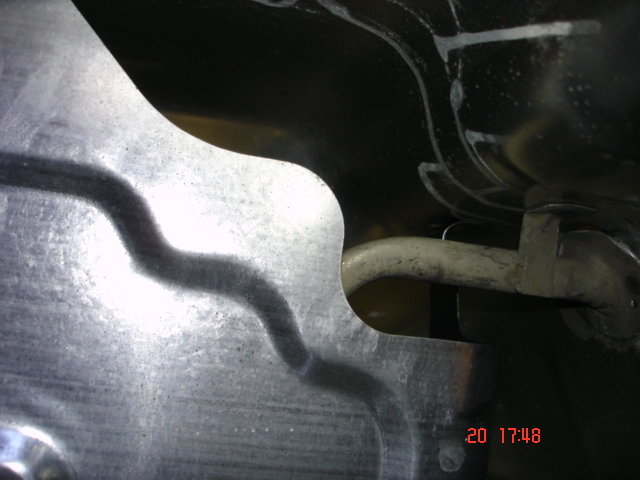

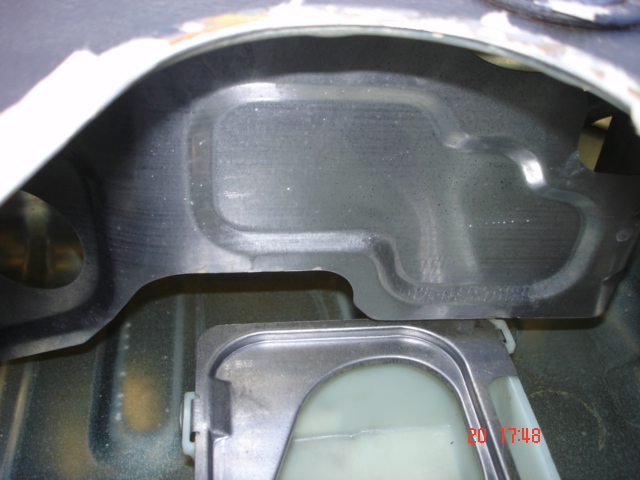

This is more of the new one
Attached Thumbnails gas tank swap ?-dsc00009.jpg   gas tank swap ?-dsc00010.jpg   gas tank swap ?-dsc00011.jpg   gas tank swap ?-dsc00012.jpg
wptrx7 is offline
Reply With Quote
Old 03-21-07, 08:01 AM
  #24
Newb Photog
10 Year Member

wptrx7's Avatar

Join Date: Jul 2001
Location: new jersey
Posts: 2,172
Thanks: 0
Thanked 0 Times in 0 Posts

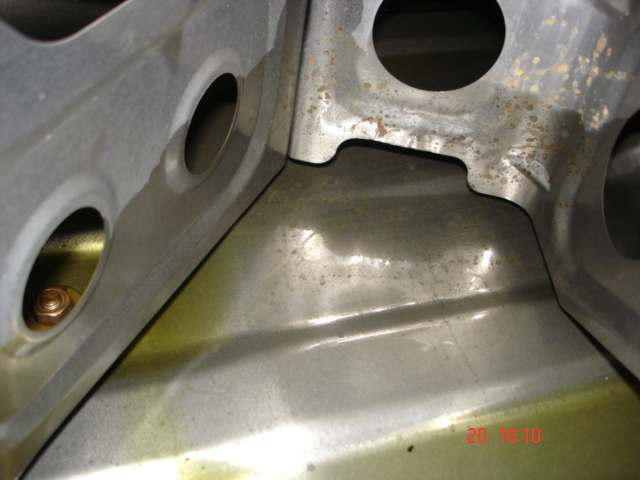

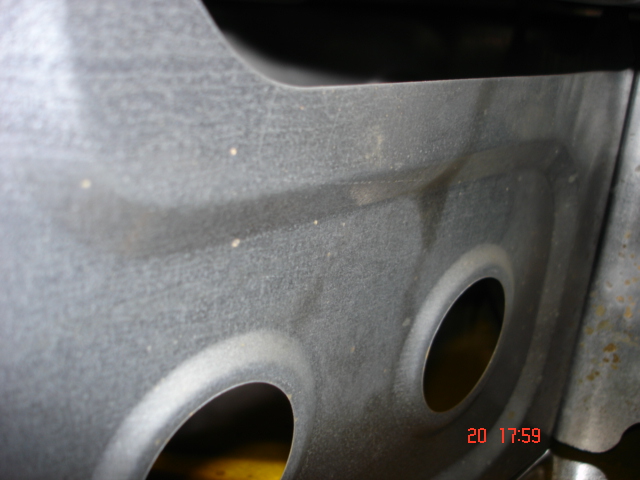

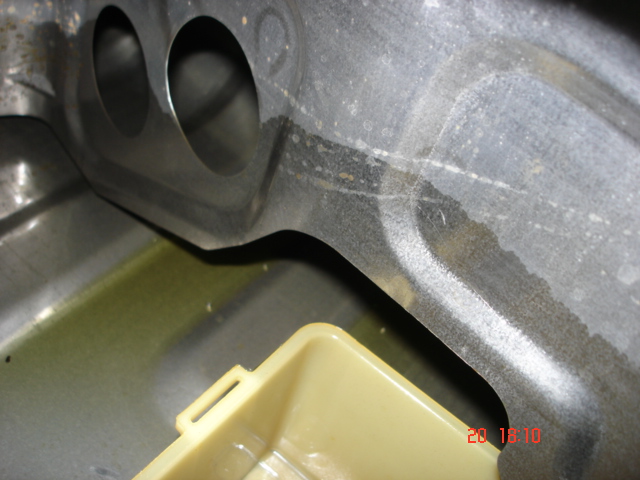

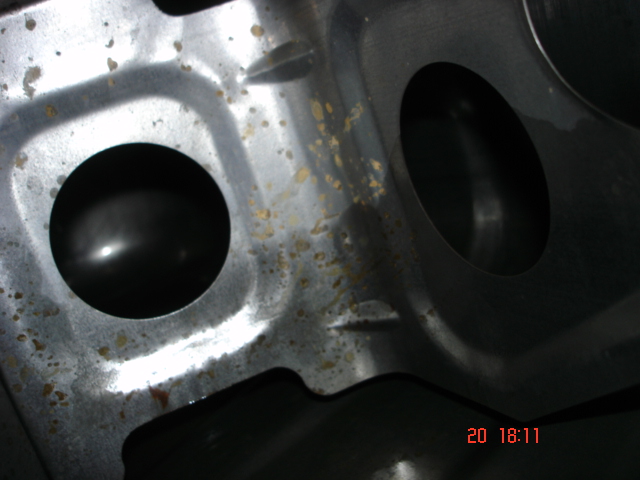

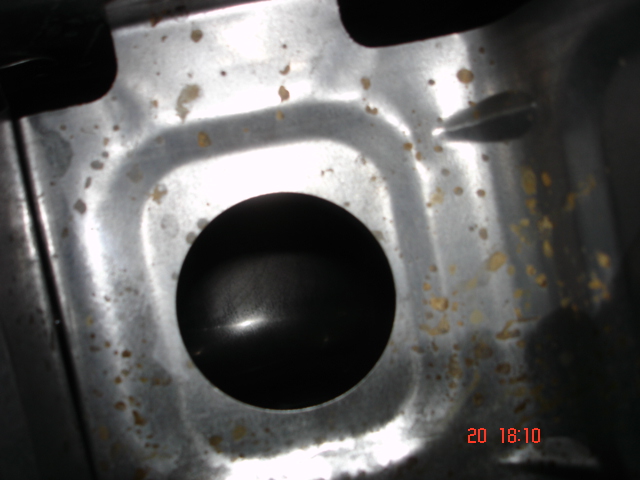

This is the old gas tank. Sorry for the bad pictures, by this timemy hands were freezing and I had gloves on.

I'm not sure this mod was worth it. And if your car was sitting for a long time, like mine, it also doesn't pay to get a new gas tank. Just take the old gas out if you are paranoid and put new gas in.

It was a waste of $525 for a new gas tank.

Luigi
Attached Thumbnails gas tank swap ?-dsc00024.jpg   gas tank swap ?-dsc00025.jpg   gas tank swap ?-dsc00026.jpg   gas tank swap ?-dsc00027.jpg   gas tank swap ?-dsc00030.jpg

wptrx7 is offline
Reply With Quote
Old 03-21-07, 08:29 AM
  #25
Custom or Nothing
10 Year Member
iTrader: (2)

oorx7's Avatar

Join Date: Jul 2003
Location: Lombard, IL
Posts: 1,779
Thanks: 0
Thanked 0 Times in 0 Posts
The plate that goes over the plastic tank that the fuel pump assembly goes into is the only difference I can see.



here you cans see that the plastic box doesn't have the cover.


All those other pictures are just braces for the structure of the tank itself.
oorx7 is offline
Reply With Quote
