I got a fuel hose recall kit in the mail today, and I was wanting to know if anyone had some information on how to install it? I would just like to look at some pictures or something before I start it. I will be installing it this weekend so I have some time.



I would recommend downloading the FSM (which can be downloaded from the link at the top of the 3rd gen section) and reading through the section on the fuel delivery system. I'm at work right now so I can't list the exact pages to review in the FSM.

Good Luck.



It's pretty strait forward. Just be careful to label the fuel lines in and out so you don't get them mixed up.



Can you please post the Mazda part number for the kit?
Of course it is not on the parts fich.



https://www.rx7club.com/3rd-generation-specific-1993-2002-16/fuel-hose-leak-n3a1-13-s70-521752/



I found this page to be rather helpful for the fuel & vacuum hose replacement:

http://www.rotormafia.com/96koverhaul/

-Cliff



Thanks for the information. This is more than enough

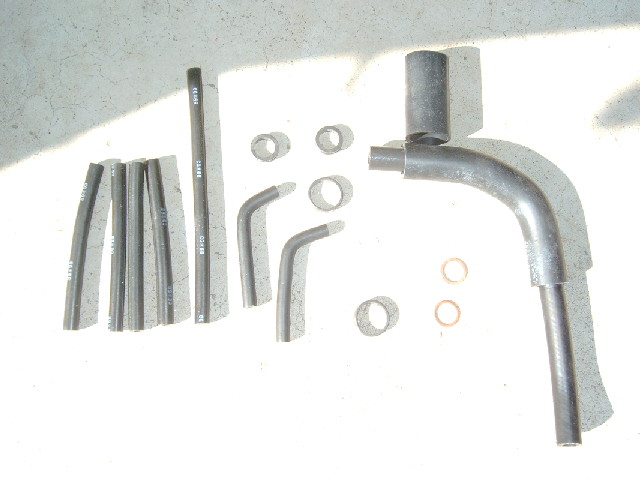

I got the fuel rails off and installed a couple of the lines that come with the recall kit. I don't know what to do with the 2 copper gasket/washers? I just want to know where I need to install everything in the picture?



Mazda is still honoring recalls on RX7's?



It is just a recall kit meaning that if the fuel lines were ever disconected they had to be replaced with the recall kit. even though when the dealer installed a new engine they didn't....



The copper gaskets are for the banjo bolt on the secondary fuel rail.



I just got my kit from Ray. He is currently having a sale on the fuel line recall kit. Only $75 bux.

After seeing how flexible the new hoses are compared to my original stockers....I would strongly suggest those people that are doing any work in that area (injectors, FPD, rat's nest, etc....) to replace these lines!
