Flushing brakes - clutch slave cylinder

Thread Tools

Search this Thread

Old 08-27-22, 10:31 PM
  #1
Eats, Sleeps, Dreams Rotary

Thread Starter

matty's Avatar

Join Date: Mar 2001
Location: CT
Posts: 4,923
Likes: 0
Received 22 Likes on 14 Posts
Flushing brakes - clutch slave cylinder

When flushing the brake fluid are you also bleeding from the clutch slave cylinder? I read that they share the same fluid.
Old 08-27-22, 10:37 PM
  #2
Senior Member

iTrader: (2)

coolrotariesR1's Avatar

Join Date: Oct 2009
Location: Austin TX
Posts: 415
Received 10 Likes on 8 Posts
Originally Posted by matty
When flushing the brake fluid are you also bleeding from the clutch slave cylinder? I read that they share the same fluid.
That's correct. Make sure you keep the reservoir full so not to introduce air.
Old 08-27-22, 10:43 PM
  #3
half ass 2 or whole ass 1

iTrader: (114)

cr-rex's Avatar

Join Date: Nov 2011
Location: okinawa to tampa
Posts: 3,425
Received 480 Likes on 350 Posts
They share the same fluid but are divided. You can drain one and not the other. There is a wall in the reservoir between the 2. Below a certain point they don't share fluid. So if you bleed the clutch and run the reservoir dry it doesn't affect the brakes at all and vice versa.

So if you bleed one, you are not bleeding the other. They don't influence each other at all. Same reservoir, same fluid, 2 separate chambers

Last edited by cr-rex; 08-27-22 at 10:52 PM.
Old 08-28-22, 06:45 AM
  #4
Urban Combat Vet

iTrader: (16)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 12,023
Received 866 Likes on 615 Posts
Put a small light behind the reservoir and it’s a lot easier to monitor fluid levels (especially with new clean fluid) and not run the rear clutch chamber dry.
Old 08-28-22, 06:45 PM
  #5
Eats, Sleeps, Dreams Rotary

Thread Starter

matty's Avatar

Join Date: Mar 2001
Location: CT
Posts: 4,923
Likes: 0
Received 22 Likes on 14 Posts
Originally Posted by cr-rex
They share the same fluid but are divided. You can drain one and not the other. There is a wall in the reservoir between the 2. Below a certain point they don't share fluid. So if you bleed the clutch and run the reservoir dry it doesn't affect the brakes at all and vice versa.

So if you bleed one, you are not bleeding the other. They don't influence each other at all. Same reservoir, same fluid, 2 separate chambers
ok just want to make sure I understand you.

I am going to pressurize the reservoir with the motive brake bleeder. All I need to do is release the valve for the slave cylinder and it will bleed. Just like the brakes right? There is nothing I need to do special for the slave versus the brakes to flush it/them

while doing this I need to make sure the reservoir stays fairly full.


Old 08-28-22, 07:24 PM
  #6
Eats, Sleeps, Dreams Rotary

Thread Starter

matty's Avatar

Join Date: Mar 2001
Location: CT
Posts: 4,923
Likes: 0
Received 22 Likes on 14 Posts
Also. Is it recommended to use synthetic fluid on our cars ?
Old 08-28-22, 10:40 PM
  #7
~17 MPG

iTrader: (2)

scotty305's Avatar

Join Date: Jan 2004
Location: Bend, OR
Posts: 3,292
Received 226 Likes on 152 Posts
I bled my clutch slave when bleeding the brakes, the procedure is the same when you're using the pedal to push the fluid out. The clutch slave bleed line is the same size as the brake bleed line. I assume it would work the same if using a Motive bleeder to pressurize the system. I used Pentosin Super DOT4 fluid, trackday people claim it's a good value and it was the best I could find in stock at local auto parts stores.

In case you have trouble with your Motive bleeder, I used this method and it worked well (no helper needed):
Old 08-29-22, 03:49 AM
  #8
Urban Combat Vet

iTrader: (16)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 12,023
Received 866 Likes on 615 Posts
Originally Posted by matty
ok just want to make sure I understand you.

I am going to pressurize the reservoir with the motive brake bleeder. All I need to do is release the valve for the slave cylinder and it will bleed. Just like the brakes right? There is nothing I need to do special for the slave versus the brakes to flush it/them

while doing this I need to make sure the reservoir stays fairly full.
Yep. And obviously occasionally check the Motive fluid level and pressure. But if all you’re doing is the slave it shouldn’t take much.

FWIW I like to keep a little bucket of dish-soapy water and an old rag close by in case of a spill. I can be clumsy in my old age.
Old 09-01-22, 07:41 PM
  #9
Eats, Sleeps, Dreams Rotary

Thread Starter

matty's Avatar

Join Date: Mar 2001
Location: CT
Posts: 4,923
Likes: 0
Received 22 Likes on 14 Posts
Where is the slave cylinder located and what’s the best way to access it from the ground (no lift)

and yes. Old age. I spill everything.
Old 09-02-22, 03:35 AM
  #10
Urban Combat Vet

iTrader: (16)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 12,023
Received 866 Likes on 615 Posts
Drivers side of transmission near the starter. The metal transmission undertray will need to be dropped and you’ll need a Jack and 4 stands. Since the bleeder is right at the aft end of the cylinder you’d want the car at least level. So stands at all four corners.



Last edited by Sgtblue; 09-02-22 at 05:25 AM.
Old 09-05-22, 08:12 PM
  #11
Eats, Sleeps, Dreams Rotary

Thread Starter

matty's Avatar

Join Date: Mar 2001
Location: CT
Posts: 4,923
Likes: 0
Received 22 Likes on 14 Posts
Got this project done

thanks everyone.
The following 3 users liked this post by matty:
gracer7-rx7 (09-06-22), scotty305 (09-05-22), Sgtblue (09-06-22)
Old 09-06-22, 07:11 AM
  #12
Racecar - Formula 2000


DaveW's Avatar

Join Date: Sep 2002
Location: Bath, OH
Posts: 3,850
Received 277 Likes on 198 Posts
Originally Posted by matty
Also. Is it recommended to use synthetic fluid on our cars ?
Use DOT 4. And nowadays I think they're all synthetic.
The following users liked this post:
Sgtblue (09-06-22)
Old 09-06-22, 06:36 PM
  #13
Eats, Sleeps, Dreams Rotary

iTrader: (17)

neit_jnf's Avatar

Join Date: Apr 2003
Location: Around
Posts: 3,908
Received 187 Likes on 135 Posts

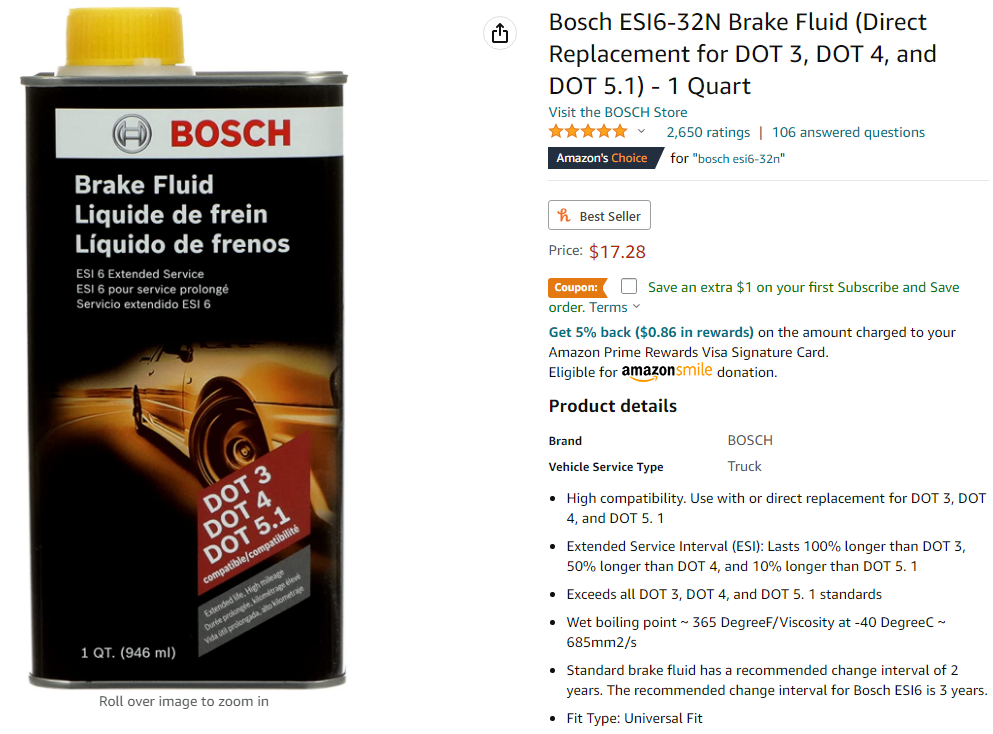

I use this one


The following 2 users liked this post by neit_jnf:
jza80 (09-07-22), Sgtblue (09-07-22)
