AN Fittings
#1
AN Fittings
Anybody know of a "cheap" source for AN fittings? I know the words cheap and AN fitting don't really fit in the same sentence, but I thought Id ask. I know there are some made in China options that are quite cheap, but Id feel weary using something like that without confirmation from somebody here who's used the same brand and can vouch for it. Any info would be appreciated.
Cheers!
Cheers!
#7
Big Bird's Here!!!
iTrader: (26)
I have a mix of Earls, Russels, AeroQuip Pro, and Jegs. Jegs is the cheapest ones I have used. They're not bad in terms of quality but they definitly work when on a budget.
Aeroquip Performance | Performance Plumbing, Hoses and Fittings
AN Adapters & AN Hose Ends and Hose | AN Plumbing
Holley Performance Earls Products
Fittings & Hose - Free Shipping on All Orders @ JEGS
I also put Permatex High Performance Thread Sealant on the threads just to be safe. I know, its not needed with AN fittings but I like have that peace of mind when using cheaper fittings.
http://www.permatex.com/products-2/p...sealant-detail
Aeroquip Performance | Performance Plumbing, Hoses and Fittings
AN Adapters & AN Hose Ends and Hose | AN Plumbing
Holley Performance Earls Products
Fittings & Hose - Free Shipping on All Orders @ JEGS
I also put Permatex High Performance Thread Sealant on the threads just to be safe. I know, its not needed with AN fittings but I like have that peace of mind when using cheaper fittings.
http://www.permatex.com/products-2/p...sealant-detail
Trending Topics
#8
Goodfalla Engine Complete
iTrader: (28)
The threads are not a sealing surface. Why would you do that?
Unless it is something like a weak loctite to prevent it from vibrating loose? And even then it is not recommended.
Buy the little gasket rings if you want to be safe and have the extra sealing capability.
Unless it is something like a weak loctite to prevent it from vibrating loose? And even then it is not recommended.
Buy the little gasket rings if you want to be safe and have the extra sealing capability.
#9
GorillaRaceEngineering.co
iTrader: (1)
I have a mix of Earls, Russels, AeroQuip Pro, and Jegs. Jegs is the cheapest ones I have used. They're not bad in terms of quality but they definitly work when on a budget.
Aeroquip Performance | Performance Plumbing, Hoses and Fittings
AN Adapters & AN Hose Ends and Hose | AN Plumbing
Holley Performance Earls Products
Fittings & Hose - Free Shipping on All Orders @ JEGS
I also put Permatex High Performance Thread Sealant on the threads just to be safe. I know, its not needed with AN fittings but I like have that peace of mind when using cheaper fittings.
Thread Sealants : Permatex® High Performance Thread Sealant
Aeroquip Performance | Performance Plumbing, Hoses and Fittings
AN Adapters & AN Hose Ends and Hose | AN Plumbing
Holley Performance Earls Products
Fittings & Hose - Free Shipping on All Orders @ JEGS
I also put Permatex High Performance Thread Sealant on the threads just to be safe. I know, its not needed with AN fittings but I like have that peace of mind when using cheaper fittings.
Thread Sealants : Permatex® High Performance Thread Sealant
-J
#10
Hey...Cut it out!
iTrader: (4)
Are we talking about AN Adapters, such as those used to convert the oil cooler lines over, or AN Hose Ends that thread onto said adapters when using AN hoses for the oil coolers?
Even though I live quite close to Jegs and my oil cooler hoses & hose ends are their 10AN Push-Loc ones, the associated M16x1.5 and M18x1.5 adapters are from a shop just outside of London. Unless there is an immediate need for a fitting or adapter, my source (including currency conversion and shipping) is about 2/3 of the cost of Jegs or Mazdatrix for just the parts.
As for hoses, Jegs is usually the least expensive and most convenient when utilizing their brand. I've not had any issue with mixing 03an lines from Jegs with adapters from my british source. Just remember to replace all crush washers with copper ones
Even though I live quite close to Jegs and my oil cooler hoses & hose ends are their 10AN Push-Loc ones, the associated M16x1.5 and M18x1.5 adapters are from a shop just outside of London. Unless there is an immediate need for a fitting or adapter, my source (including currency conversion and shipping) is about 2/3 of the cost of Jegs or Mazdatrix for just the parts.
As for hoses, Jegs is usually the least expensive and most convenient when utilizing their brand. I've not had any issue with mixing 03an lines from Jegs with adapters from my british source. Just remember to replace all crush washers with copper ones
#11
Big Bird's Here!!!
iTrader: (26)
I understand its not needed, just like rx7 owners who premix a little of 2 stroke in their tanks (in addtion to running an OMP). Its for peace of mind.
Here is a very good but brief explanation of Galling by Fastenal
https://www.fastenal.com/content/fed...%20Galling.pdf
And Wiki
http://en.wikipedia.org/wiki/Galling
I never knew there was a *CORRECT waste of time. And it only raises the risk if you apply it IMPROPERLY.
#12
Goodfalla Engine Complete
iTrader: (28)
I usually use some nuclear grade anti-seize to prevent galling.
Hadn't though about it much since I am not using steel fittings. I may just use a tad of the stuff on all of my fittings juat in case. Can't really hurt unless I use too much.... much like pre mix. ;-)
Hadn't though about it much since I am not using steel fittings. I may just use a tad of the stuff on all of my fittings juat in case. Can't really hurt unless I use too much.... much like pre mix. ;-)
#14
GorillaRaceEngineering.co
iTrader: (1)
Yes, that is one reason. Its less of a sealant and more of a thread protector...from Galling. When you tighten down the fitting the sealing surface is not the threads as you said. However, the threads on the both fittings being joined see a lot of friction in order to achieve a good seal. "Galling is a form of wear caused by adhesion between sliding surfaces." Normally the Anodized coating aids in preventing galling but when you use cheap inexpensive fittings like jegs and summit brand it can become an issue due to lesser quality Anodize/fitting. The Thread Sealant acts as a lubricator and also prevents the fittings from wiggling/loosening when the sealant cures.
I understand its not needed, just like rx7 owners who premix a little of 2 stroke in their tanks (in addtion to running an OMP). Its for peace of mind.
Here is a very good but brief explanation of Galling by Fastenal
https://www.fastenal.com/content/fed...%20Galling.pdf
And Wiki
Galling - Wikipedia, the free encyclopedia
I never knew there was a *CORRECT waste of time. And it only raises the risk if you apply it IMPROPERLY.
I understand its not needed, just like rx7 owners who premix a little of 2 stroke in their tanks (in addtion to running an OMP). Its for peace of mind.
Here is a very good but brief explanation of Galling by Fastenal
https://www.fastenal.com/content/fed...%20Galling.pdf
And Wiki
Galling - Wikipedia, the free encyclopedia
I never knew there was a *CORRECT waste of time. And it only raises the risk if you apply it IMPROPERLY.
#16
Lives on the Forum
iTrader: (9)
I use XRP fittings, and what I've noticed is that they are more compact than many others, including Aeroquip—the radiuses are tighter, legs shorter, etc. which does make a difference in how you can build. And, their forged bends are even more compact.
They also have a double cutting insert that goes into the hose, and between the rubber liner and the braid for whatever that's worth..
They also have a double cutting insert that goes into the hose, and between the rubber liner and the braid for whatever that's worth..
#22
Thanks for the input guys.
Im leaning towards this stuff:

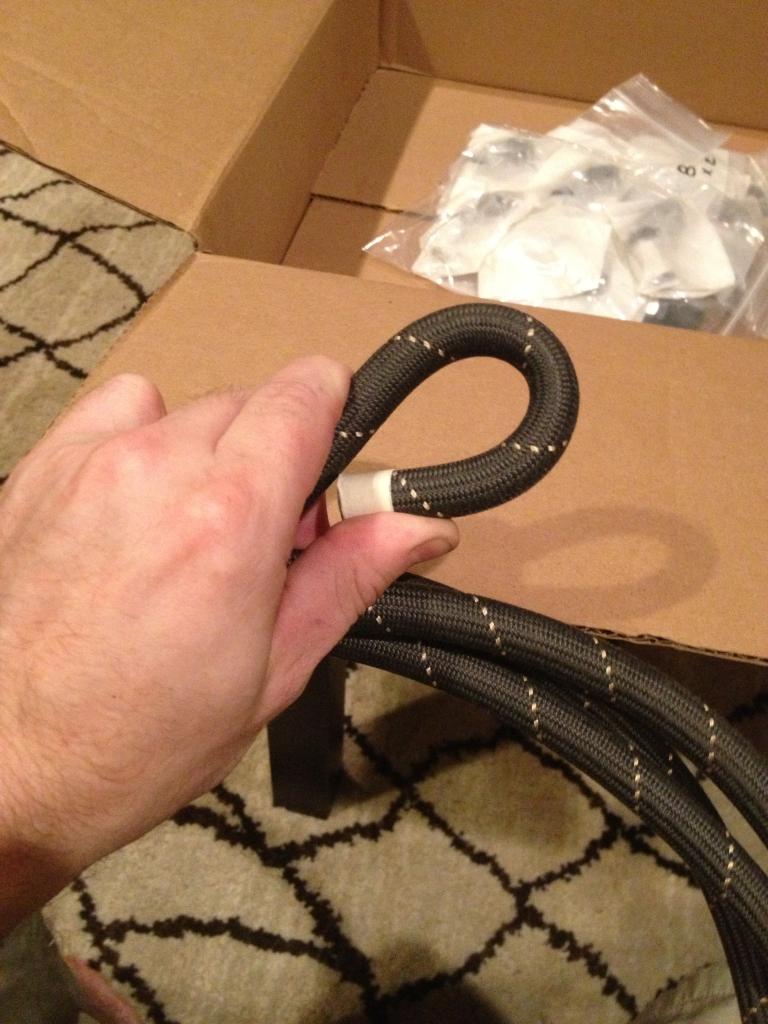

Goodridge G-Line XF 910.
Carbon impregnated PTFE, kevlar fabric braid, light weight, and around $14/ft for -6 and $19 for -8.

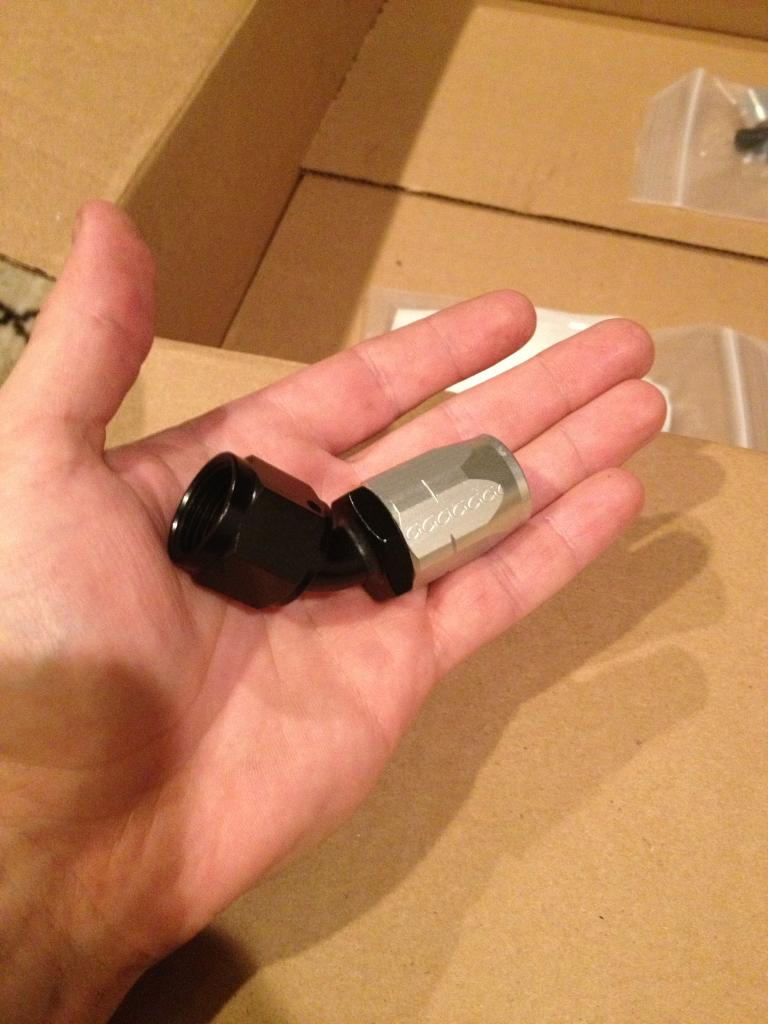

Also the "olive-less" reusable fittings they make for this hose is reasonable at around $15-20/fitting.
I think Ill give it a shot.
Interestingly, I see websites listing the hose for like $30-40/ft, then most fall around the low $20s, but this plumbing monkey site has the best deals by far.
910-06 - G-Line XF Series Aramid Braided Hose -
Im leaning towards this stuff:
Goodridge G-Line XF 910.
Carbon impregnated PTFE, kevlar fabric braid, light weight, and around $14/ft for -6 and $19 for -8.
Also the "olive-less" reusable fittings they make for this hose is reasonable at around $15-20/fitting.
I think Ill give it a shot.
Interestingly, I see websites listing the hose for like $30-40/ft, then most fall around the low $20s, but this plumbing monkey site has the best deals by far.
910-06 - G-Line XF Series Aramid Braided Hose -
