Fender Vents Actually work???
02-03-05, 11:58 AM
#1
The Laser Man
Thread Starter
Fender Vents Actually work???
Hey guys~~~ I know the Fender Vents work.... but does anyone have a pic of how the air goes through the ducts out to the vent??? I know there is a pic somewhere in this forum but I searched and searched and I can't find one.... help me out!!~~
Thanks~~~
Thanks~~~
02-03-05, 01:43 PM
#3
?????????????
Join Date: Sep 2003
Location: Greece
Posts: 512
Likes: 0
Received 0 Likes
on
0 Posts
In theory yes,they are supposed to work,but in reality i really doubt it.There are some cables that block most of the heated air going to the duct passage.If you want to be sure that the air from the oil coolers escapes,put some grilles behind the plastic fender(thats what i did).
02-03-05, 02:56 PM
#4
I
Join Date: Jul 2004
Location: Pittsburgh
Posts: 599
Likes: 0
Received 0 Likes
on
0 Posts
if you every want to see just take your fender liner off and look.
previous owner of my car never put fender liners in when he installed the new bumper (freakin idiot) so I had to order a set, the fender liners have a tube that connects to the vent and goes up around the fender into the engine bay, in reality I dont know if it really works but whatever :P
previous owner of my car never put fender liners in when he installed the new bumper (freakin idiot) so I had to order a set, the fender liners have a tube that connects to the vent and goes up around the fender into the engine bay, in reality I dont know if it really works but whatever :P
02-03-05, 05:03 PM
#5
Full Member
Join Date: Dec 2004
Location: Las Vegas, NV
Posts: 52
Likes: 0
Received 0 Likes
on
0 Posts
Fender vents pic...
Get the book "RX-7, Mazda's Legendary Sports Car", by Yamaguchi and Dinkel.
(Likely out of print now)
On page 67 ia a line drawing showing how the oil coolers are vented through the plastic fender well vent duct to the side quarter panel ducts. YES, they are functional.
This book is my #1 coffee table book and is THE difinitive guide to the development of the 3rd generation RX-7. It illustrates the truly advanced engineering of the car in great detail and beautiful color photos.
Perhaps some engineer/fabricator among us could figure out how to use the oil cooler fender vents to help vent the backside of the radiator too - using flexible brake vent hose tubing, etc..
I'll try to go to a friend and scan the pic and put it up in this forum.
(Likely out of print now)
On page 67 ia a line drawing showing how the oil coolers are vented through the plastic fender well vent duct to the side quarter panel ducts. YES, they are functional.
This book is my #1 coffee table book and is THE difinitive guide to the development of the 3rd generation RX-7. It illustrates the truly advanced engineering of the car in great detail and beautiful color photos.
Perhaps some engineer/fabricator among us could figure out how to use the oil cooler fender vents to help vent the backside of the radiator too - using flexible brake vent hose tubing, etc..
I'll try to go to a friend and scan the pic and put it up in this forum.
02-03-05, 06:05 PM
#6
Call me gramps!
Originally Posted by 7Langit
Get the book "RX-7, Mazda's Legendary Sports Car", by Yamaguchi and Dinkel.
(Likely out of print now)
On page 67 ia a line drawing showing how the oil coolers are vented through the plastic fender well vent duct to the side quarter panel ducts. YES, they are functional.
This book is my #1 coffee table book and is THE difinitive guide to the development of the 3rd generation RX-7. It illustrates the truly advanced engineering of the car in great detail and beautiful color photos.
Perhaps some engineer/fabricator among us could figure out how to use the oil cooler fender vents to help vent the backside of the radiator too - using flexible brake vent hose tubing, etc..
I'll try to go to a friend and scan the pic and put it up in this forum.
(Likely out of print now)
On page 67 ia a line drawing showing how the oil coolers are vented through the plastic fender well vent duct to the side quarter panel ducts. YES, they are functional.
This book is my #1 coffee table book and is THE difinitive guide to the development of the 3rd generation RX-7. It illustrates the truly advanced engineering of the car in great detail and beautiful color photos.
Perhaps some engineer/fabricator among us could figure out how to use the oil cooler fender vents to help vent the backside of the radiator too - using flexible brake vent hose tubing, etc..
I'll try to go to a friend and scan the pic and put it up in this forum.
02-03-05, 06:11 PM
#7
accept no imitations™
Join Date: Mar 2001
Location: san francisco
Posts: 2,096
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by WaLieN
A friend of mine has that book, but it's all in Japanese. I wish they had an English translation of it.
Trending Topics
02-03-05, 06:22 PM
#10
Constant threat
Originally Posted by dgeesaman

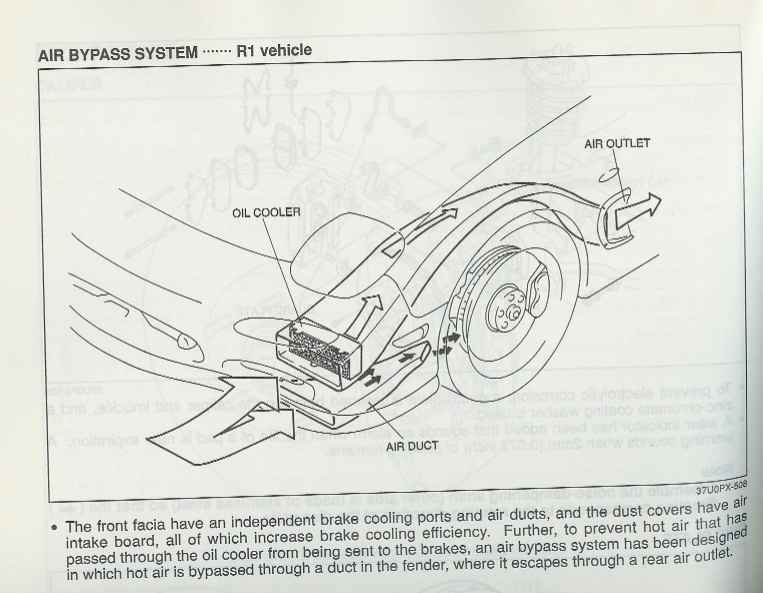

Here you go.
It's in the Mazda Service Highlights Manual. Very interesting book.
It's in the Mazda Service Highlights Manual. Very interesting book.
02-03-05, 09:54 PM
#11
Senior Member
Join Date: May 2001
Location: laurel, md usa
Posts: 297
Likes: 0
Received 0 Likes
on
0 Posts
02-04-05, 03:06 AM
#15
Call me gramps!
Originally Posted by neofreak
they do, I just gave one away as an xmas present.
Last edited by WaLieN; 02-04-05 at 03:10 AM.
02-04-05, 10:28 PM
#16
Senior Member
Join Date: May 2001
Location: laurel, md usa
Posts: 297
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by jimlab
Speaking of which... what in the hell happened to Ron? No posts since last year.
02-04-05, 10:40 PM
#17
Super Snuggles
Originally Posted by danny hahn
car must be working fabulously, everything running cool, nothing busted, not waiting on parts.
02-05-05, 04:22 PM
#18
Senior Member
Join Date: Jun 2003
Location: Minden, NV
Posts: 494
Likes: 0
Received 0 Likes
on
0 Posts
Since mazda already has a functional system to pull air through the oil coolers, I would definitly NOT cut the fender liner and put in a vent, even though it probably helps in cooling, pushing air into the wheel wells will very quickly increase lift.
They had a problem that relates to this when designing the C6, they wanted larger brake cooling ducts but pushing more air from the front of the car into the front wheel wells was adding excessive amounts of lift.
They had a problem that relates to this when designing the C6, they wanted larger brake cooling ducts but pushing more air from the front of the car into the front wheel wells was adding excessive amounts of lift.
02-05-05, 07:43 PM
#21
Super Snuggles
Originally Posted by luizajeff
Apexi drift car has several holes cut in the fender lining behind their coil coolers.
02-06-05, 03:57 AM
#22
Senior Member
iTrader: (1)
Join Date: Jan 2004
Location: seattle area
Posts: 555
Likes: 0
Received 0 Likes
on
0 Posts
has anyone put supplemental small hi volume fans in strategic positions to draw out more of the underhood hot air or draw in more cool air.
saw a 3" blower is pegasus racing that could be used to help air flow.
they have different inlet ducts as well.
http://www.pegasusautoracing.com/Pro...asp?RecId=2771
http://www.pegasusautoracing.com/Pro...asp?RecId=2772
Ive been thinking of ways to use this type of fan with an inlet duct to funnel air into engine well or the same to draw hot air out using side fender vents.
chuck
saw a 3" blower is pegasus racing that could be used to help air flow.
they have different inlet ducts as well.
http://www.pegasusautoracing.com/Pro...asp?RecId=2771
http://www.pegasusautoracing.com/Pro...asp?RecId=2772
Ive been thinking of ways to use this type of fan with an inlet duct to funnel air into engine well or the same to draw hot air out using side fender vents.
chuck
02-06-05, 01:41 PM
#24
?????????????
Join Date: Sep 2003
Location: Greece
Posts: 512
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by EpitrochoidMan
Since mazda already has a functional system to pull air through the oil coolers, I would definitly NOT cut the fender liner and put in a vent, even though it probably helps in cooling, pushing air into the wheel wells will very quickly increase lift.
They had a problem that relates to this when designing the C6, they wanted larger brake cooling ducts but pushing more air from the front of the car into the front wheel wells was adding excessive amounts of lift.
They had a problem that relates to this when designing the C6, they wanted larger brake cooling ducts but pushing more air from the front of the car into the front wheel wells was adding excessive amounts of lift.
Thats interesting..But why mazda gave up the "air through fender method",and went with vents holes to the fender liner in the RX8?
