FD engine install took forever today
Tonight, or shall I say all day today, with the help of Wael El-Dasher, I fianally got around to installing the Pineapple-built engine in my FD. It was more difficult than taking the engine out.
Wael showed up at my house at around 11:00 AM but I was tied up with a legal matter until 12:00PM. We ordered some take-out Chinese food for lunch and then started on the engine install at around 1:30PM.
Having never done a clutch job, it took us about an hour or more to install the clutch and the transmission on the engine. We, actually Wael did call Rob at Pineapple Racing, Derrick at Corksport and Dave at KD Rotary to clarify some questions about alignment of the clutch.(BTW, if you are a tuner, take note: these are all nice guys who are more than willing to give advice over the phone for free. Wael commented that they should have 1-900 phone numbers for advice
). Some of the time was spent looking for the sixth bolt for the clutch cover which was a real pain. We scoured the garage floor for that bolt for about 30 minutes. I made a mental note to myself to always store bolts in little containers instead of leaving them on the floor.
Once the trasmission was mated to the engine, we spent some time transferring all the little parts off the old engine to the new as I had neglected to do this before Wael showed up. I must thank him for being patient with me. But these activities are more fun and go better when doing it with a friend.
The actual install of the engine started at 6PM.
Everything was going smoothly until the rear end of the UIM started hitting the firewall. However, we needed to push the engine back further in the engine bay to line up the engine mounts with their right ful places in the subframe. We tried to lower the engine, tilting it up or down and pushing it backwards but the clearance was not there.

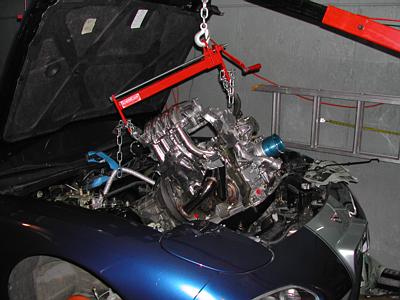

We ended up removing the UIM and the LIM and attaching the chain of the load leveler directly to the engine block using a bolt for the LIM. This gave us enough room in the back of the engine to clear the firewall. And poof, the enigine mounts popped right into the indents in the subframe.
Wael suggested that we not try to mate the drive shaft to the trans so I let the drive shaft hang in the breeze. I will have to unbolt the drive shaft from the differential tomorrow to insert the drive shaft into the trans.
We got finished at around 9:30PM. We were both pooped but Wael drove home to CT.

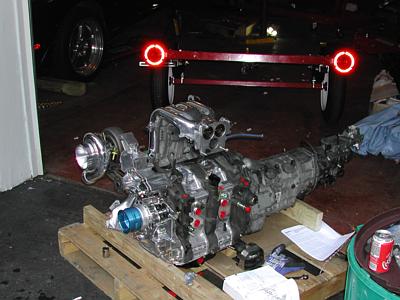

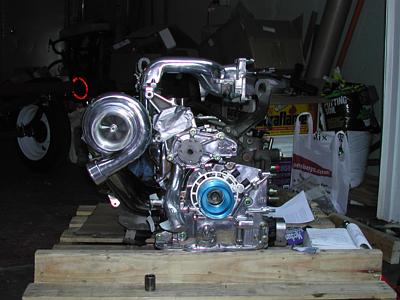

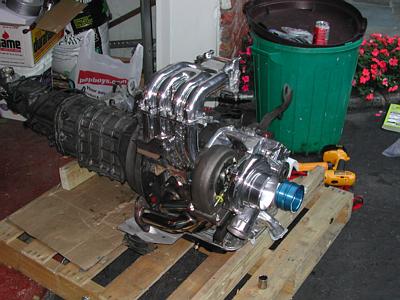

Here are some pics I took of the engine.
http://photos.yahoo.com/bc/apexseven...c=ph%26.view=t
http://photos.yahoo.com/bc/apexseven...c=ph%26.view=t
http://photos.yahoo.com/bc/apexseven...c=ph%26.view=t
http://photos.yahoo.com/bc/apexseven...c=ph%26.view=t
Do not mind the Turbo as it was just temporarily bolted to the manifold for a photo op.
Ed
