FD door locks
#1
Full Member
Thread Starter
Join Date: Feb 2009
Location: Pace, Fl
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
FD door locks
My son wrote me that his driverside door lock pretty much doesn't unlock any more. I did some searching for replacement locks and didn't find any. Does anyone know of a source for locks? thanks..
#3
Rotary Enthusiast
iTrader: (30)
#4
living legend
Join Date: Sep 2008
Location: Shellharbour, Australia
Posts: 41
Received 0 Likes
on
0 Posts
If you dont mind coughing up for the postage from Australia, cannot recommend Drew Tarrant (sir20b) enough. http://sir20b.com.au/
#5
Full Member
Thread Starter
Join Date: Feb 2009
Location: Pace, Fl
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Thanks Berkyrself. I did a bunch of seaches and only junk came up.
What about the Trunk? I guess he will just have two keys or can it be
changed to accept the new keys? I guess just leave it alone.
thanks
What about the Trunk? I guess he will just have two keys or can it be
changed to accept the new keys? I guess just leave it alone.
thanks
#7
Full Member
Thread Starter
Join Date: Feb 2009
Location: Pace, Fl
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Ok, I'm retarded...
I need to worry about the ignition not the trunk, its got to be old age....
Is it possible that the problem is the key is worn out, not the lock?
He is able to get the passanger side open, but not the drivers side.
Maybe the driver side is worn a little and compined with the key being worn it won't unlock.
duder
I need to worry about the ignition not the trunk, its got to be old age....
Is it possible that the problem is the key is worn out, not the lock?
He is able to get the passanger side open, but not the drivers side.
Maybe the driver side is worn a little and compined with the key being worn it won't unlock.
duder
Trending Topics
#8
Lives on the Forum
iTrader: (83)
If you dont mind coughing up for the postage from Australia, cannot recommend Drew Tarrant (sir20b) enough. http://sir20b.com.au/
#10
Senior Member
iTrader: (1)
is the problem the lock itself or the fact that when you turn the key all the way counterclockwise to unlock the door it won't disengage the lock?
i found the problem on mine to be the somewhat flimsy rods and mechanism was not allowing the lock to fully disengage. do a search, there are better how tos on this than i can provide, but the essence is the rods flex enough that there is not enough travel available to push the unlock mechanism enough to trip the lock.
there is a fairly simple how to on this that worked for me.
i found the problem on mine to be the somewhat flimsy rods and mechanism was not allowing the lock to fully disengage. do a search, there are better how tos on this than i can provide, but the essence is the rods flex enough that there is not enough travel available to push the unlock mechanism enough to trip the lock.
there is a fairly simple how to on this that worked for me.
#11
Lives on the Forum
iTrader: (83)
Yea I checked on mine today. The action in the interior door locks in my car are very hard. I think this is due to something needing a cleanup and lube I dunno. I did fix a problem I was having with the exterior door lock not engaging. I just bent it a little straight to increase the reach of the rod and now the door locks/unlocks fine.
#12
Full Member
Thread Starter
Join Date: Feb 2009
Location: Pace, Fl
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
I'm only relaying what my son wrote me. I beleive the key doesn't turn and he has bent at least one key and broken another. They looked well worn and then they made a copy of one. Well the copy is then just a bad copy.
I'm thinking that it maybe cheaper for him to try and get a new key made from the VIN. I would guess he should go to the local Mazda dealer for it?
I'm not sure what the common failure is, the key or the lock?
thanks dudes!
I'm thinking that it maybe cheaper for him to try and get a new key made from the VIN. I would guess he should go to the local Mazda dealer for it?
I'm not sure what the common failure is, the key or the lock?
thanks dudes!
#13
I'm only relaying what my son wrote me. I beleive the key doesn't turn and he has bent at least one key and broken another. They looked well worn and then they made a copy of one. Well the copy is then just a bad copy.
I'm thinking that it maybe cheaper for him to try and get a new key made from the VIN. I would guess he should go to the local Mazda dealer for it?
I'm not sure what the common failure is, the key or the lock?
thanks dudes!
I'm thinking that it maybe cheaper for him to try and get a new key made from the VIN. I would guess he should go to the local Mazda dealer for it?
I'm not sure what the common failure is, the key or the lock?
thanks dudes!
But i also couldnt lock the door from outside with the key, but only sometimes. So i put out my lock and cleaned it with WD40. But be carefull when you put out the lock - there is a small metal ball inside, dont lose it. I recommend to put it carefully out, soak it up with WD40 ( or similar ) and put it back together for a try.
I think i have some pictures somewhere, have to search for it...
#14
I'm the Juggernaut BITCH!
iTrader: (7)
Ray Crowe is definitely the way to go
I'm only relaying what my son wrote me. I beleive the key doesn't turn and he has bent at least one key and broken another. They looked well worn and then they made a copy of one. Well the copy is then just a bad copy.
I'm thinking that it maybe cheaper for him to try and get a new key made from the VIN. I would guess he should go to the local Mazda dealer for it?
I'm not sure what the common failure is, the key or the lock?
thanks dudes!
I'm thinking that it maybe cheaper for him to try and get a new key made from the VIN. I would guess he should go to the local Mazda dealer for it?
I'm not sure what the common failure is, the key or the lock?
thanks dudes!
#15
Full Member
Thread Starter
Join Date: Feb 2009
Location: Pace, Fl
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
One of my other sons removed the lock and said the lock works fine, and the problem is a plastic piece that attaches to the lock. It sounds like its a switch, because it has wires on it. He says it is cracked and moves around a little. I guess this must be something to do with power locks? I would think that the door lock itself would unlock the door. So how do the doors actually work?
thanks everyone!!
thanks everyone!!
#18
Full Member
Thread Starter
Join Date: Feb 2009
Location: Pace, Fl
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
My other son took it apart again and says it electric. There are two wires coming off the back of the lock. The door does not unlock when the keys is turned.
So either a switch or soleniod of some kind is probably bad.
So either a switch or soleniod of some kind is probably bad.
#20
7-itis
iTrader: (1)
Join Date: Aug 2004
Location: UPSTATE New York
Posts: 399
Likes: 0
Received 0 Likes
on
0 Posts
Those two wires should be for the light surrounding the keyhole. The lock mechanism itself is purely mechanical, if the car has actuators they should be down in the body of the door as they do take up some space (at least they do on mine).
#21
Full Member
Thread Starter
Join Date: Feb 2009
Location: Pace, Fl
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
OK, thats interesting. I have never noticed it light up, unless the light is burnt out. However what makes the light turn on? I need to find a wiring diagram and check this out. I think I have one on my personal computer.
thanks..
thanks..
#22
Full Member
Thread Starter
Join Date: Feb 2009
Location: Pace, Fl
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts

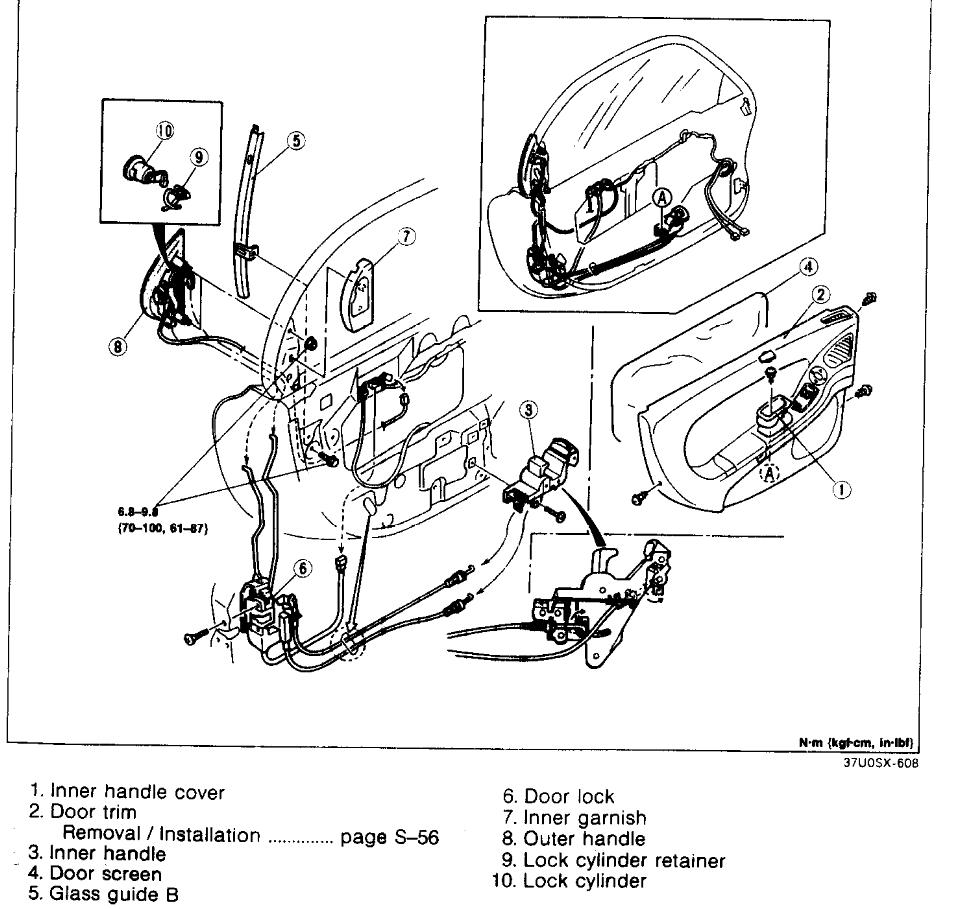

I found the drawing ... in the driver side door I see D108 connector labeled "Door Lock Actuator" I see D110 " Door Latch Switch" So no light. The lock is electric.
.... a new key
The lock maybe OK
Something is wrong with the switch or Actuator solenoid. Probably needs a blast of WD-40.
Duder
.... a new key
The lock maybe OK
Something is wrong with the switch or Actuator solenoid. Probably needs a blast of WD-40.
Duder
