Bitchn7

can someone show me a picture of the factory boost control solenoid (in its factory location) for an FD RX7, or more importantly, the wiring plug and its location?

thanks

arghx

iTrader: (3)

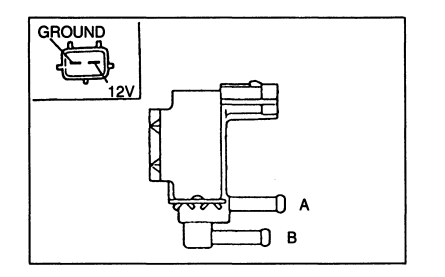

workshop manual page F-93





+12V comes through the main EGI power supply , ground is pulsed by the ECU . Precontrol controls boost before the secondary turbo comes online, wastegate controls boost after the secondary turbo comes online.

Bitchn7

thanks, found the plug I was looking for earlier.
